• Result display in histogram and list
• Applicable to normal optical power measurement
• Internal clock & fiber S/N editable
• User definable threshold setting



• Network/BER testing
• Power meter calibration
• Link loss simulation
• Optical margin analysis



• Channel power measurement
• Channel threshold detection
• In-band OSNR measurement



• Up to 18CWDM wavelengths, customized
• Dynamic Range up to 36dB
• Short dead zone:EDZ 1m, ADZ 4m
• Auto/Manual test and analysis



• Internal clock & fiber S/N editable
• Memory of 1000 test records
• Data Transfer to PC via USB
• USB power charging



• Interchangeable connectors: FC/SC/ST
• Dual-way power supply: 9V alkaline battery/AC adapter (optional)
• Pocketsize, lightweight and damp-dust-shock proof
• Power saving: Auto-off setting



• 6dB adjustable power output range
• Automatic wavelength identification/switch
• Remote reference value setting
• FTTx applicable



• Optical power monitoring (Auto power trace)
• Bidirectional loss test on single fiber
• ORL test
• Pass/Fail assessment



• Pocketsize, large LCD display
• Multi-wavelength measurement
• Display units: dB/dBm/mW/?W
• Link loss testing



• Easy to use, reliable
• Fast identification of deep buried, overhead and pipe fiber cable
• Built-in intelligent mode, knock in the measured cable screen showed positive and negative Pyramid strength; output the notification sound



• SM: 1310/1490/1550/1625nm (with filter), up to 45dB
• MM: 850/1300nm, 18/22dB
• Ideal for LAN/WAN/FTTx certification & trouble-shooting
• High precision measurement
• 1000 test records storage (Type C)
• USB/RS-232 data interface
• 8 hrs continuous operation/20 hrs standby
• Dust-shock proof (2m drop test)



• Lightweight, portable
• High precise measurement, large memory capacity (200 test curves)
• RS-232/USB data upload port
• PC software for measurement data analyzing and reporting
• Display measurement by graphics curves
• NiMH rechargeable battery support 10 hours continuous operations



• up to 3 functional modules, which is specially designed for FTTx/PON
• Flexible wavelength configurations to meet different requirements
• FTTX in-service testing
• PON OTDR identifies splitter and fiber-end
• 8.4 inch touch screen
• Fast power up with Windows CE
• Damp-dust-shock proof



• ITU-T G.650 recommended method for PMD characterization:
• Accurate total PMD, PMD coefficient
• Fully support 10G/40G/100G DWDM optical network upgrade test
• Compliant with G.650.2, EIA/TIA FOTP-124 & IEC-61941
• High dynamic range for long span measurement 40dB or 200Km
• Easy to use touch screen
• External ports: RG45x1, RS232x1, USBx2, VGAx1



• Full duplex multiparty call on single fiber
• Combines laser source and power meter
• High-quality voice signal
• Large internal memory: 4000 records
• PC software for data download and reporting



• Clear TFT LCD display (320*240)
• 8-channel measurement (1471-1611 nm)
• Result display in histogram and list
• Data Transfer to PC via USB
• 10 hours continuous operation

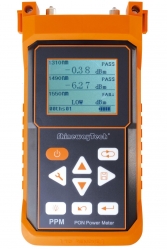

• Specially designed for FTTx/PON (B/E/G) applications
• Simultaneous Triple-play PON signals measurement: 1310/1490/1550nm (Voice/Data/Video)
• Pass/Warning/Fail assessment
• Pass-through test: Applicable anywhere on PON
• Optional Visible Fault Locator for macro bend detection and fiber identification
• Optional SM/MM Power Meter and Stabilized Laser Source

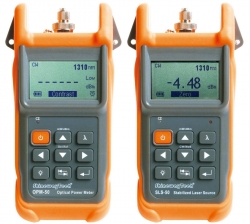

• OPM-50 Intelligent Optical Power Meter
• SLS-50 Intelligent Stabilized Laser Source
• Automatic Wavelength Identification
• Ideal for optical attenuation and loss measurements
• Continuity Verification and Fiber Link Evaluation



• OPM-15 Optical Power Meter
• SLS-21 Stabilized Laser Sources
• Applicable on singlemode/multimode fibers
• Quick response, no warm-up
• Interchangeable connectors: FC/SC/ST



• FTTx/PON applicable
• Optical power monitoring
• Bidirectional loss test on single fiber
• ORL test
• Pass/Fail assessment
• Storage of 1000 test records
• Data transfer to PC via USB
• USB power charging
