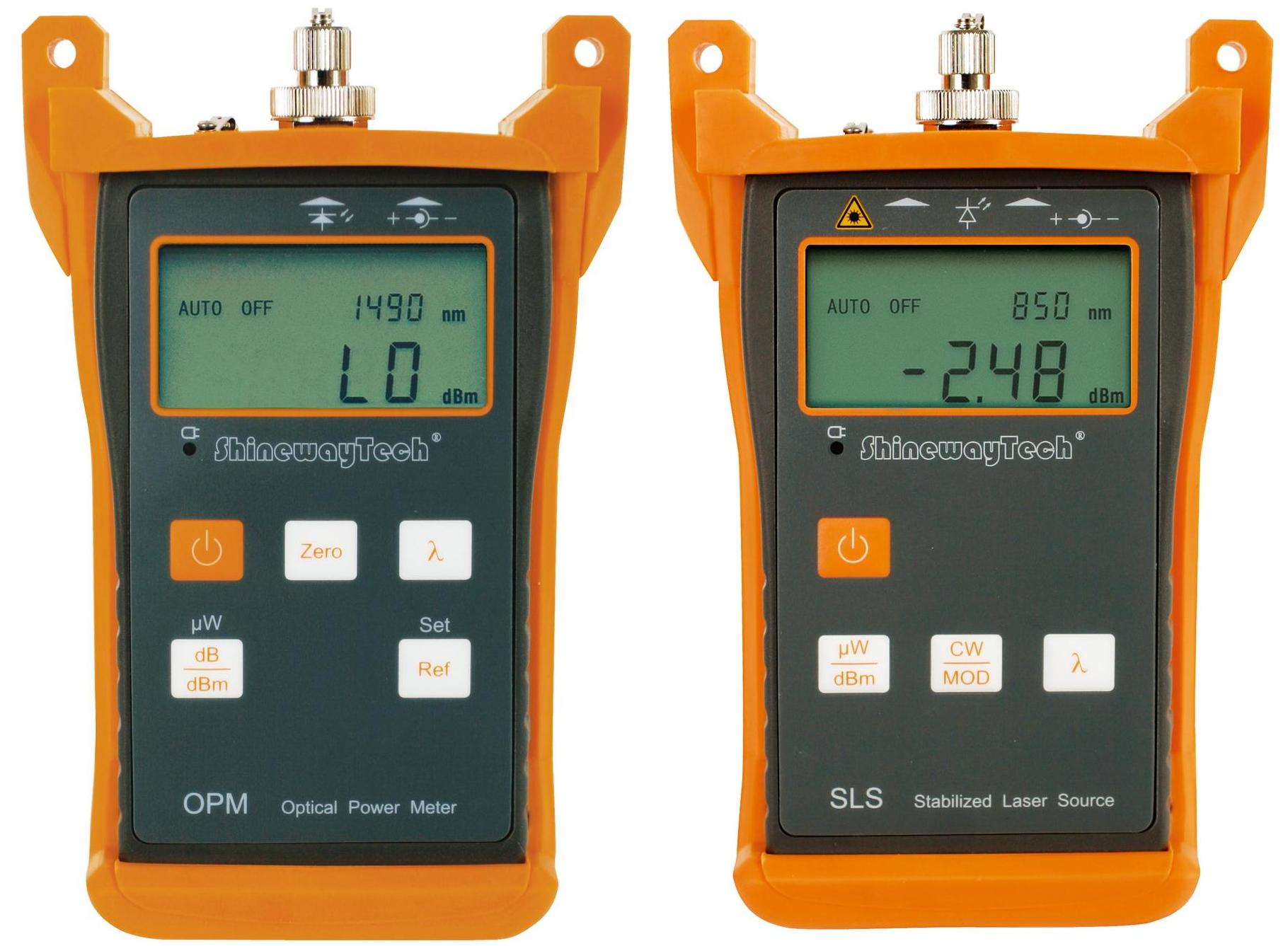

Set Power metru/ Sursa lumina laser masura pierderi fibra optica Shineway OPM-15/ SLS-21

Cod: Shineway OPM-15/ SLS-21




Brosura produs PDF, 0.57 Mb

Descriere

OPM-15 Optical Power Meter

OPM-15A(850/1300/1310/1490/1550/1625 nm, -70~+10 dBm)

OPM-15B(850/1300/1310/1490/1550/1625 nm, -50~+27 dBm)

  • Applicable on singlemode/multimode fibers
  • Microprocessor & linear amplifier ensure long-time accuracy
  • Quick response, no warm-up
  • Interchangeable connectors: FC/SC/ST
  • Dual-way power supply: 9V alkaline battery/AC adapter
  • Pocketsize, lightweight and damp-dust-shock proof
  • Power saving: Auto-off setting
  • MOD tones detection
  • Display Units: dB/dBm/mW
  • CE, FCC Certificates


SLS-21 Stabilized Laser Sources

SLS-21A(1310/1550nm)

SLS-21B(850/1300nm)

  • Pocketsize, easy to use
  • Fast response, no warm up
  • Damp, dust and shock proof design
  • Modulation in CW and modulated frequencies
  • Single/dual/triplex wavelength selectable· Interchangeable fiber-optic adapters (choice of FC, SC or ST)
  • High stabilized output of optical signal
  • Dual-way powering system
  • Auto off function conserving battery life
  • CE, FCC, FDA certificates


Accesorii standard

OPM-15 Optical Power Meter
  • OPM instrument
  • Connector(P/N: AC-CONN-FC-P-300),
  • Rubber boot(P/N:AC-RB-10A),
  • Battery (P/N: AC-BAT-10)
  • User Manual(P/N:AC-MAN-OTH),
  • RS232 cable(P/N:AC-CABL-RS), only for OPM-25
  • OPM Software CD(P/N:AC-CD-OPM),only for OPM-25
  • CE Certificate,Warranty Card,Calibration Certificate,
  • Simple soft bag(P/N:AC-PB-10),
  • Packing Box(P/N:AC-BOX-10).


SLS-21 Stabilized Laser Sources

  • SLS instrument
  • Connector(P/N: AC-CONN-FC-L),
  • Rubber boot(P/N:AC-RB-10A),
  • Battery (P/N: AC-BAT-10)
  • User Manual(P/N:AC-MAN-OTH),
  • CE Certificate,Warranty Card,Calibration Certificate,
  • Simple soft bag(P/N:AC-PB-10),
  • Packing Box(P/N:AC-BOX-10).


Optiuni recomandate

  • Connector (AC-CONN-SC-P-300)
  • Connector (AC-CONN-ST-P-300)
  • AC adaptor (AC-ADPT-15-UV)
