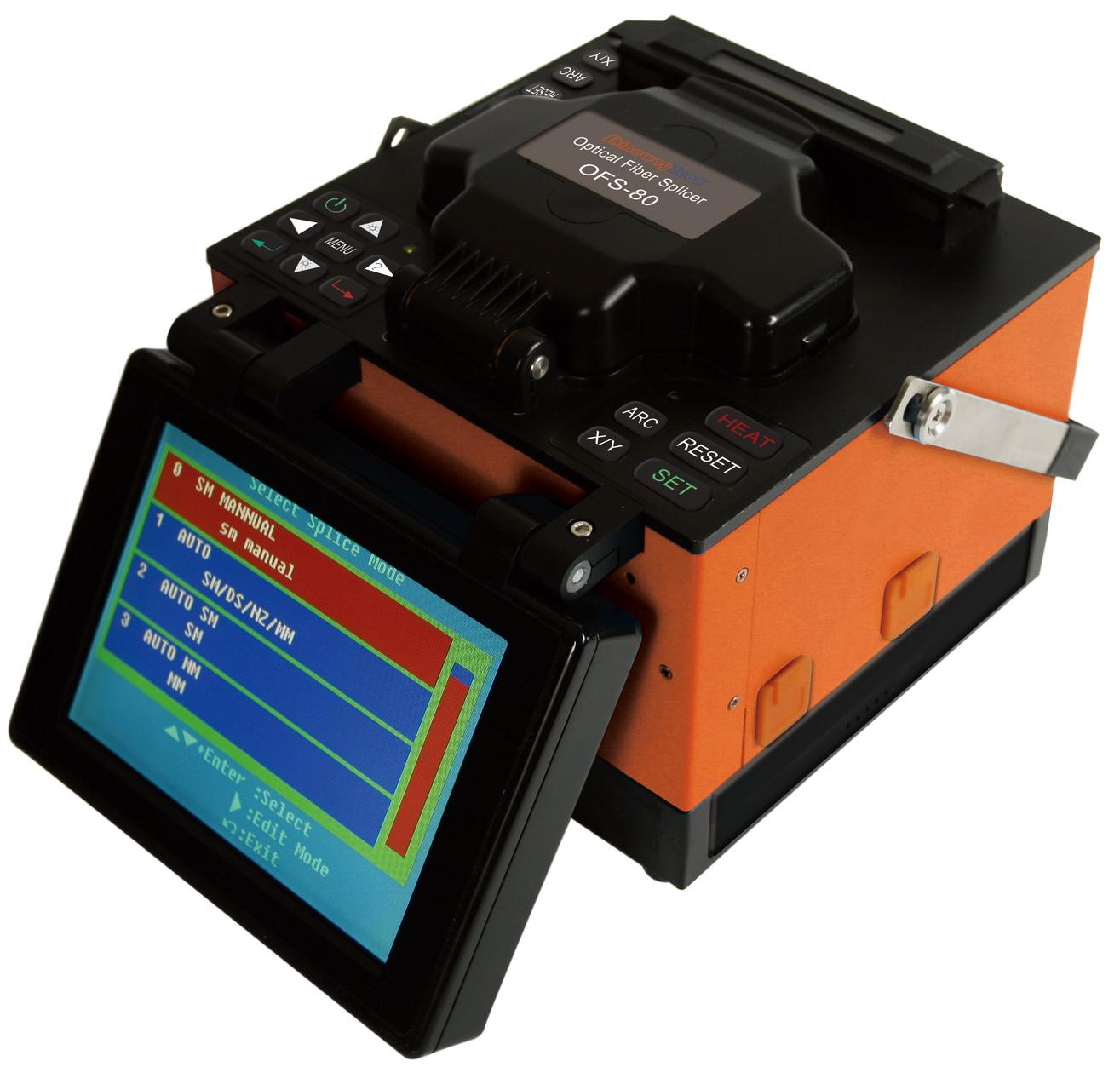

Aparat sudura fibra optica Shineway OFS-80

Cod: Shineway OFS-80




Brosura produs PDF, 0.77 Mb

Descriere

  • 5.7" Turn-over LCD screen for clear display Both X and Y axis display
  • Fiber core can be display clearly
  • Inner light to set fiber in dark environment Auto check fiber end-face
  • Auto calculate splicing loss
  • 9 seconds splice time and selectable heating mode
  • 3 hours fast recharge
  • 60 preset/user-definable splicing programs
  • Temperature and atmospheric pressure compensation function Arc power automatic optimization
  • Built-in event counter with electrode change indication
  • Splicing pause function and automatically resume when wind
  • shield close
  • Simple operation menu
  • Exterior operation capability at rugged conditions
  • Concave weatherproof cover & Max. wind velocity of 15m/s Easy cleaning and maintenance
  • Rigid multi-functional transporting case with transportation belt


Accesorii standard

  • Instrument
  • Power supply module
  • AC power cord
  • Spare electrodes (one pair)
  • Cooling tray
  • Screen cover
  • Carrying case
  • Warranty card
  • User manual (Hardcopy and CD)


Optiuni recomandate

  • Fiber Cleaver (AC-OFS-21)
  • 18 tools for fusion fiber (AC-OFS-08C)
