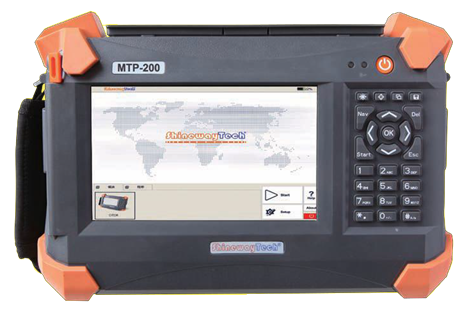

Shineway MTP-200-OSA Optical Spectrum Analyzer / Channel Analyzer

Cod: Shineway MTP-200




Brosura produs PDF, 0.34 Mb

Descriere

 Multi-Function and High Performance CWDM + DWDM Testing



?    S, C and C+L band measurement range

?    Up to 160 channels measurements

?    DWDM Channel spacing down to 50 GHz

?    ITU G.694.1 grid compliant (DWDM)

?    ITU G.694.2 grid compliant (CWDM)

?    High wavelength accuracy: ½ 50 pm

?    Dynamic range > 50 dB

?    PDL < 0.3 dB

?    Channel power measurement

?    Channel threshold detection

?    In-band OSNR measurement



Optimized Platform Performance



?    Lightweight, 2.1kg

?    7 inch touch screen

?    Windows user interface for easy operation

?    Damp-dust-shock proof

?    10 hours continuous operation

?    Supports WiFi / Bluethooth / GPS

?    Direct printing function(compatible with PCL printers)

?    Remote/local control by PC
