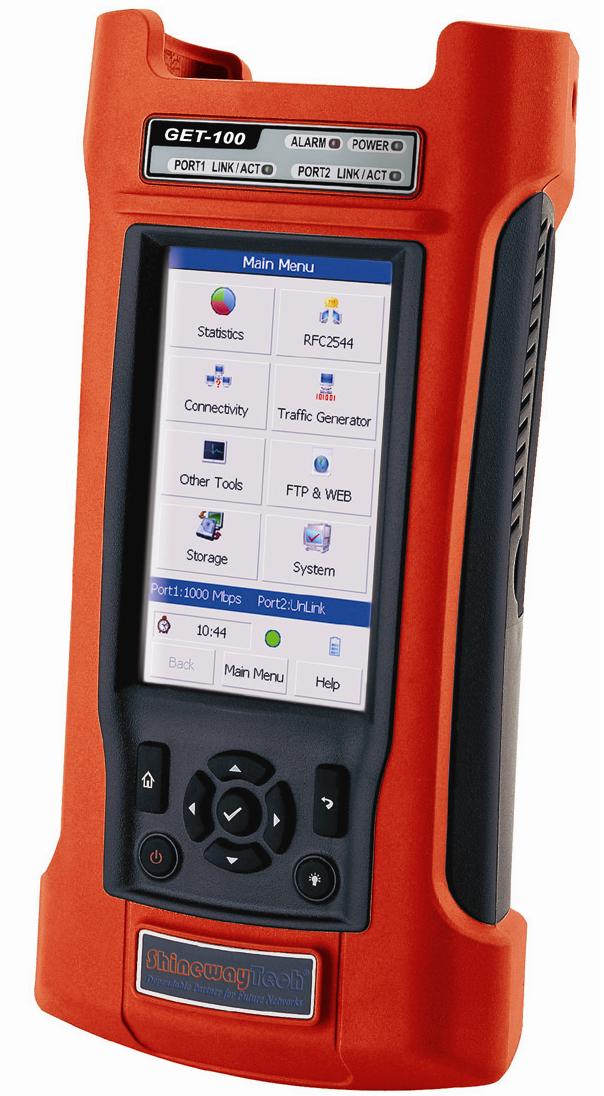

Tester Ethernet Gigabit/BER Shineway GET-100

Cod: Shineway GET-100




Brosura produs PDF, 0.66 Mb

Descriere

GET-100A

(Dual RJ45 ports: 10/100/1000Mbps BASE-T; Dual SFP ports: 1000BASE-SX/LX/ZX)



GET-100B

(RJ45 port: 10/100/1000Mbps BASE-T; SFP port: 1000BASE-SX/LX/ZX)



  • Electrical and optical ports with rate at 10/100/1000Mbps
  • Ergonomic, creative design, and easy to carry
  • Provides jacket, tie-in protection and hang rope, kickstand, suitable for different field work 4.3 inch LCD color touchscreen, smart navigation menu
  • Results can be shown graphically and numerically
  • IEEE 802.3, RFC1242, RFC2544 compliant
  • RFC2544 automated test, capable of fast network testing and locating the fault
  • Working state displayed by LED indicators, characters, icons on LCD
  • Large storage capability of settings and results Free upgradeable embedded software
  • Auto power save function



  • L1/L2/L3 BER Test
  • Full RFC2544 benchmark test: Throughput, frame loss rate, latency, back-to-back
  • Single and multi-stations traffic generator
  • Supports traffic filtration statistic at the receiver end
  • Support VLAN test function
  • Connectivity test: PING, TRACE ROUTE, ARP SCAN and etc Through, terminal mode test and frame length, frame type, and utilization stat.
  • Optical power test, optical module temperature, working current, voltage test etc
  • Cable VCT: Identifying short circuit, open circuit, cable length fault location etc
  • Service Disruption Time test
  • Provides test tools like blink port, sniff frame etc
  • Jitter Test
  • Manual or auto-timer test
  • Support USB flash drive to exchange the data with the tester
  • Test results uploaded, filed, conserved and printed by TestManagerPro software via USB cable or LAN cable connected to PC


Accesorii standard





Optiuni recomandate

  • Option 1           128 Stations Traffic Generator
  • Annex 1           1000Base-SX module (MM 850nm)
  • Annex 2           1000Base-LX module (SM 131Onm)
  • Annex 3           1000Base-ZX module (SM 1550nm)
  • Annex 4           Patch cord I     (Single mode)
  • Annex 5           Patch cord II    (Multimode)
