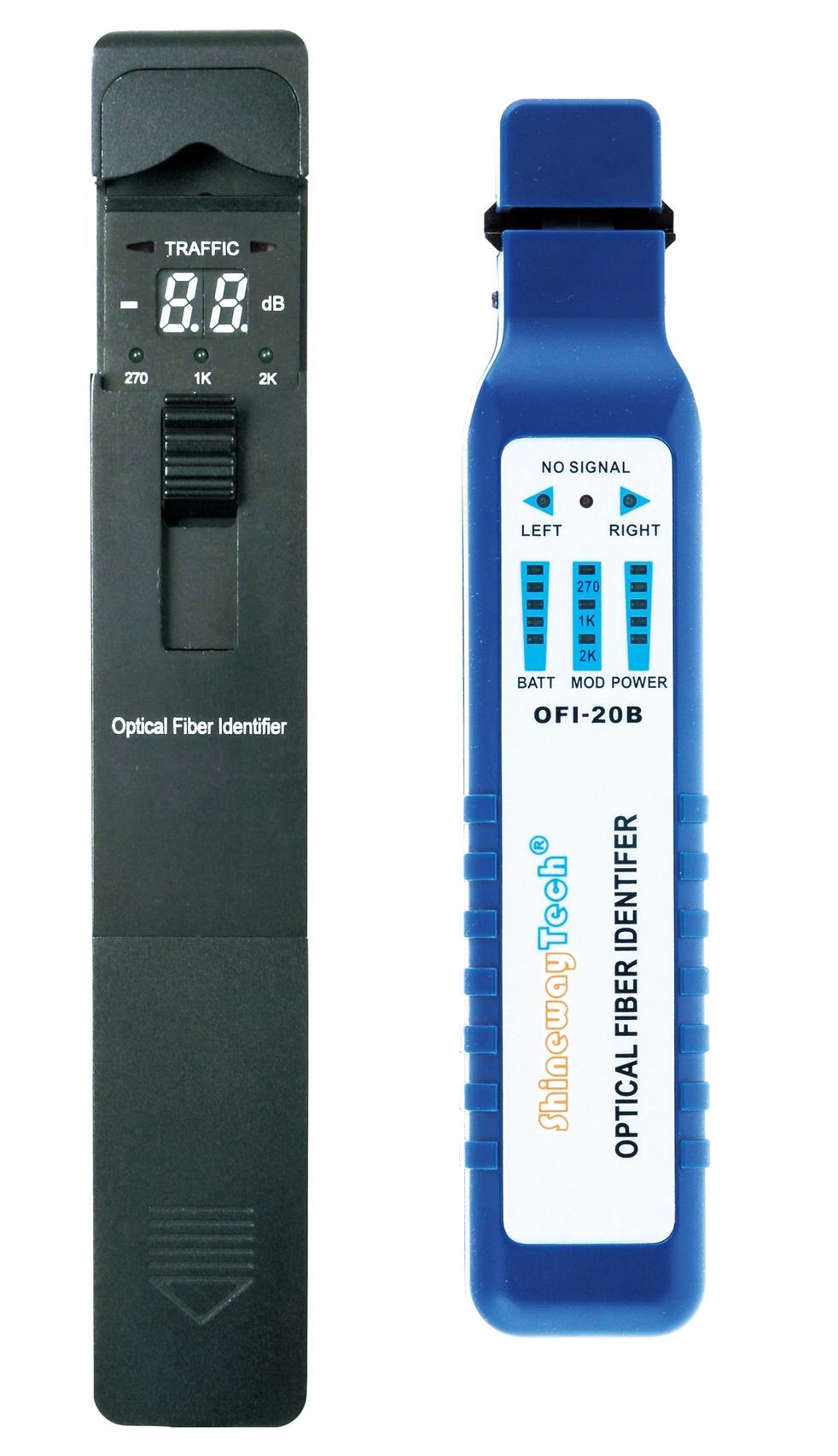

Identificator fibra optica Shineway OFI-20A/ OFI-20B

• Specially designed for FTTx/PON (B/E/G) applications
• Simultaneous Triple-play PON signals measurement: 1310/1490/1550nm (Voice/Data/Video)
• Pass/Warning/Fail assessment
• Pass-through test: Applicable anywhere on PON
• Optional Visible Fault Locator for macro bend detection and fiber identification
• Optional SM/MM Power Meter and Stabilized Laser Source



• 5.7" Turn-over LCD screen for clear display Both X and Y axis display
• Fiber core can be display clearly
• Inner light to set fiber in dark environment Auto check fiber end-face
• Auto calculate splicing loss
• 9 seconds splice time and selectable heating mode
• 3 hours fast recharge
• 60 preset/user-definable splicing programs



• up to 3 functional modules, which is specially designed for FTTx/PON
• Flexible wavelength configurations to meet different requirements
• FTTX in-service testing
• PON OTDR identifies splitter and fiber-end
• 8.4 inch touch screen
• Fast power up with Windows CE
• Damp-dust-shock proof



• Measures 2G/3G wireless network
• GSM900/1800, CDMA800/1900, TD-SCDMA, WCDMA, CDMA2000, WLAN 2.4G & WiMAX or user-defined band
• High-accuracy forward/reflected power, VSWR, Return Loss & load power measurement
• Monitor function & test data saving
• Standard N(F) connector supports various transmission cable & antenna
• USB & DB9 interface



• Fiber types: 250µm, 900µm, 2mm/3mm jacketed fiber
• Non-destructive detection
• Indication of signal presence, strength and direction
• CW/MOD tones detection
• Buzzer indication
• Handheld & sturdy
• CE, FCC certificates



• OPM-15 Optical Power Meter
• SLS-21 Stabilized Laser Sources
• Applicable on singlemode/multimode fibers
• Quick response, no warm-up
• Interchangeable connectors: FC/SC/ST



• Compatible with various connectors
• Dual channel video input (microscope) for easy viewing of male/female connectors
• Extended display on external monitor
• Audio & video recording
• Multimedia playback
• Direct read/write flash disk
• Large storage: 128MB internal memory, SD card up to 16GB
• Data transfer via USB2.0



• ITU-T G.650 recommended method for PMD characterization:
• Accurate total PMD, PMD coefficient
• Fully support 10G/40G/100G DWDM optical network upgrade test
• Compliant with G.650.2, EIA/TIA FOTP-124 & IEC-61941
• High dynamic range for long span measurement 40dB or 200Km
• Easy to use touch screen
• External ports: RG45x1, RS232x1, USBx2, VGAx1



• Lightweight, portable
• High precise measurement, large memory capacity (200 test curves)
• RS-232/USB data upload port
• PC software for measurement data analyzing and reporting
• Display measurement by graphics curves
• NiMH rechargeable battery support 10 hours continuous operations



• Peak power and Peak/Average Ratio measurement
• Burst power measurement
• CW power measurement
• Monitor function & test data saving
