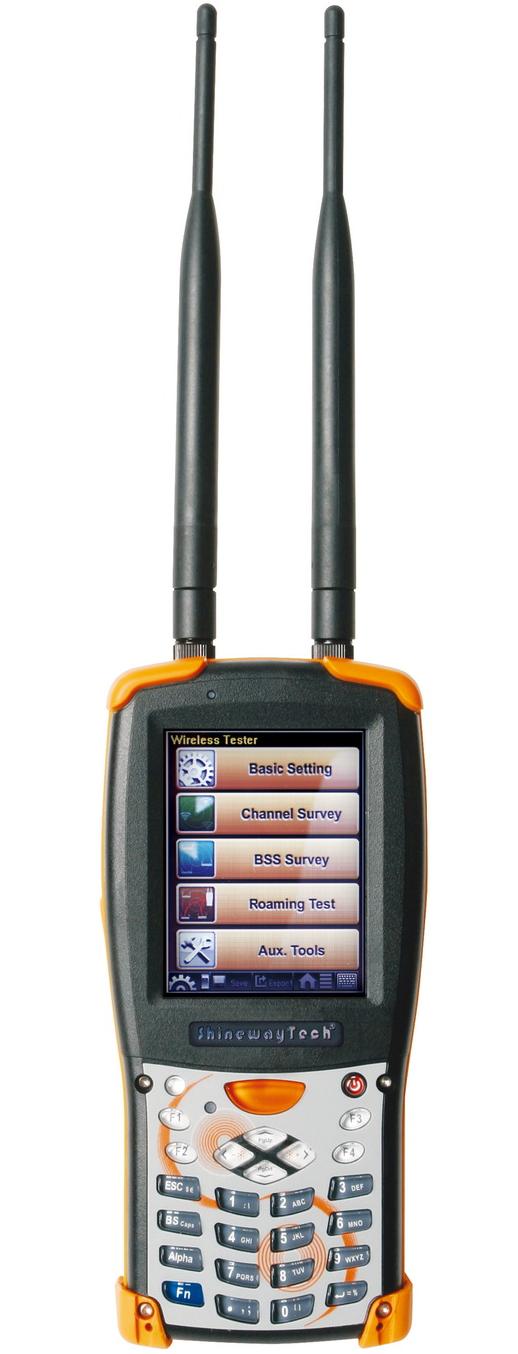

Analizor Wi-Fi retele wireless Shineway WFT-20

• Electrical and optical ports with rate at 10/100/1000Mbps
• Ergonomic, creative design, and easy to carry
• IEEE 802.3, RFC1242, RFC2544 compliant
• L1/L2/L3 BER Test
• Full RFC2544 benchmark test
• Support VLAN test function
• Jitter Test



• Easy to use, Reliable
• Available for Single mode fiber at the standard qualification of ITU-T-Rec. G.652
• Desktop type
• Easy to replace blade
• Able to rotate to change the blade position

• Inner light make the operation environment in the dark
• Wind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environment
• Display screen can be flip before and after, can conveniently multi-angle observe
• 76cm drop proof / ISTA certificate



• Pocketsize, large LCD display
• Multi-wavelength measurement
• Display units: dB/dBm/mW/?W
• Link loss testing



• 5.7" Turn-over LCD screen for clear display Both X and Y axis display
• Fiber core can be display clearly
• Inner light to set fiber in dark environment Auto check fiber end-face
• Auto calculate splicing loss
• 9 seconds splice time and selectable heating mode
• 3 hours fast recharge
• 60 preset/user-definable splicing programs



• ITU-T G.650 recommended method for PMD characterization:
• Accurate total PMD, PMD coefficient
• Fully support 10G/40G/100G DWDM optical network upgrade test
• Compliant with G.650.2, EIA/TIA FOTP-124 & IEC-61941
• High dynamic range for long span measurement 40dB or 200Km
• Easy to use touch screen
• External ports: RG45x1, RS232x1, USBx2, VGAx1



• Full duplex multiparty call on single fiber
• Combines laser source and power meter
• High-quality voice signal
• Large internal memory: 4000 records
• PC software for data download and reporting



• Multi-wavelength selectable: 650/850/1300/1310/1490/1550/1625 nm
• 650 nm visible laser source for break and macrobend detection
• Modulation in CW and modulated frequencies
• Modulation frequencies in 270,1K, 2KHz (1Hz@650nm)
• 1625nm laser source with optical power meter to measure upper limit loss in DWDM



• Peak power and Peak/Average Ratio measurement
• Burst power measurement
• CW power measurement
• Monitor function & test data saving



• Easy to use, reliable
• Fast identification of deep buried, overhead and pipe fiber cable
• Built-in intelligent mode, knock in the measured cable screen showed positive and negative Pyramid strength; output the notification sound
