• insulation: up to 400MO at 50V and 100V
• AC voltage measurement: 0 to 400V
• voltage indication before measurement of insulation: 0 to 600V AC/DC (blocking if U>25V)
• resistance: 0 to 40kO
• capacity: 0 to 4000nF
• current: 0 to 400mA AC/DC

• capacitance and dissipation factor test
• High accuracy and wide measurement range
• Automatic measurement process
• Measures capacitive, resistive or inductive test objects
• High accuracy ratio measurements
• Works with any standard capacitor or resistor value without any recalculations
• All standard UST and GST configurations



• A frequency range of down to 27 MHz within the basic device - suitable for the connection of the optionally available antenna UBB27_G3 (the scope of delivery includes a compensated antenna for 800 MHz up to 2.7 or 3.3 GHz).
• A calibrated extra AC-measurement output for the demodulated signal, and a scalable DC-output.
• HINT: If you only need to measure above 800 MHz the HF58B-r is the cheaper and better solution for you. Only with the antenna UBB27 (included in the kit HFE59B) you can in fact measure frequencies below 800 MHz (e.g. digital TV, TETRA, new GSM Channels in Europe).



• Power: 1.5kW, 3kW, 6kW or 9kW
• DC Voltage: 0 up to 1500V
• DC Current: 0 up to 510A
• Wide-range input and active PFC
• Operating modes: CV, CC and CP from 1 kW
• OVP and OTP
• programmable, remote-controlled exchangeable interface boards as IEEE488, RS-232, USB, CAN, Profibus and LAN



• Optimum for testing W-CDMA, CDMA, GSM, PDC, PHS, ETC and wireless systems
• A receiving antenna of your choice will be mounted
• simple type shielding box that may be used on a desk
• triple structure, i.e., radio wave absorber, copper plate and aluminum plate
• covers the frequency band of low frequency through 18GHz
• acrylic resin table for placing a test sample is provided, and this structure permits easy mounting of an optional receiving antenna

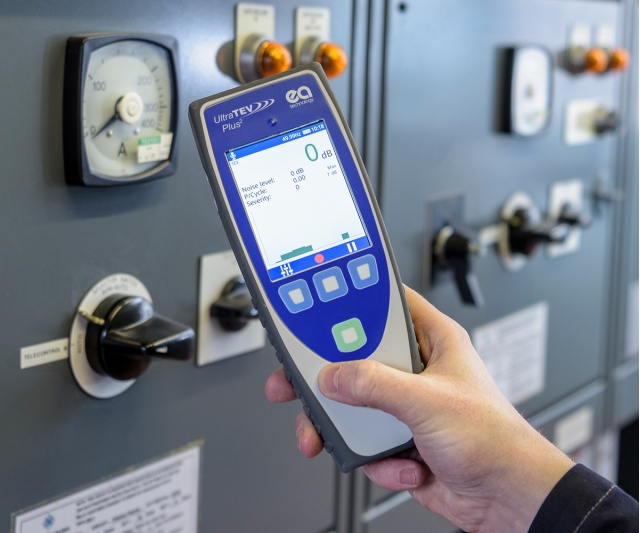

• The UltraTEV Plus is the most advanced PD detection instrument on the market.
• Menu-driven, backlit colour touchscreen and keyboard (can be used wearing gloves)
• Portable & rugged
• Compatible with all UltraTEV Plus+ accessories
• Long-life, rechargeable internal Lithium-Ion (Li-Ion battery)



• Improved sensor technology and adjustment options
• Increased operating temperature range of -20 to +50 ° C
• By up to 44% larger display area for better readability
• Red backlight for improved perception of alarm messages



• Absolutely non-destructive condition evaluation of PE / XLPE / paper-oil insulated cable systems
• Simple operation and automatic measurement procedures
• Three-phase parallel measurement for current and voltage - duration of a complete measurement 1 hour
• Extended dynamic range for IRC measurement for long cable segments
• Measurement of charging current during formation



• Customers can stay connected
• Fault location with no supply interrupt
• Reliable avoidance of incorrect excavations
• Fast and easy location of faults
• Can be used on straight or branched networks
• Handy size, easy to transport
• No pre-location required
• Accuracy in the decimetre range
• Sensitive to several specifi c gases and therefore suitable for any insulation material



• PD diagnosis under oscillating wave test voltage
• PD evaluation possibility and pattern recognition at the nominal voltage level
• Automatic Calibration and Joint location facility
• PD level measurement according to IEC 270 at a bandwidth of 150 ... 650 kHz
• Semi- and fully automatic PD analysing software for defect location with mapping feature
• Calculation of the cable capacitance and the tan delta value
• Simple to use and easy to handle menu-driven unit for operation of the test sequence
• Compact design; low weight
