• Telecentric lens CCD camera system
• Use Bosch or Festo pneumatic components, THK guideways and HEIDENHAIN scales
• Built-in 113 cutting edge shapes, automatic recognition
• Measuring modes: absolute, relative and incremental measurement



• Adjust the focus by ascending and descending the projector head, the stage doesn't move up and down
• Maximum workpiece weight 30kg



• Classic bridge structure, integrated workbench
• High precision air bearing
• Single key switches three axes between manual travel locking and fine adjustment



• Unit: µm, µin
• Automatic power off



• Resolution: 0.01mm/0.0005"
• Buttons: on/off, zero, mm/inch,
• ABS/INC, data hold, TOL, set



•



• Used as level and slope meter
• Aluminum frame
• Magnetic bottom
• The display flips over when the bottom faces up



• Meet DIN878
• Jeweled bearing
• Supplied with limit hands and bezel clamp



• Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement
• Keep preset data in memory after restart
• CR2032 battery, automatic power off (time is adjustable)



• Keep preset data in memory after restart
• CR2032 battery, automatic power off (time is adjustable)
• Data output



• Meet DIN2270 (except 2380-02, 2381-02, 2381-021)
• Jeweled bearing
• Carbide contact point

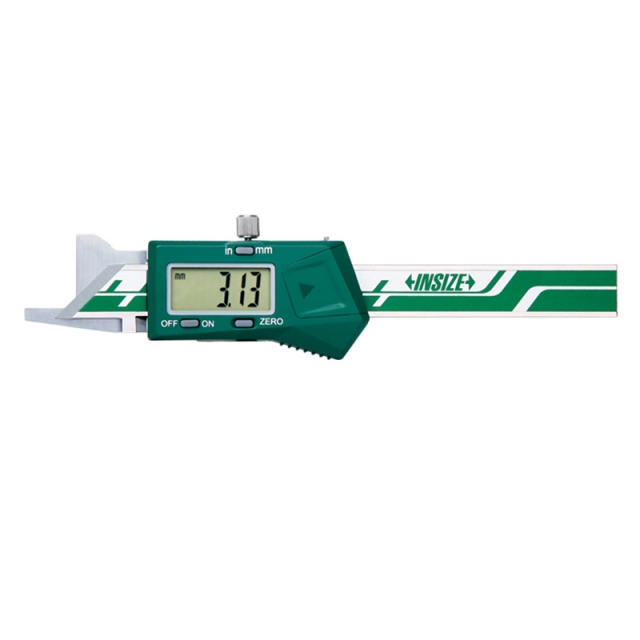

• Measure 15º/20º/30º/45º/60º chamfer dimension
• Buttons: on/off, zero, mm/inch
• Automatic power off, move the digital unit to turn on power



• Display radius value, no need to calculate
• Button function: on/off, zero, data preset, inch/mm
• CR2032 battery, automatic power off (time is adjustable)



• Carbide measuring faces
• Meet DIN863-1
• Supplied with setting standards (except 0-25mm and 0-1")



• Button function: on/off, set, mm/inch, ABS/INC
• Automatic power off
• Carbide measuring faces



• Measure outer diameter, inside diameter and hole center distance
• Total range of movable point: 10mm, effective range of movable point: ±2mm



• Carbide tipped scriber
• Made of stainless steel (except the base)
• Satin chrome plated scale



• Buttons: on/off, zero, mm/inch
• Automatic power off, move the digital unit to turn on power
• Meet DIN862 (except 0-500mm/0-20", 0-1000mm/0-40", 0-1500mm/0-60")



• Button function: on/off, zero, mm/inch, ABS, data preset
• Battery CR2032
• Made of stainless steel



• Meet DIN862
• Made of stainless steel
• Satin chrome plated reading surface
