Topographic Measurements | INSIZE3

• Quick positioning, suitable for mass measurement
• Optional accessory: dial test indicators (code 2880-02, 2880-02R, 2897-02, 2380-02, 2381-02, 2381-021)



• Maximum moving range of sliding table: 120mm
• Optional accessory: dial test indicator



• Motorized measurement is suitable for mass production inspection
• Power supply: 100~220V, 50/60Hz
• Optional accessory: dial test indicators



• Optional accessory: wireless transmitter code 7315-50M (receiver is needed)

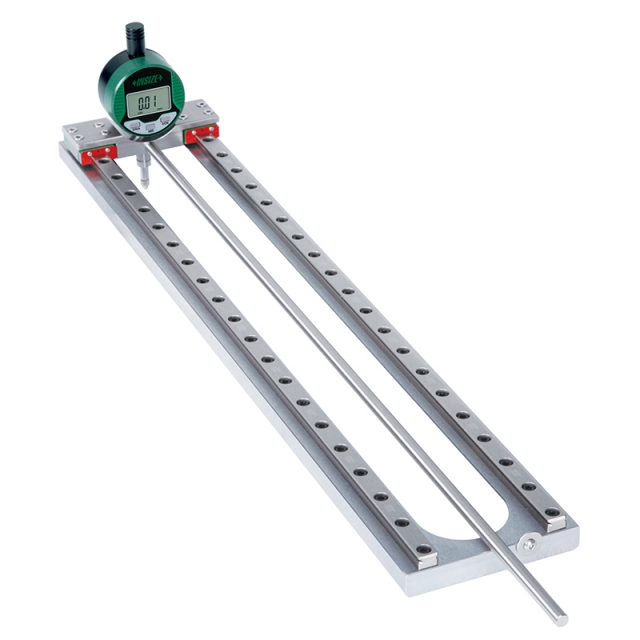

• Measure inner wall straightness of pipes
• Botton function: on/off, zero, data preset, change measuring direction, inch/mm, absolute/incremental measurement, max./mix./TIR measurement
• Keep preset data in memory after restart



• Optional accessory: wireless transmitter code 7315-50M (receiver is needed)

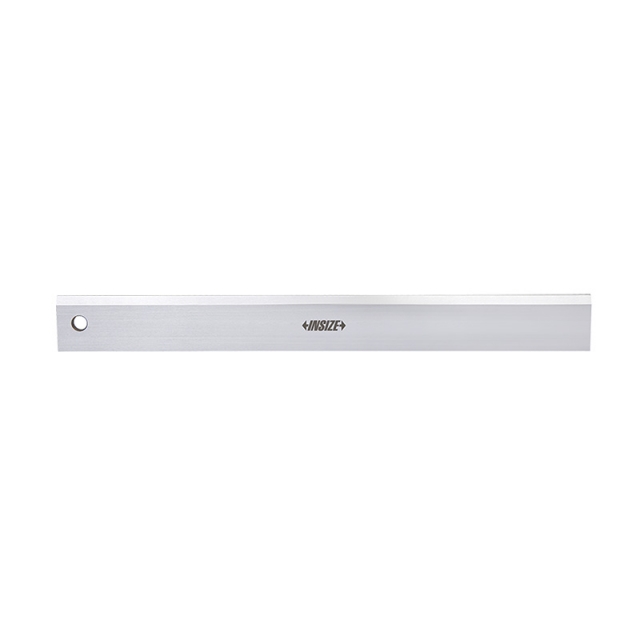

• Check flatness and for marking
• Made of tool steel



• Made of stainless steel, not hardened



• The straight edge can move and can be locked by the clamping screw
• Made of hardened stainless steel



• Made of hardened stainless steel



• Optional accessory: dial test indicators (graduation: 1µm or 2µm)



• Buttons: on/off, hold (keep the reading), zero, ABS (absolute and incremental measurement)

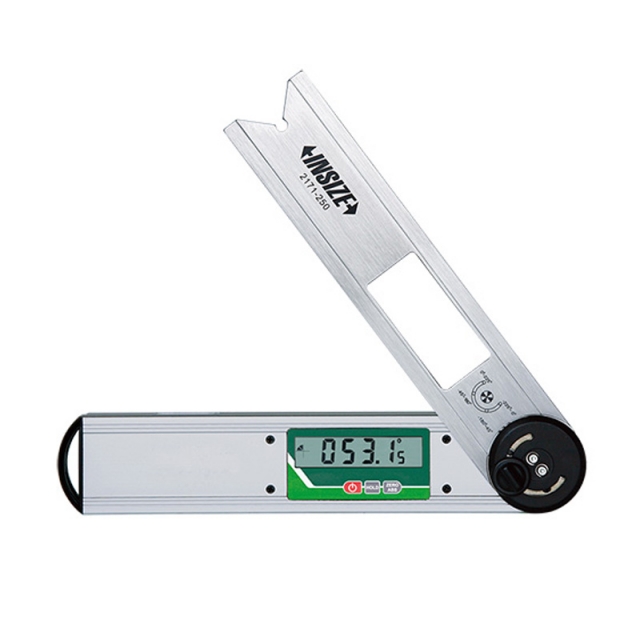

• Fix the locking screw at 4 positions for different measuring ranges: 0°~225°, -225°~0°, -45°~180°, -180°~45°
• Remove the locking screw for 360° range



• Suitable for setting horizontal and vertical mitre angles of cutting machines
• Buttons: ON/OFF, HOLD/SUP, SPR/CNR/MTR/BVL
• IP54 dust/waterproof



• Clockwise and counter-clockwise operation
• Memory of 250 results, can upload to the computer
• Back with magnet



• Quickly measure major, pitch and minor diameters of external thread
• Suitable for metric, inch, whitworth, NPT and BSPT



• For inspection of GO, NO-GO and depth of threads
• Can be for repair of thread defects

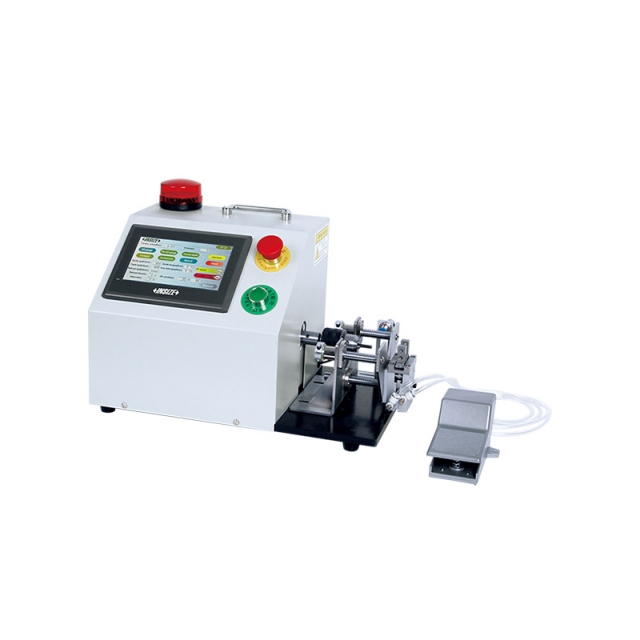

• Real-time display of torque, circles, OK and NG counts

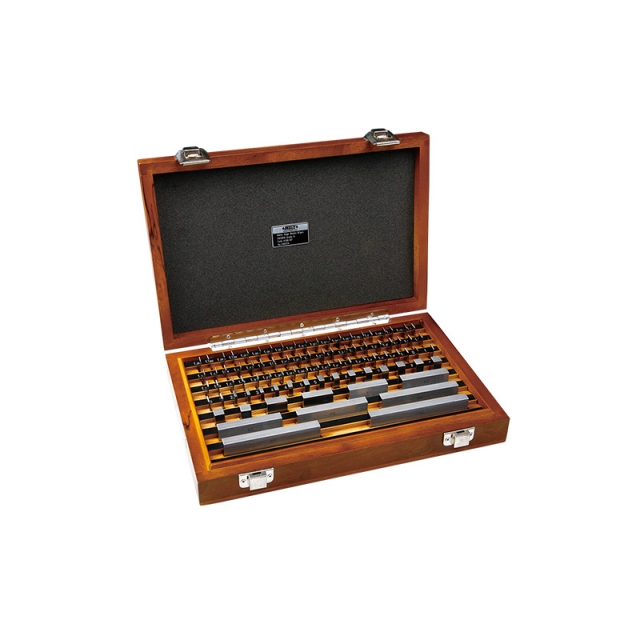

• Meet ISO3650/grade 2
• Supplied with manufacturer inspection certificate



• Made of ceramic, extremely wear resistance and corrosion resistance, excellent dimension stability
• Meet ISO3650
• Supplied with manufacturer inspection certificate



• Made of alloy steel
• Meet ISO3650
• Gauge blocks ≥125mm have clamping holes



• Measure the crest diameter of internal thread with nominal diameter larger than 2 3/8" (60.325mm) and less than 5 1/2" (139.7mm)
