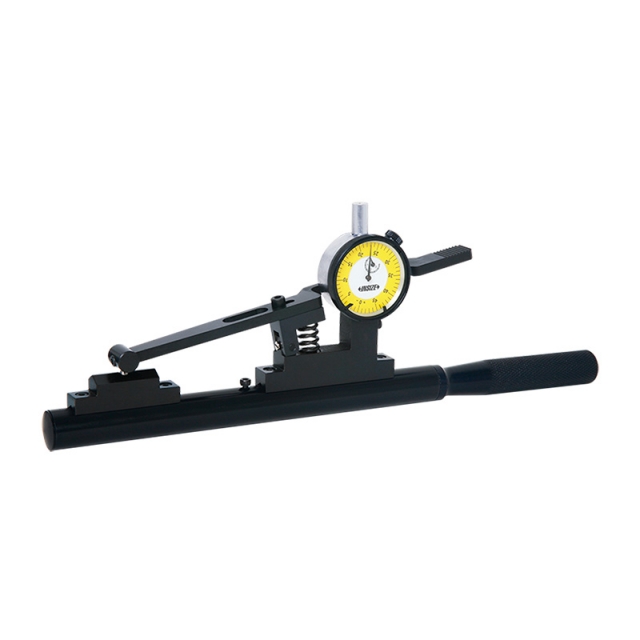

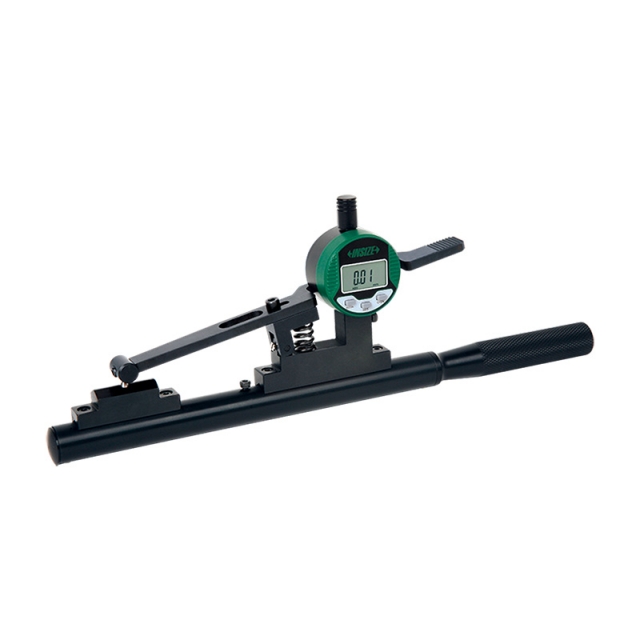

• Measure the height of rotary shouldered internal thread connections



• Measure the height of internal thread with nominal diameter less than 5 1/2" (139.7mm)



• Measure the taper of internal thread
• Digital indicator stroke: 25.4mm/1"



• Measure the pitch diameter of lead screw and external thread
• Ball tip diameter can be customized according to workpieces. Diameter of trapezoidal screw or external thread ball tips: ØD=0.5×pitch P/cos (thread angle α/2)
• Ball tips diameter ØD of ball screw is corresponding steel ball specification

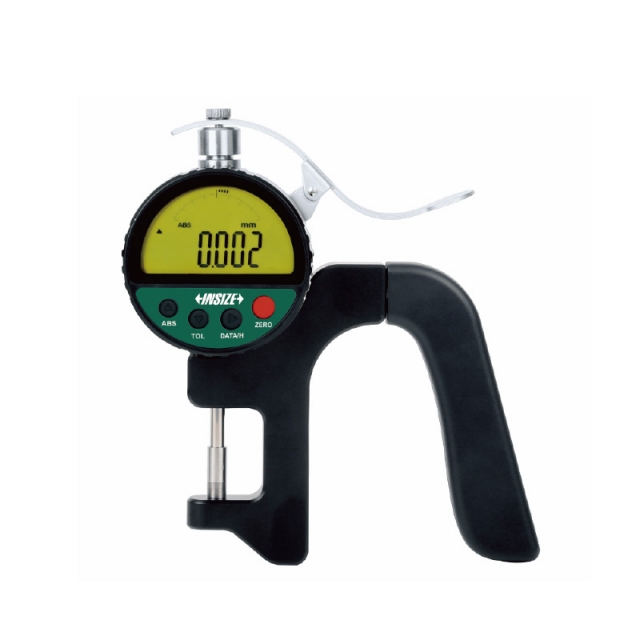

• Measure thickness of leather
• Buttons: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement
• Keep preset data in memory after restart

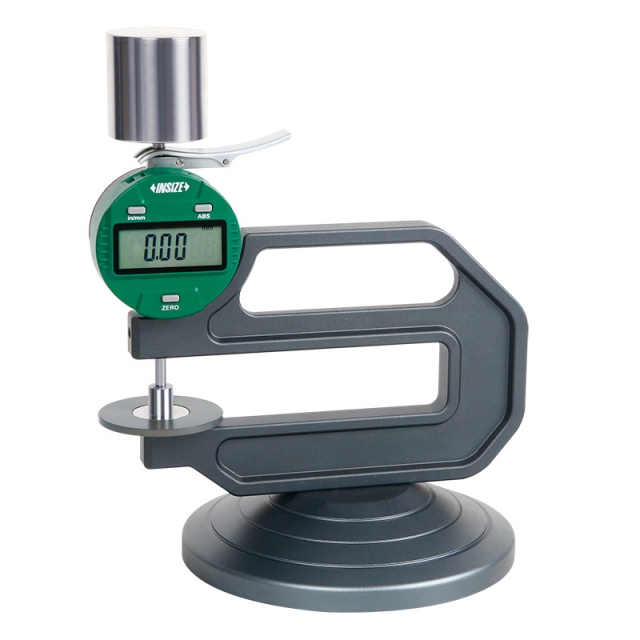

• Measure thickness of geomembranes
• Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement
• CR2032 battery, automatic power off (time is adjustable)



• Measure thickness of vulcanized rubber and plastic products
• Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement
• CR2032 battery, automatic power off (time is adjustable)



• Absolute encoder, the original data remains after power off
• Button function: on/off, zero, tolerance, absolute/incremental measurement, max./min./TIR, data preset, mm/inch, data output, data hold
• Reading in digital and analog
• Power: rechargeable battery, for 12 hours continuous working



• Reading in digit and analog
• Display can be rotated by 170°
• Button function: tolerance Go and No-Go display, data preset, max./min. measurement, data holding, inch/metric conversion, absolute/incremental measurement



• Reading in digit and analog
• Display can be rotated by 170º
• Button function: tolerance Go and No-Go display, data preset, max./min. measurement, data holding, inch/metric conversion, absolute/incremental measurement



• Button function: on/off, zero, mm/inch, measuring direction change, data preset, absolute/incremental measurement

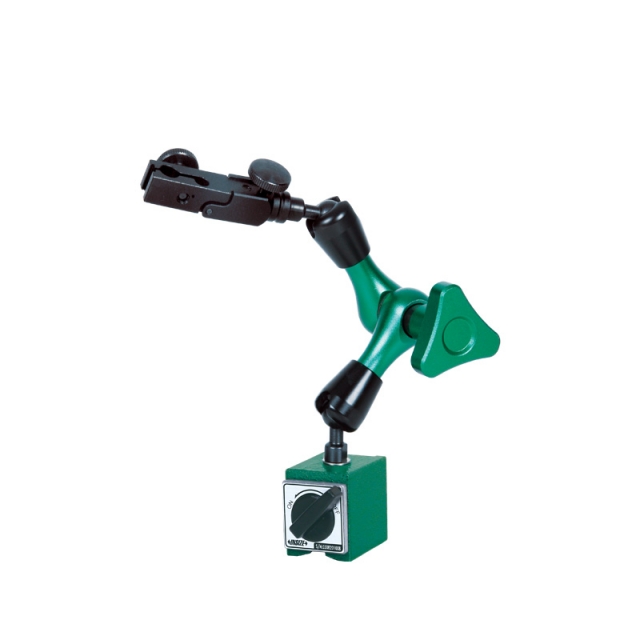

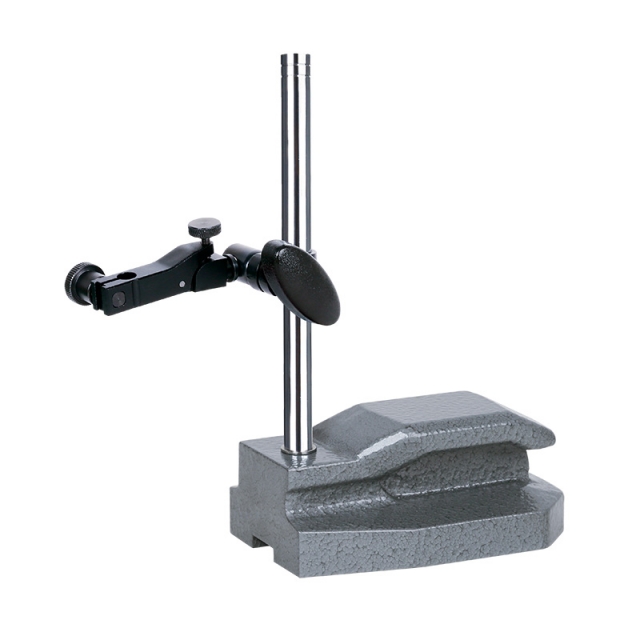

• Vertical travel of holder: 150mm
• Fine adjustment range: 2mm



• Non-magnetic and hardened base
• Suitable for granite surface plates or cast iron surface plates
• For 0.001mm and 0.01mm dial and test indicators



• For digital/dial indicators and dial test indicators



• IP54 dust/waterproof (when cap is lifted, no dust/waterproof)
• Absolute encoder, the original data remains after power off
• Automatic power off



• Built-in wireless transmission
• Transmission distance is 10 meters (under the condition of no obstruction and no electromagnetic interference)
• Linear ball bearings for ten million times use



• Button function: on/off, zero, data preset, inch/mm, coefficient set, measuring direction change
• Switchable high/low frequency measurement mode, high frequency mode is suitable for high speed moving of spindle and has large power consumption, low power consumption in low frequency mode
• Keep preset data in memory after restart



• Measure outside or inside chamfer height
• Suitable for diameter of bores≥6mm, chamfer angle ≥30° α
• Setting gauge is included



• To measure the wheel diameters of railway vehicles and metro trains
• Aluminum alloy ruler body, alloy steel measuring probe
• Data transmission, rotatable screen, automatic power off



• Measure radius of internal or external arcs
• Buttons: on/off, hold, mm/inch, s (select jaws), zero
• Display can be rotated by 320º



• Buttons: on/off, hold, mm/inch, s (select jaws), zero
• Measure radius of internal or external arcs
• Cylindrical measuring jaws, self-positioning
