Precision Straight Edges With Beveled Edge 7118-300

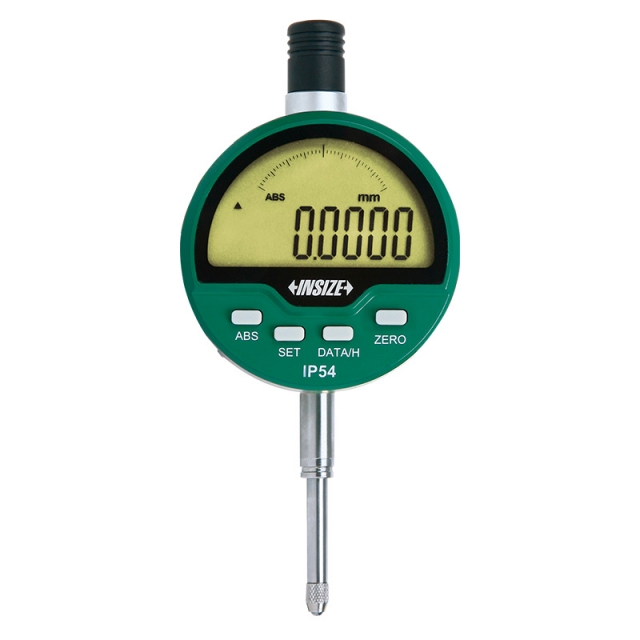

• IP54 dust/waterproof (when cap is lifted, no dust/waterproof)
• Absolute encoder, the original data remains after power off
• Automatic power off



• Button function: on/off, zero, mm/inch, measuring direction change, data preset, absolute/incremental measurement
• Vertical travel of holder: 150mm
• Fine adjustment range: 2mm



• Meet ISO3650/grade 2
• Supplied with manufacturer inspection certificate



• Motorized measurement is suitable for mass production inspection
• Power supply: 100~220V, 50/60Hz
• Optional accessory: dial test indicators

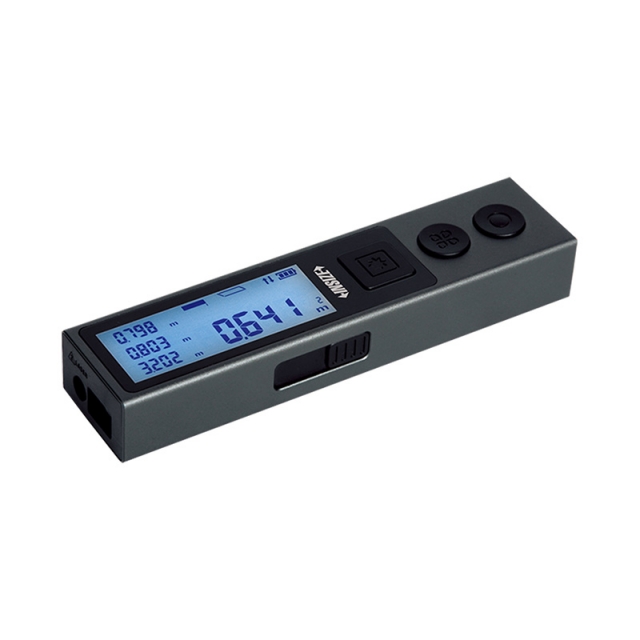

• Built-in bluetooth, transmission distance is 10 meters (no obstacles, no electromagnetic interference)
• Display with backlight
• Unit: m, ft, in, ft+in



• IP67 waterproof



• Measure the pitch diameter of lead screw and external thread
• Ball tip diameter can be customized according to workpieces. Diameter of trapezoidal screw or external thread ball tips: ØD=0.5×pitch P/cos (thread angle α/2)
• Ball tips diameter ØD of ball screw is corresponding steel ball specification

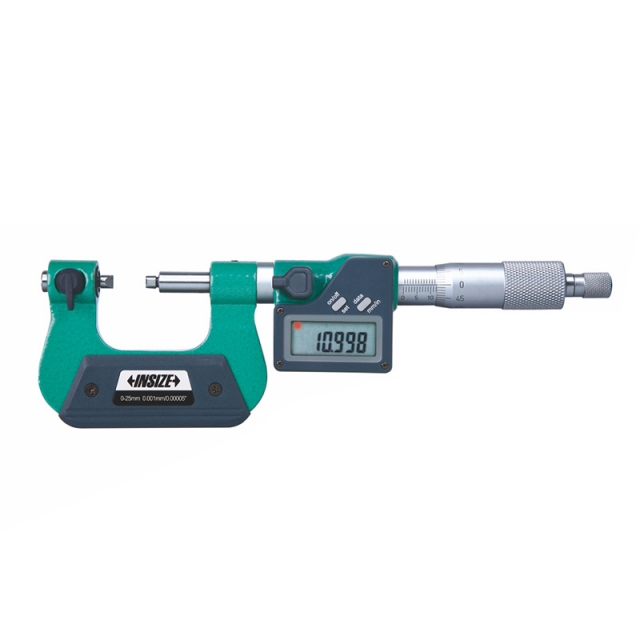

• Measure pitch diameter of screw threads
• Button function: on/off, set, mm/inch, data transmit
• Automatic power off

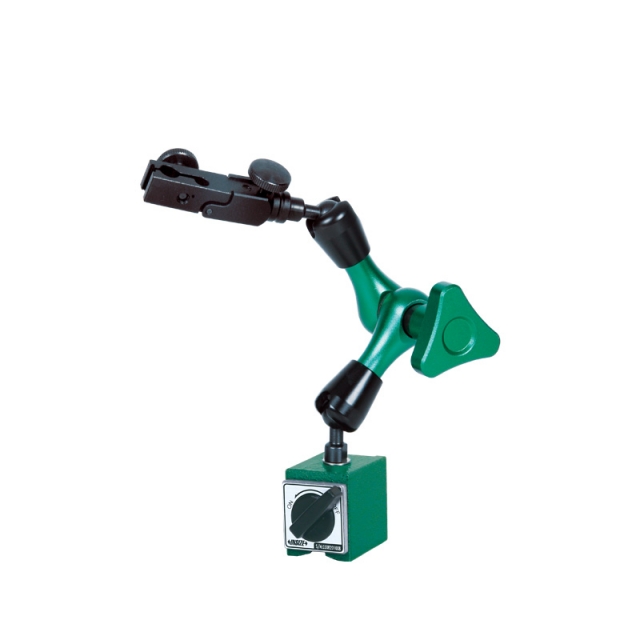

• For digital/dial indicators and dial test indicators

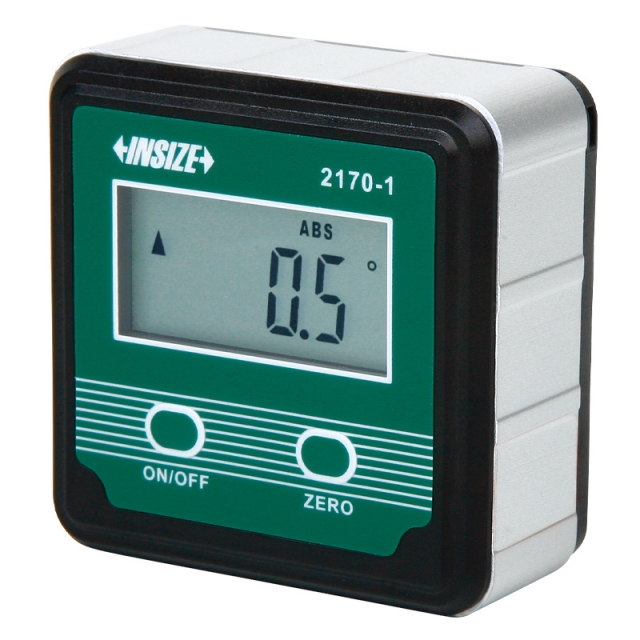

• Used as level and slope meter
• Aluminum frame
• Magnetic bottom
• The display flips over when the bottom faces up
