Protection Relay Test Systems | KINGSINE

• 6x35A@425VA max & 6x310V@105VA max analog outputs.
• 10kg weight, easy carry on flight journey.
• Low-level signals output, energy meter testing, transducer calibration, and IEC61850 testing capability for optional
• 8x100/1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations
• Inbuilt GPS and IRIG-B synchronized end-to-end testing capability



• 6x35A@425VA max & 6x310V@105VA max analog outputs.
• 10kg weight, easy carry on flight journey.
• Low-level signals output, energy meter testing, transducer calibration and IEC61850 testing capability for optional.



• offers 4x300V and 6x20A outputs
• Its maximum current can reach 60A, and the output power reaches 200VA/Phase
• supports IEC61850 SV/GOOSE, LPIT simulation, energy meter testing, low-level output, and transducer calibration

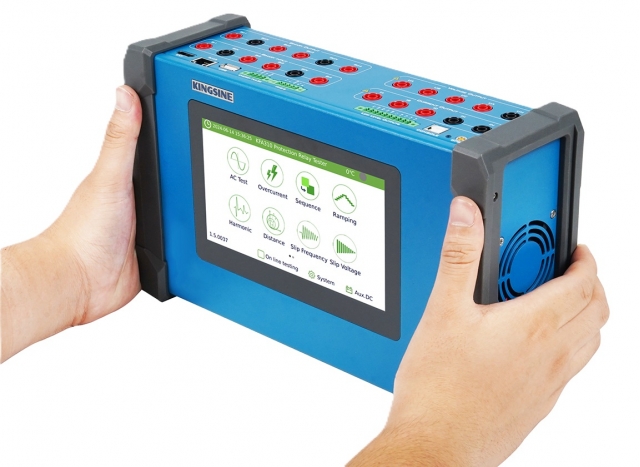

• The world's smallest relay tester with 10.1-inch LED touch screen, easy to carry in a iPad size, 3.8kg
• Fiber port for IEC61850 SMV and GOOSE simulations

• High-power, High-precision, Multi-functional
• weighs only 3.7 kg
• offers 4x300V and 3x20A outputs
• maximum current can reach 50A
• the output power reaches 130VA



• All-in-one design with LCD display
• Adopt DSP control to ensure the system more reliable
• Max. AC output 200A, Max. power output 1200VA
• Save the test report automatically (max. 1024)



• All-in-one design relay tester with 6.4 inches LCD display
• 4 Phase AC Voltage Source and 3 phase AC current source
• Range, Phase, Frequency can be set independently
• Max AC voltage can reach 300V each phase



• Unique self-protection system
• Unique power switch and amplifier technology
• Two in one of meter and source, with function of both internal and external testing, self-calibration, oscillograph



• 6.4 large LCD screen with VGA video interface
• Two in one of meter and source
• 13 channels output: 6×30(3×60A)/ 7×300V
• Embedded Windows CE & mouse & panel Keyboard
• Ethernet port for separate PC
• Amplitude, frequency and phase angle are adjustable respectively, independently and continuously



• 10.4 large LCD screen
• Unique power switch and amplifier technology
• Two in one of meter and source
• Smart and stable Window CE embedded system
• Universal Testing of voltage, current, frequency, power, impedance, harmonic, distance, differential and synchronism check relays by manual or by automation
• Complete Self-protection and alarm on overloading, open/short-circuit, grounding, wrong-wiring, overheating, system-halted



• Microprocessor-based Protective Relay Tester
• powerful features, excellent interface, rotate type mouse operation
• four-phase voltage source and three-phase current source
• special adjustable DC power supply output: DC 80~250V adjustable
• Time test: 0~9999.9999s, Resolution: 0.1ms



• output high-precision six-phase AC/DC voltage, current source
• Windows XP user interface
• large color display directly, touch mouse
• Six-phase current, six-phase voltage simultaneous output
• 16-bit DAC output
• produce 2000 high-density sine wave on the fundamental points of every cycle
