Power Quality Analyzers | HIOKI

Results 1 - 3 (total: 3) Page    |     1

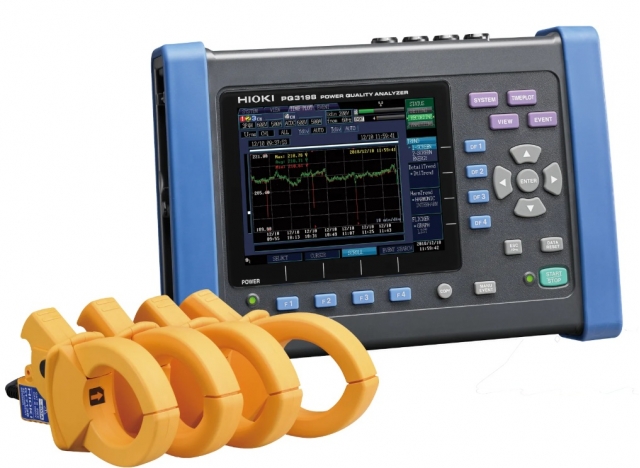

HIOKI PQ3198-92 POWER QUALITY ANALYZER WITH 4-CURRENT CLAMPS

• Measuring channels: 4 voltage channels, 4 current channels
• Voltage measuring range: 1 V to 1000 V AC/DC, ±6000 V peak
• Current measuring range: Up to 6000 A (with suitable current sensor)
• Frequency range: DC, 0.1 Hz to 700 kHz
• Basic accuracy: Voltage ±0.1 %, current ±0.1 % (with sensor)
• Event detection: transients, voltage increases, voltage drops, interruptions, frequency fluctuations
• Standard compliance: IEC61000-4-30 Class A

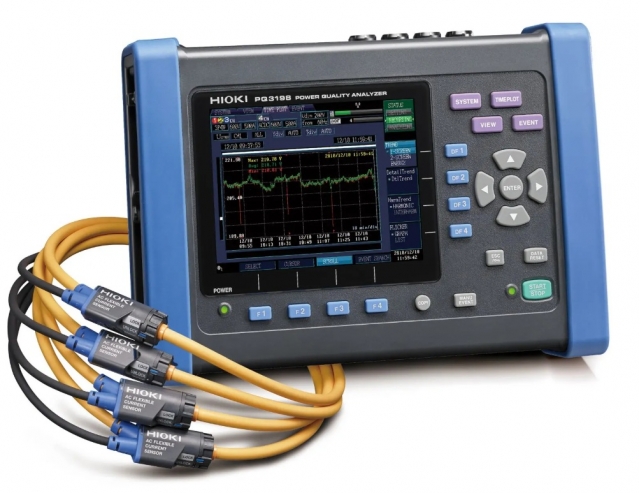

HIOKI PQ3198-94 POWER QUALITY ANALYZER WITH 4-CURRENT FLEXIBLE COIL SENSORS

• Measuring channels: 4 voltage channels, 4 current channels
• Voltage measuring range: 1 V to 1000 V AC/DC, ±6000 V peak
• Current measuring range: Up to 6000 A (with suitable current sensor)
• Frequency range: DC, 0.1 Hz to 700 kHz
• Basic accuracy: Voltage ±0.1 %, current ±0.1 % (with sensor)
• Event detection: transients, voltage increases, voltage drops, interruptions, frequency fluctuations
• Standard compliance: IEC61000-4-30 Class A

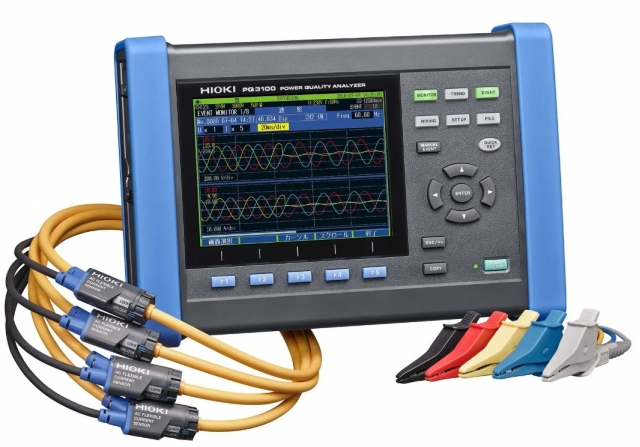

HIOKI PQ3100-94 ENERGY POWER QUALITY ANALYZER

• Measurement Channels: 4 voltage channels, 4 current channels
• Voltage Measurement Range: 1 V to 1000 V AC/DC, ±6000 V peak
• Current Measurement Range: Up to 6000 A (with appropriate current sensors)
• Frequency Range: DC, 0.1 Hz to 700 kHz
• Basic Accuracy: Voltage ±0.2%, Current ±0.2% (with sensor)
