Product information PQ3198-92 - Power Quality Analyzer Kit

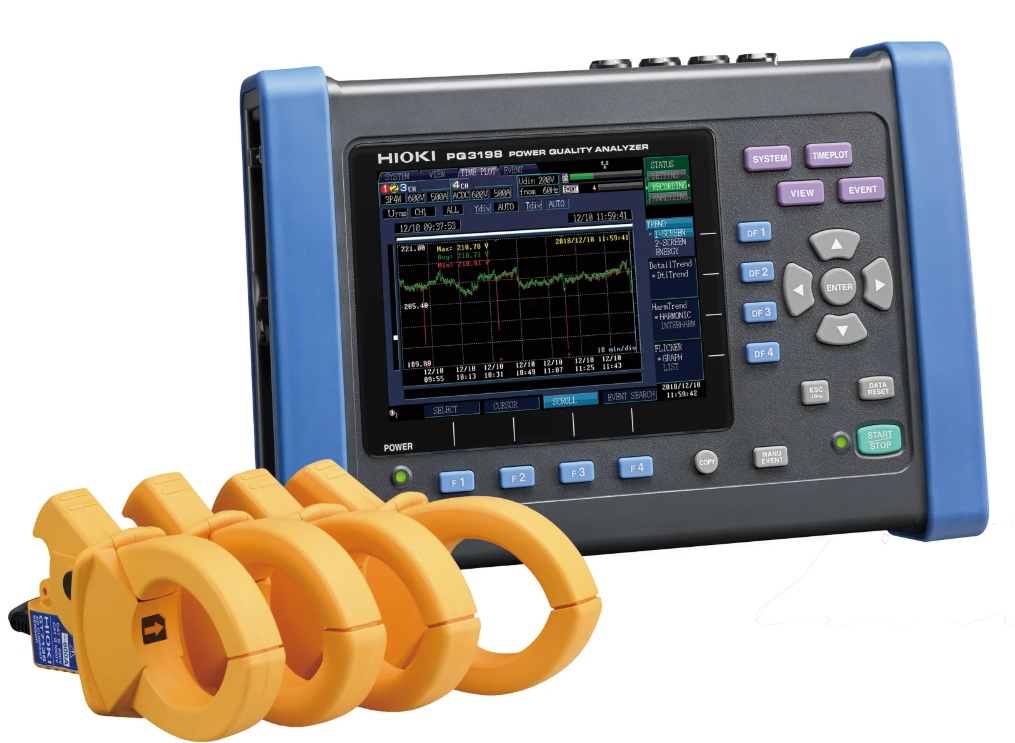

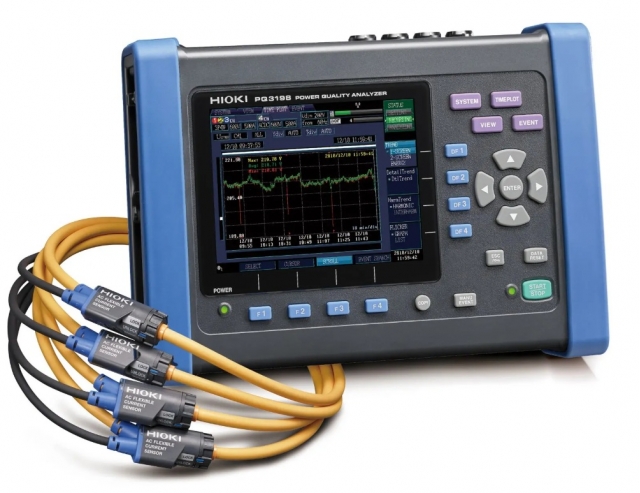

The PQ3198-92 Power Quality Analyzer Kit is a ready-to-use complete solution for Class A compliant power quality measurements and detailed analysis of electrical networks. The kit combines the high-performance PQ3198 Power Quality Analyzer with four 100 A AC current sensors (CT7136), making it ideal for energy audits, load studies, troubleshooting, and compliance testing according to EN 50160.
The PQ3198 enables simultaneous recording of voltage, current, power, harmonics, flicker, and transients with high accuracy. It captures power disturbances such as voltage dips, swells, interruptions, and frequency variations while continuously logging trend data. With detailed waveform recording and advanced harmonic analysis, the system provides full visibility into network behavior.
The -92 kit configuration is specifically designed for applications up to 100 A and is ideal for building installations, distribution panels, and precise energy analysis. Supplied in a durable, padded carrying bag, the kit is ideal for mobile use and fast deployment on site.
Technical details:
- Measuring channels: 4 voltage channels, 4 current channels
- Voltage measuring range: 1 V to 1000 V AC/DC, ±6000 V peak
- Current measuring range: Up to 6000 A (with suitable current sensor)
- Frequency range: DC, 0.1 Hz to 700 kHz
- Basic accuracy: Voltage ±0.1 %, current ±0.1 % (with sensor)
- Event detection: transients, voltage increases, voltage drops, interruptions, frequency fluctuations
- Standard compliance: IEC61000-4-30 Class A
- Display: 6.5-inch TFT colour display
- Power supply: AC adapter Z1002, battery packs Z1003 (up to 3 hours operation)
- Dimensions: 264 mm (W) × 150 mm (H) × 68 mm (D) - Weight: 2.6 kg
Standard accessories
PQ3198 Power Quality Analyzer
L1000 Voltage Cord (1 set)
Z1002 AC Adapter (incl. power cord)
Z1003 Battery Pack (Ni-MH, 7.2 V / 4500 mAh)
USB Cable
Z4001 SD Memory Card 2 GB
4 × AC Current Sensor CT7136 (100 A)
3 × Patch Cord L1021-02
Carrying Bag C1009
Colored clips (red, yellow, blue, white): 2 each Strap
Instruction Manual
Measurement Guide
Operating Precautions (0990A903)
CD (PC application software)
