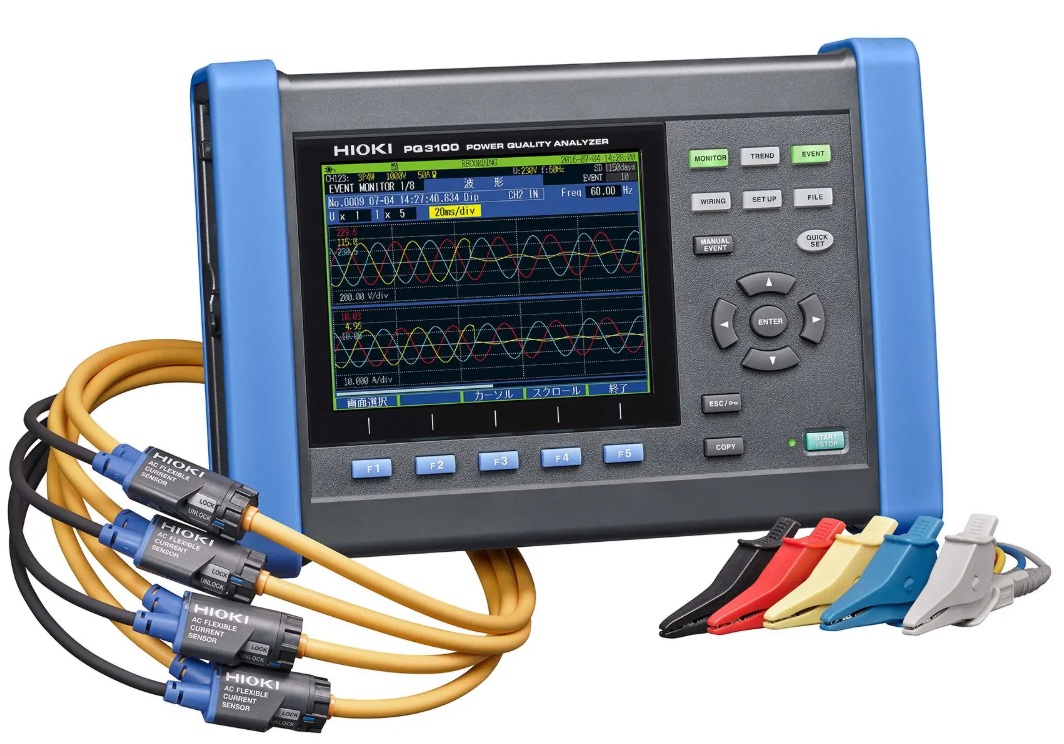

HIOKI PQ3100-94 Energy Power Quality Analyzer

Code: HIOKI PQ3100-94



Datasheet PDF, 3.38 Mb


Description

PQ3100-94 - Power quality measuring device with 4 flexible current transformers

Product information PQ3100-94 - Power quality measuring device with 4 flexible current transformers

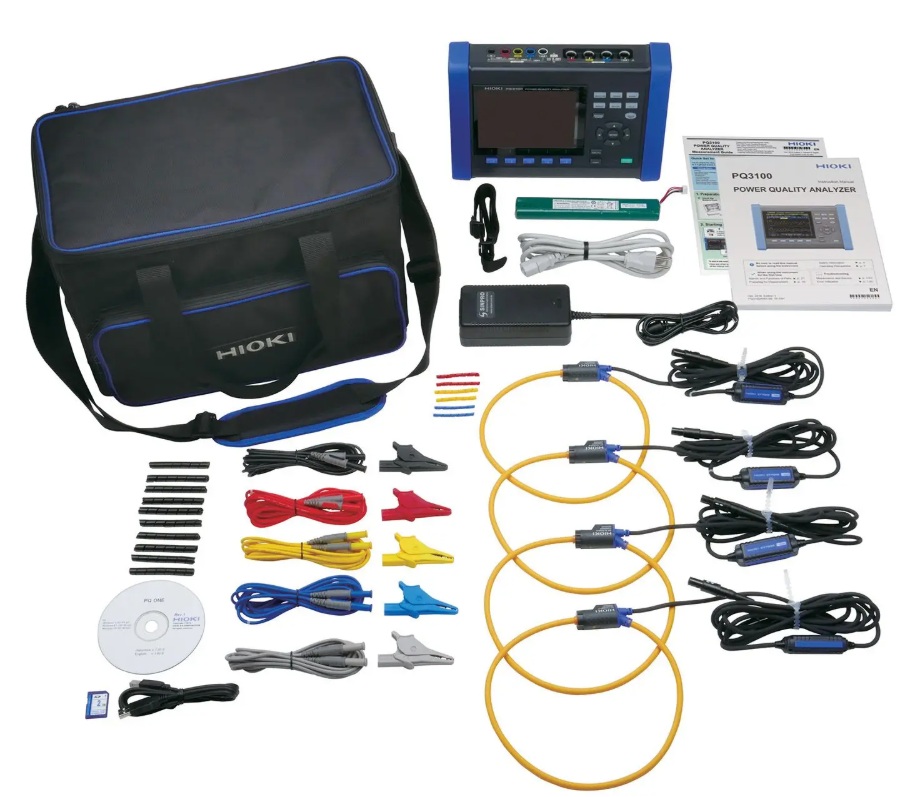

The PQ3100-94 Kit builds on the PQ3100, combining its powerful capabilities with essential accessories for high-current measurements. This complete solution includes 4 CT7045 Flexible Current Sensors, enabling precise measurements up to 6000 A. The PQ3100’s intuitive setup, extensive waveform recording, and compliance with IEC61000-4-30 Class S make it perfect for professionals who demand accuracy and reliability in power quality analysis.

Whether for EV charging stations, renewable energy systems, or industrial equipment, the PQ3100-94 Kit ensures you’re equipped for every challenge in high-power electrical environments.

Technical Details:
  • Measurement Channels: 4 voltage channels, 4 current channels
  • Voltage Measurement Range: 1 V to 1000 V AC/DC, ±6000 V peak
  • Current Measurement Range: Up to 6000 A (with appropriate current sensors)
  • Frequency Range: DC, 0.1 Hz to 700 kHz
  • Basic Accuracy: Voltage ±0.2%, Current ±0.2% (with sensor)
  • Event Detection: Transients, voltage fluctuations, harmonics, inrush currents
  • Compliance: IEC61000-4-30 Class S
  • Waveform Recording: Up to 11 seconds for detailed event analysis
  • Display: 6.5-inch TFT color LCD
  • Data Storage: Internal memory and SD card support
  • Power Supply: AC Adapter Z1002, Battery Pack Z1003 (up to 3 hours operation)
  • Dimensions: 264 mm (W) × 150 mm (H) × 68 mm (D)
  • Weight: 2.6 kg


More products HIOKI

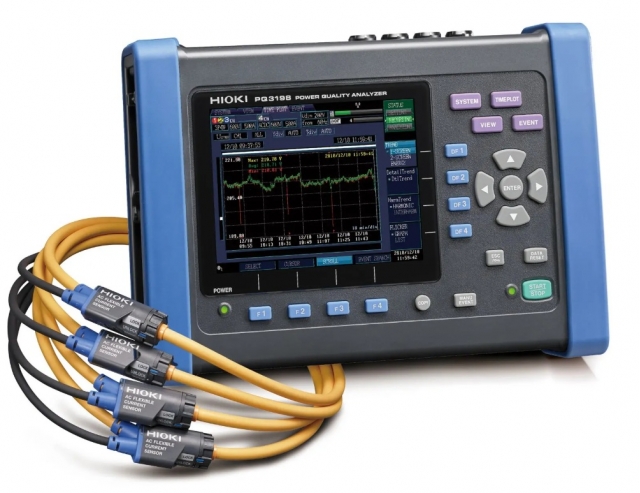

HIOKI PQ3198-94 POWER QUALITY ANALYZER WITH 4-CURRENT FLEXIBLE COIL SENSORS

• Measuring channels: 4 voltage channels, 4 current channels
• Voltage measuring range: 1 V to 1000 V AC/DC, ±6000 V peak
• Current measuring range: Up to 6000 A (with suitable current sensor)
• Frequency range: DC, 0.1 Hz to 700 kHz
• Basic accuracy: Voltage ±0.1 %, current ±0.1 % (with sensor)
• Event detection: transients, voltage increases, voltage drops, interruptions, frequency fluctuations
• Standard compliance: IEC61000-4-30 Class A

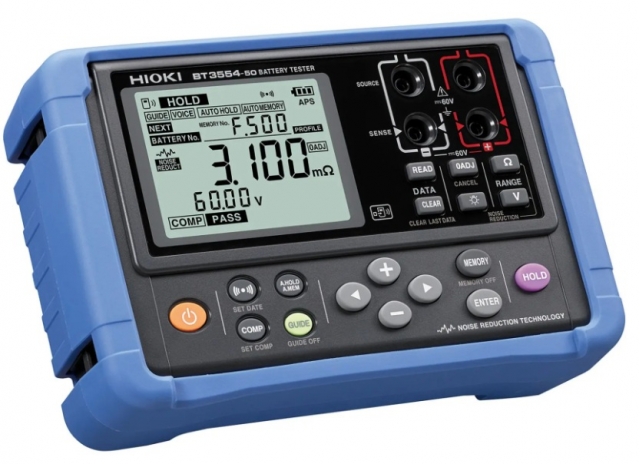

HIOKI BT3554

• Measures internal battery resistance at 1 kHz (AC-IR)
• Four resistance ranges: 3 mΩ to 3 Ω
• Two voltage ranges: 6 V and 60 V
• Measurement speed: < 2 seconds


HIOKI PQ3100-94 ENERGY POWER QUALITY ANALYZER

• Measurement Channels: 4 voltage channels, 4 current channels
• Voltage Measurement Range: 1 V to 1000 V AC/DC, ±6000 V peak
• Current Measurement Range: Up to 6000 A (with appropriate current sensors)
• Frequency Range: DC, 0.1 Hz to 700 kHz
• Basic Accuracy: Voltage ±0.2%, Current ±0.2% (with sensor)

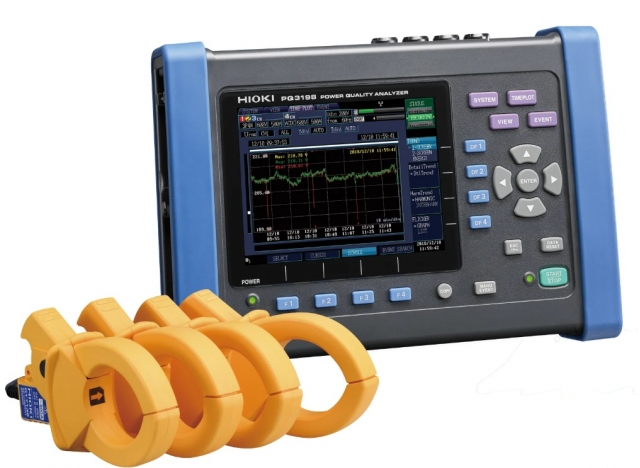

HIOKI PQ3198-92 POWER QUALITY ANALYZER WITH 4-CURRENT CLAMPS
