Description
Models
BT3554-50without test cableZ3210 requiredBattery tester and carrying case with spare parts. Test leads are required separately.
BT3554-519465-10 (straight)Z3210 requiredBattery tester incl. straight test probes 9465-10 for installations with easy access. No Bluetooth transmitter included.
BT3554-52L2020 (angled)Z3210 requiredBattery tester incl. angled test probes L2020 for installations with narrow access space. No Bluetooth transmitter included.
BT3554-919465-10 (straight)IncludedComplete set with straight test probes
Battery tester, straight probes 9465-10 and Bluetooth transmitter for easy efficient data reporting included.
BT3554-92L2020 (angled)IncludedComplete set with angled test probes
Battery tester, angled L2020 probes and Bluetooth transmitter for easy efficient data reporting included.
The BT3554 Battery Tester Series - the tool for USP battery testing
Two voltage ranges of 6V and 60V and four resistance ranges from 3 mΩ to 3 Ω make the BT3554 Battery Tester Series the perfect tool for maintenance checks of industrial VRLA batteries and UPS battery tests, regardless of the battery size and capacity. A complete measurement takes less than two seconds. This is time-efficient and differently shaped probe leads enable convenient access of all installations making this battery tester perfect for use in difficult to reach and confined areas. Choose your model with straight or L-shaped test probes, with Bluetooth® or without.

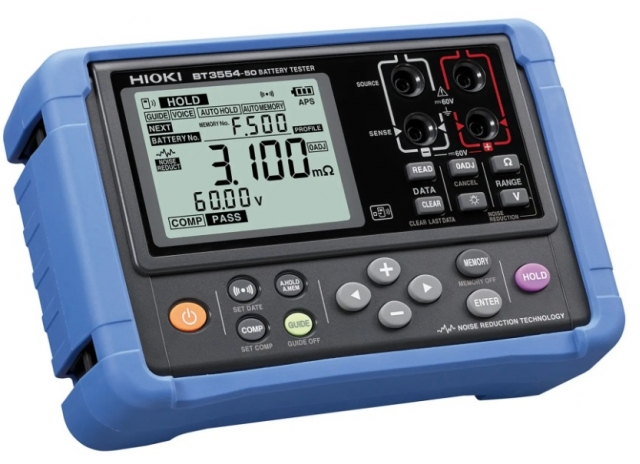

Product information HIOKI BT3554-50 - Portable Battery Tester, DC voltage, AC resistance
Key Specifications
- Measures internal battery resistance at 1 kHz (AC-IR)
- Four resistance ranges: 3 mΩ to 3 Ω
- Two voltage ranges: 6 V and 60 V
- Measurement speed: < 2 seconds
- Optional Bluetooth communication with Z3210 adapter
Typical Applications
- Maintenance and inspection of lead-acid batteries
- Diagnostics of UPS and backup power systems
- Designed for VRLA batteries of all sizes and capacities
Standard accessories
HIOKI BT3554-50 - Portable Battery Tester, DC voltage, AC resistance
BT3554-50
User Manual
Carrying Case C1014
Protector Z5041
Fuse Set Z5050
O Adj Board
Neck strap
USB cable
Application software CD (GENNECT One)
8x AA alkaline battery (LR6)
HIOKI BT3554-51 - Portable Battery Tester, 9465-10 Straight Pin Type Lead
BT3554-50
User Manual
Carrying Case C1014
Protector Z5041
Fuse Set Z5050
0 Adj Board
Neck strap
USB cable
Application software CD (GENNECT One)
8x AA alkaline battery (LR6)
Pin Type Lead 9465-10
HIOKI BT3554-52 - Portable Battery Tester, L2020 Angled Pin Type Lead
BT3554-50
User Manual
Carrying Case C1014
Protector Z5041
Fuse Set Z5050
0 Adj Board
Neck strap
USB cable
Application software CD (GENNECT One)
8x AA alkaline battery (LR6)
Pin Type Lead L2020
HIOKI BT3554-91 - Portable Battery Tester, 9465-10 Test Lead and Z3210
BT3554-50
User Manual
Carrying Case C1014
Protector Z5041
Fuse Set Z5050
0 Adj Board
Neck strap USB cable
Application software CD (GENNECT One)
8x AA alkaline battery (LR6)
Pin Type Lead 9465-10
HIOKI BT3554-92 - Portable Battery Tester, L2020 Test Lead and Z3210
BT3554-50
User Manual
Carrying Case C1014
Protector Z5041
Fuse Set Z5050
0 Adj Board
Neck strap
USB cable
Application software CD (GENNECT One)
8x AA alkaline battery (LR6)
Pin Type Lead L2020
Z3210 Wireless Module
Recommended options
HIOKI L2020 - Angled Test Lead with Pogo Pins
L2020 angled pin type test lead, max. 60 VDC, total length 1940 mm, pogo pin tip with coaxial design, for BT3554 portable battery tester and RM3548 portable resistance meter
HIOKI 9465-10 - Straight Test Lead with Pogo PinsHIOKI 9465 10 straight test lead pogo pins 200v max
9465-10
HIOKI 9465-10 - Straight Test Lead with Pogo Pins
HIOKI 9465-10 straight pin type test lead, max. 60 VDC, total length 1900 mm, pogo pin tip with coaxial design, for BT3554 portable battery tester and RM3548 portable resistance meter
9772 PIN TYPE LEAD HIOKI 9772 pin type lead 1 8mm tip diameter
9772
9772 PIN TYPE LEAD
The Hioki 9772 Pin-Type Lead is designed for use in narrow spaces where making contact with the subject of measurement is difficult, such as when maintaining emergency batteries. The lead features two parallel, spring contact tips with a diameter of 1.8 mm, allowing for stable connection with the measurement object. Its four-terminal structure ensures precise measurements in confined spaces. Technical Details: Parallel tips, spacing: 2.5 mm Diameter singe tip: 1.8mm Continuous current: AC/DC 2 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 1900 mm Weight: approx. 180 g Accessories: Instruction manual Spare parts: 9772-90 tip pin
9772-90 - Tip pin9772-90 - Tip pin
9772-90
9772-90 - Tip pin
The Hioki 9772-90 is the replacement measurement tip for the Hioki 9772 test lead. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded
HIOKI 9460 - CLIP TYPE LEAD WITH TEMPERATURE SENSOR HIOKI 9460 - CLIP TYPE LEAD WITH TEMPERATURE SENSOR
9460
HIOKI 9460 - CLIP TYPE LEAD WITH TEMPERATURE SENSOR
The 9460 Clip Type Test Lead with an integrated temperature sensor is designed for use with the HIOKI BT3554 Battery Tester and similar products. With a length of 226 cm, it provides both convenient reach and precise measurements, ensuring reliable testing of batteries under various conditions. The built-in temperature sensor allows for simultaneous monitoring of battery temperature during testing, adding a layer of diagnostic accuracy Technical Details: Type: Clip Type Test Lead with temperature sensor Length: 226 cm Large Kelvin Clamps Compatibility: HIOKI BT3554 Battery Tester and similar products Function: Battery testing and temperature monitoring
HIOKI L2020 - Angled Test Lead with Pogo PinsHIOKI L2020 angled test lead pogo pins for BT3554
L2020
HIOKI L2020 - Angled Test Lead with Pogo Pins
L2020 angled pin type test lead, max. 60 VDC, total length 1940 mm, pogo pin tip with coaxial design, for BT3554 portable battery tester and RM3548 portable resistance meter
HIOKI 9465-10 - Straight Test Lead with Pogo PinsHIOKI 9465 10 straight test lead pogo pins 200v max
9465-10
HIOKI 9465-10 - Straight Test Lead with Pogo Pins
HIOKI 9465-10 straight pin type test lead, max. 60 VDC, total length 1900 mm, pogo pin tip with coaxial design, for BT3554 portable battery tester and RM3548 portable resistance meter
9772 PIN TYPE LEAD HIOKI 9772 pin type lead 1 8mm tip diameter
9772
9772 PIN TYPE LEAD
The Hioki 9772 Pin-Type Lead is designed for use in narrow spaces where making contact with the subject of measurement is difficult, such as when maintaining emergency batteries. The lead features two parallel, spring contact tips with a diameter of 1.8 mm, allowing for stable connection with the measurement object. Its four-terminal structure ensures precise measurements in confined spaces. Technical Details: Parallel tips, spacing: 2.5 mm Diameter singe tip: 1.8mm Continuous current: AC/DC 2 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 1900 mm Weight: approx. 180 g Accessories: Instruction manual Spare parts: 9772-90 tip pin
9772-90 - Tip pin9772-90 - Tip pin
9772-90
9772-90 - Tip pin
The Hioki 9772-90 is the replacement measurement tip for the Hioki 9772 test lead. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded
HIOKI 9460 - CLIP TYPE LEAD WITH TEMPERATURE SENSOR HIOKI 9460 - CLIP TYPE LEAD WITH TEMPERATURE SENSOR
9460
HIOKI 9460 - CLIP TYPE LEAD WITH TEMPERATURE SENSOR
The 9460 Clip Type Test Lead with an integrated temperature sensor is designed for use with the HIOKI BT3554 Battery Tester and similar products. With a length of 226 cm, it provides both convenient reach and precise measurements, ensuring reliable testing of batteries under various conditions. The built-in temperature sensor allows for simultaneous monitoring of battery temperature during testing, adding a layer of diagn
