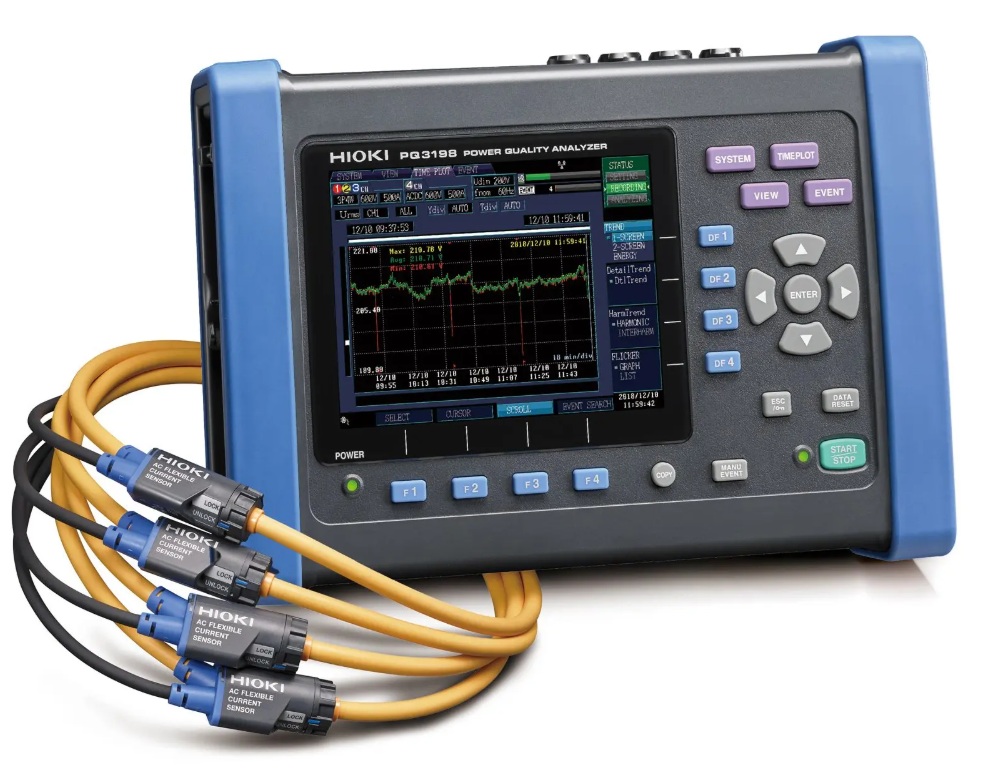

PQ3198-94 - Power quality analyzer kit with 4 flexible current clamps
The Hioki PQ3198-94 Kit is a complete solution for monitoring and analyzing power quality. Equipped with all essential accessories, it enables professionals to perform high current measurements up to 6000 A in demanding electrical systems.
Product information PQ3198-94 - Power quality analyzer kit with 4 flexible current clamps
The PQ3198-94 kit is based on the PQ3198 including its standard accessories plus all necessary additional accessories that enable professionals to perform high current measurements up to 6000 A in high power electrical systems. It offers a complete solution for monitoring and analyzing power quality.

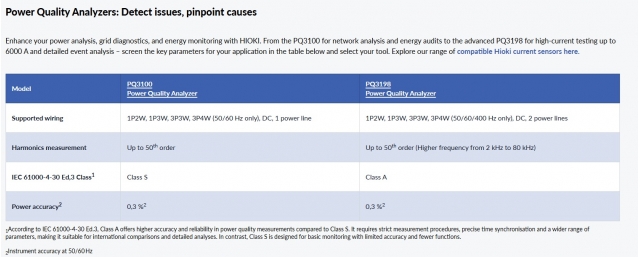

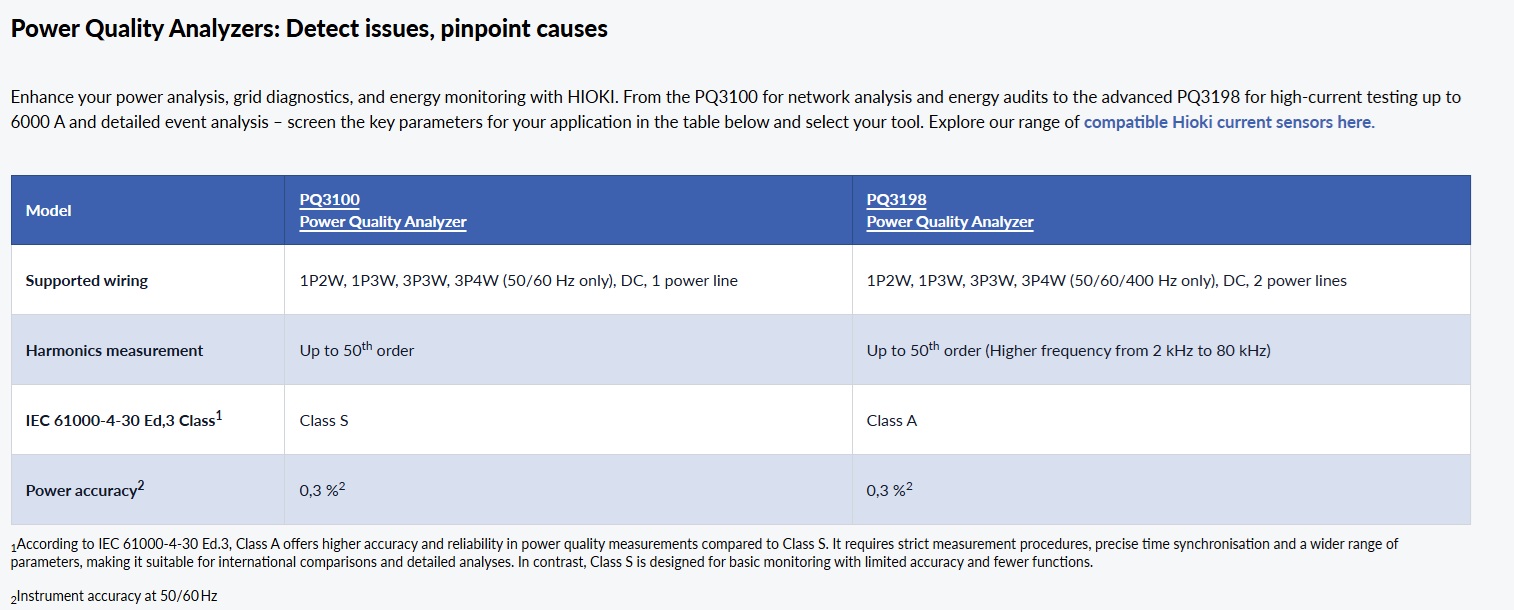

The PQ3198 main unit supports both AC and DC measurements, complies with the IEC61000-4-30 Class A standard and measures voltage fluctuations, transients, harmonics and inrush currents. Ideal for applications in renewable energy systems, electric vehicle charging stations and power controllers, the analyzer with its 4 isolated voltage channels enables simultaneous measurements across multiple circuits.
Technical details:
- Measuring channels: 4 voltage channels, 4 current channels
- Voltage measuring range: 1 V to 1000 V AC/DC, ±6000 V peak
- Current measuring range: Up to 6000 A (with suitable current sensor)
- Frequency range: DC, 0.1 Hz to 700 kHz
- Basic accuracy: Voltage ±0.1 %, current ±0.1 % (with sensor)
- Event detection: transients, voltage increases, voltage drops, interruptions, frequency fluctuations
- Standard compliance: IEC61000-4-30 Class A
- Display: 6.5-inch TFT colour display
- Power supply: AC adapter Z1002, battery packs Z1003 (up to 3 hours operation)
- Dimensions: 264 mm (W) × 150 mm (H) × 68 mm (D) - Weight: 2.6 kg
Technical details PQ3198-94 Kit:
- Flexible current sensors (CT7045):
- Rated measuring current: 6000 A AC
- Measuring range: 600 A / 6000 A AC
- Max. permissible input: 10000 A continuous (at 6000 A, 45 to 66 Hz, requires derating)
- Bandwidth: 10 Hz to 50 kHz (±3 dB)
- Accuracy: ±1.5 % F.S., ±0.25 % F.S.
- Max. rated voltage to earth: 600 V (CAT IV), 1000 V (CAT III)
- Loop diameter: 180 mm
- Output connection: Hioki PL14
- Operating temperature: -25°C to 65°C
Standard accessories
PQ3198 Power Quality Analyzer
AC Adapter Z1002
Battery Pack Z1003
USB Cable
Color Clips
Spiral Tubes
Carrying Case C1009
Voltage Cords L1000
Flexible Current Sensors CT7045 (4 units)
SD Memory Card Z4001
Patch Cords L1021-02 (3 units)
PQ ONE Software CD
Instruction Manual
Measurement Guide
Datasheet
