Electromagnetic Field Testers | LIST MAGNETIK

• Measurements in A/cm, kA/m, Gauss, Tesla
• Protection class: IP64
• Display: LCD touch panel color 320x480 pixel
• Data logger: 10,000 measurements, flexibly divisible
• App for Android, iOS, Windows: free of charge



• Measurement Units: A/cm - Gauss(Oe) switchable (1 A/cm = 1.256 Gauss = 1.256 Oersted)
• Applicable measuring probes: axial probes P-A2 and P-W2, transversal probes P-T2 and P-Z2

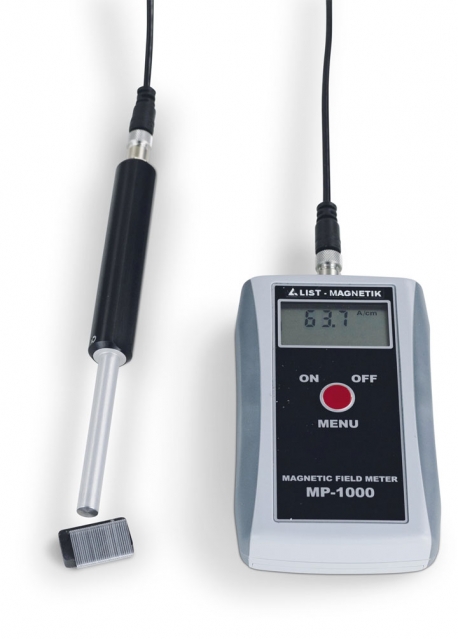

• Measuring range DC: 0-20,000 A/cm
• Measuring range AC: 20-20,000 A/cm



• Measuring units: A/cm – kA/m – Gauss – Oersted – Tesla switchable
• (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)

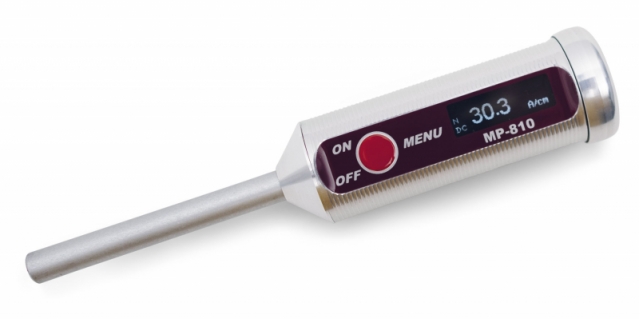

• Measuring probe MP-810A: Axial field probe ø 8mm with defined measuring distance of 2.0 mm
• Measuring probe MP-810T: Transversal field probe of 1.7 mm thickness with Hall Sensor distance of 0.9 mm
• Measuring range DC: 0-20,000 A/cm
• Measuring range AC: 2-20,000 A/cm



• Measuring units: A/cm – kA/m - Gauss (Oe) – Tesla
• Measuring probe: integrated axial field probe, ø 8mm with defined measuring distance of 2.0 mm

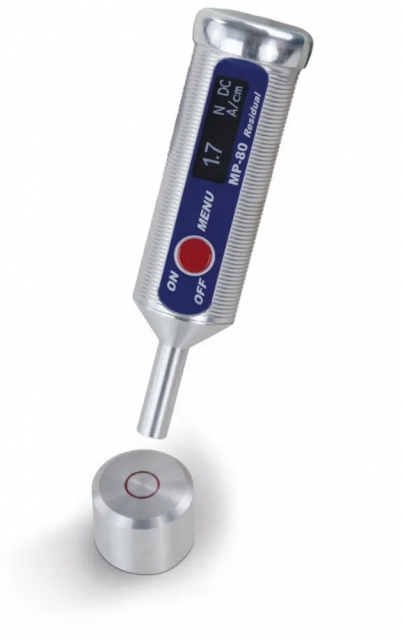

• Measuring range DC: Residual Magnetism / Remanence in the range 0-100 A/cm
• Accuracy: in the homogeneous field ± 0,3 A/cm below 10 A/cm,
• ± 3% of measured value from 10 A/cm
• Resolution: 0.1 A/cm or 0.01 mT

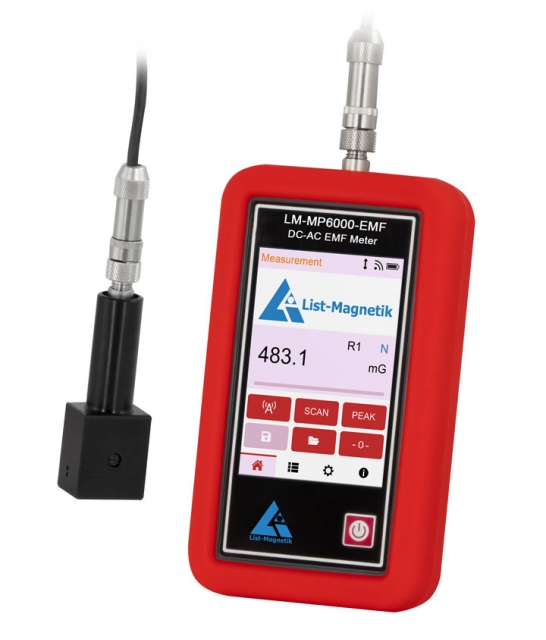

• Measuring units: mG, G, µT, mT, A/m
• Probe: Transversal fluxgate measuring probe PMF61
• Measuring range DC: 0-4 G / 0-400 µT (0.4 mT) / 0-300 A/m
• Measuring range AC: 0-3 G / 0-300 µT (0.3 mT) / 0-240 A/m effective
• Accuracy: ± 2% of measured value / ± 0.8 µT
• Resolution: 0.1 mG / 0.01 µT / 0.01 A/m
• Frequency range AC: max. 2 kHz

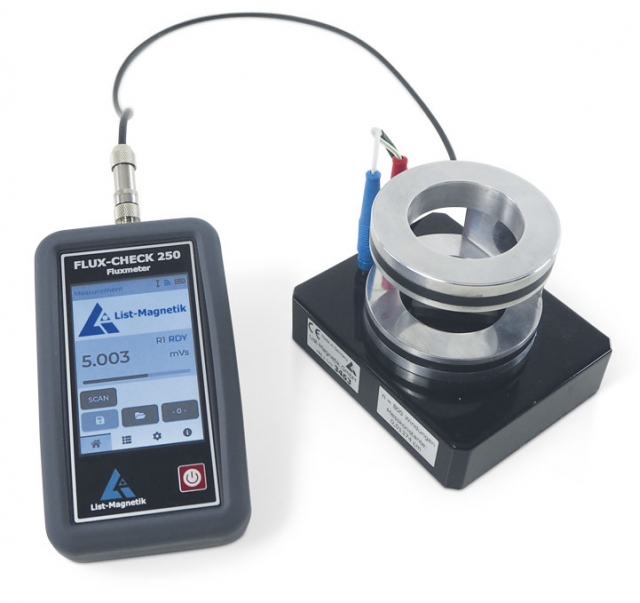

• Measuring units: magnetic flux mVs (milli-Volt-second, corresponds to the SI unit mWb / milli-Weber)
• Measuring ranges: 0-10 mVs and 0-250 mVs, automatic or manual range switching
• Real flux: mVs / n
• Magnetic moment: mVs * cm
• Flux density: A/cm or mT
• Accuracy: 2%
• Repeatability: 1%

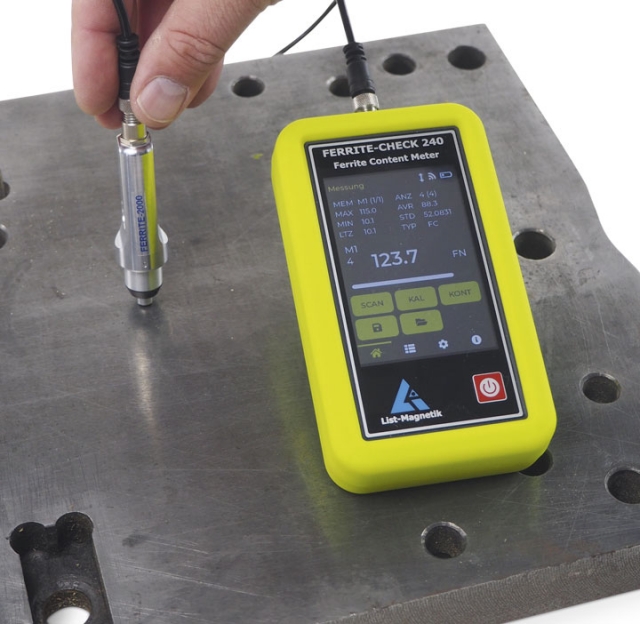

• Applications: Measurement of ferrite content in austenitic and duplex steels
• Probe: FERRITE-2000, special probe for ferrite testing. Externally connected
• Measurement units: Fe% and FN
• Measuring range: 0.2 - 100 Fe% 0.2 - 140 FN
• Measurement method: Single measurement or scanning
• Smallest measuring area: ø 2 mm
• Accuracy: 5 %
• Resolution: under 10: 0.01, over 10: 0.1

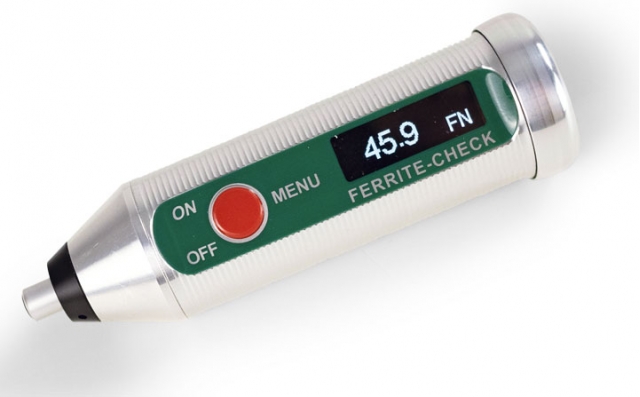

• Application: Measurement of ferrite content in austenitic and duplex steels
• Measuring range: 1 - 100 Fe% 1 - 140 FN
• Measuring method: Single measurement or continuous measurement with averaging
• Smallest measuring area: ø 2 mm
• Accuracy: 5 %
• Resolution: until 10: 0.01, above 10: 0.1

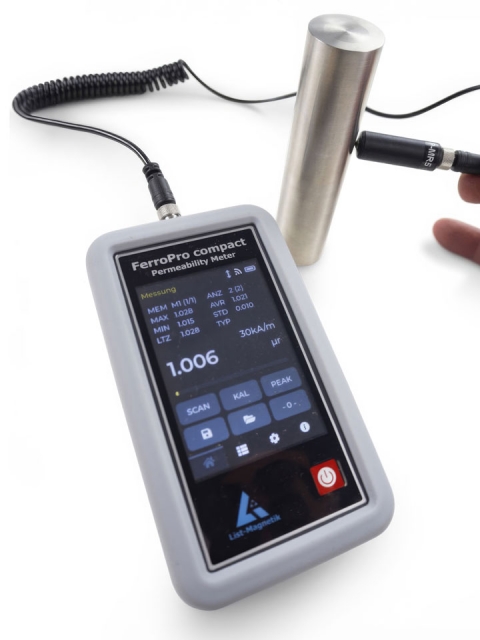

• Measuring range: µr = 1.000 to 5.000
• Probe: FPC-5, interchangeable, with separately interchangeable cable
• Accuracy at 20°C: (µr - 1) x 5%, against traceable calibration standards, can be readjusted
• Resolution: 0.001



• Measuring units: A/cm – kA/m – Gauss – mTesla switchable (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)

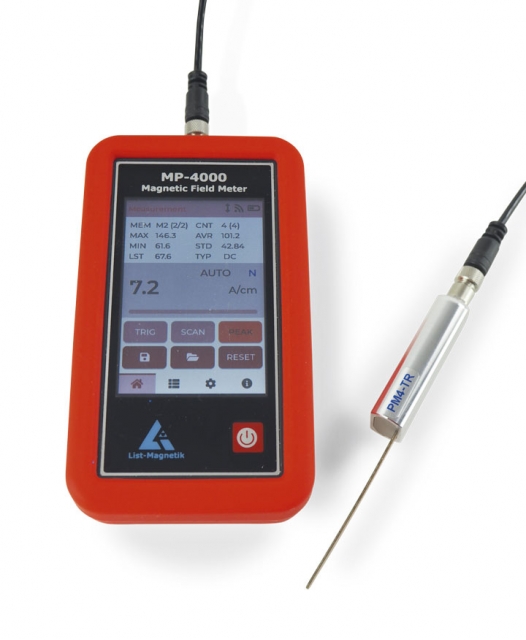

• Probe: Transversal Flexible Reed Probe LM-MP-PM4-TR
• Measuring range DC: 0-40,000 A/cm (± 4000mT)
• Accuracy: ± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm
• Angle accuracy: ± 0.15°
• Measuring direction: Radial or axial
• Resolution: 0.1 A/cm (0.01 mT)

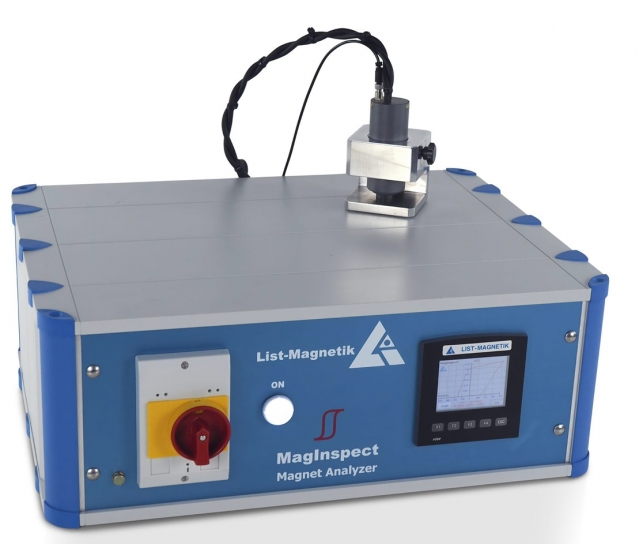

• measuring magnetic quality of hard magnetic materials such as AlNiCo, ferrite or rare earth materials
• Coercivity (I_Hc)
• Remanence (Br)
• Saturation magnetization (Ms)
• Hysteresis loop
