LIST-MAGNETIK FerriteCheck 140 Ferrite Content Meter in austenite and duplex steels

Code: FerriteCheck-140



Datasheet PDF, 0.65 Mb


Description

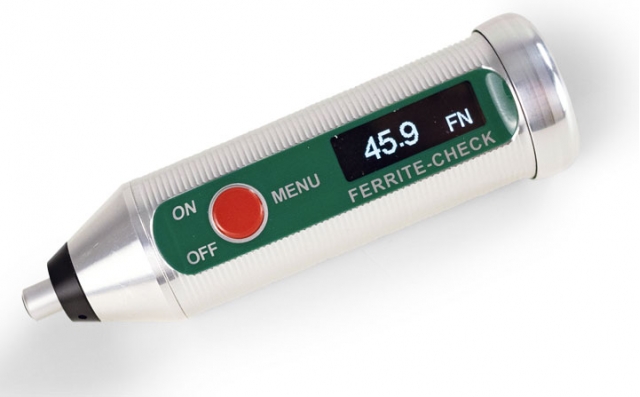

Ferrite content meter FERRITE-CHECK 140
for ferrite content measurement in austenitic and duplex steels


Ferrite content measurement kept simple
The List-Magnetik FERRITE-CHECK 140 is a compact, handheld device with an integrated probe for non-destructive testing and analysis of materials. In accordance with the Basel standard DIN EN ISO 8249, it measures the ferrite content in austenitic and duplex steels using the magnetic induction method. This well-established NDT (non-destructive testing) method delivers precise results without damaging the component.

A great help for China standards
GB/T 150.1-2024 is the first part of the Chinese national standard for metal pressure vessels, focusing on General Requirements. This standard, published on July 24, 2024, specifies the general requirements for the material, design, fabrication, inspection, and testing of metal pressure vessels used in China. FERRITE-CHECK 140 helps you verify compliance with the ferrite content requirements of this standard.

Display of the ferrite content via OLED display
With just one button and self-explanatory, multilingual menu navigation, the ferrite content meter is easy to operate. This makes it ideal for quick use in non-destructive testing (NDT). The illuminated, high-contrast OLED display shows measurement results in either FN (ferrite number) or Fe% (iron content).

This device is ideal for non-destructive material testing, especially for material analysis and thickness measurement, as well as when used with methods such as ultrasonic or hardness testing. It facilitates precise testing processes in materials technology and often replaces costly or destructive testing methods.

Measure ferrite content in welds
Measuring the ferrite content is crucial for welded duplex steels to ensure the weld is strong enough. Insufficient heat input or cooling can result in too low of a ferrite content, which could weaken the weld. Non-destructive testing (NDT), ultrasonic testing, and material analysis can efficiently detect such defects.

Fast and continuous ferrite content measurement
The FERRITE-CHECK 140 provides very accurate and quick ferrite content determination. For testing materials with smooth or polished surfaces, the device can be switched to fast continuous measurement mode. As the probe is moved along the surface, the device continuously stores the measured values. After lifting the probe, the device displays the statistics, including the minimum, maximum, and average values of the measurement series. This feature is particularly useful for NDT (non-destructive testing) and rapid analysis of ferrite content in weld seams.

Calibrating the ferrite content meter
The FERRITE-CHECK 140 ferrite content measuring device is supplied with three calibration standards that are traceably calibrated according to the NIST standard. This device is ideal for testing materials and performing non-destructive testing (NDT) of welds and materials to accurately measure ferrite content.

To further process your measurement data, you can pair your measuring device with mobile Android and iOS devices. Or you communicate with a Windows PC. This is made possible by wireless technology. With the Lima Connect app you can manage projects and assign the measuring points on a photo. The measurement results can be statistically evaluated and displayed graphically. The app for Android, iOS and Windows is free.

Service tool
The free Windows app Lima Service is available on our homepage. You can use it to set the time on your device that will be used during data transfer.

If there is a malfunction of the device, you can read data from the device, which will help our technicians in telephone support to analyze it. Thus, we may be able to remedy the situation without you having to send in the device and lose time.

The application runs on Windows 10 and Windows 11. Older Windows versions are not tested.

Technical data Ferrite content meter FERRITE-CHECK 140

Application:Measurement of ferrite content in austenitic and duplex steels
Measuring range:1 - 100 Fe%
1 - 140 FN
Measuring method:Single measurement or continuous measurement with averaging
Smallest measuring area:ø 2 mm
Accuracy:5 %
Resolution:until 10: 0.01, above 10: 0.1
Operating conditions:0 - 50 °C
Storage conditions:0-50 °C, 10-90%
Protection class:IP64
Display:illuminated high-contrast graphic OLED display
Display size:25 x 10 mm
Menu navigation:English, German, French, Italian, Spanish, Hungarian, Polish, Dutch
Data logger:4000 measured values flexibly divisible
Statistics:count / maximum / minimum / average / standard deviation
Interface:wireless interface for communication with Android, iOS and Windows
App for Android, iOS, Windows:free of charge via Google Play Store, Apple App Store, List-Magnetik website
Power supply:1x 1.5 V AA Mignon
Operating time:approx. 30 hours
Dimensions:Ø 28 x 94 mm
Packaging dimensions:12 x 12 x 4 cm
Weight:72 g (with battery)


Standard accessories

Models and scope of delivery Ferrite Content Meter FERRITE-CHECK 140
LM-FC140 / Model FERRITE-CHECK 140 with 3 calibration standards, spare battery and case, including calibration certificate


More products LIST MAGNETIK

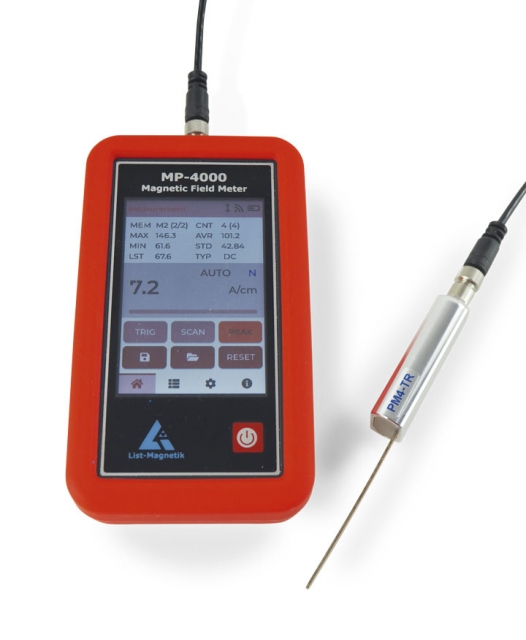

LIST-MAGNETIK MP-4000 GAUSSMETER TESLAMETER FOR MAGNETIC FIELD TESTING METER

• Measurements in A/cm, kA/m, Gauss, Tesla
• Protection class: IP64
• Display: LCD touch panel color 320x480 pixel
• Data logger: 10,000 measurements, flexibly divisible
• App for Android, iOS, Windows: free of charge

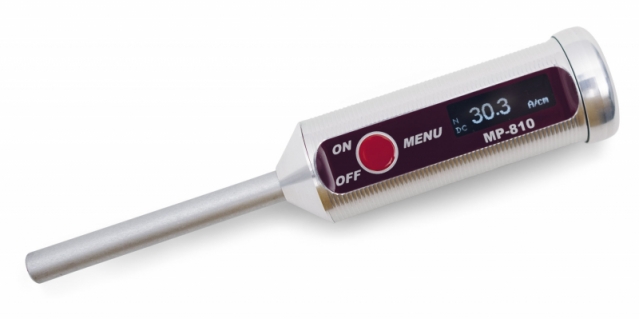

LIST-MAGNETIK MP-810 GAUSSMETER TESLAMETER MAGNETOMETER MAGNETIC FIELD METER COMPACT PORTABLE

• Measuring units: A/cm – kA/m – Gauss – Oersted – Tesla switchable
• (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
• Measuring probe MP-810A: Axial field probe ø 8mm with defined measuring distance of 2.0 mm
• Measuring probe MP-810T: Transversal field probe of 1.7 mm thickness with Hall Sensor distance of 0.9 mm
• Measuring range DC: 0-20,000 A/cm
• Measuring range AC: 2-20,000 A/cm


LIST-MAGNETIK FERRITECHECK 140 FERRITE CONTENT METER IN AUSTENITE AND DUPLEX STEELS

• Application: Measurement of ferrite content in austenitic and duplex steels
• Measuring range: 1 - 100 Fe% 1 - 140 FN
• Measuring method: Single measurement or continuous measurement with averaging
• Smallest measuring area: ø 2 mm
• Accuracy: 5 %
• Resolution: until 10: 0.01, above 10: 0.1

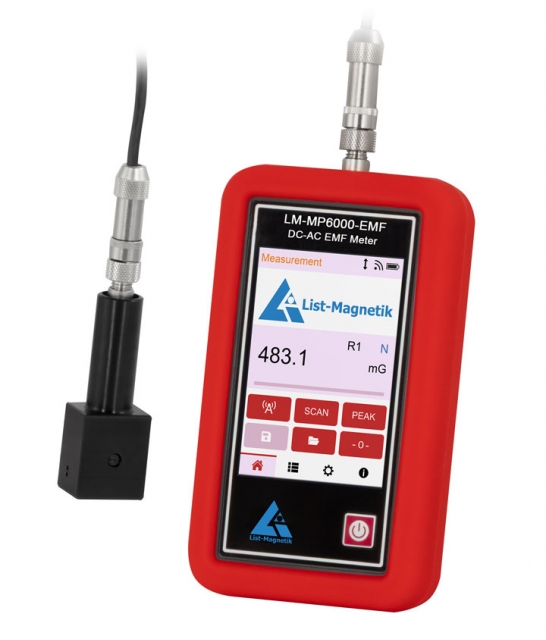

LIST-MAGNETIK LM-MP6000-EMF EMF FLUXGATE MAGNETIC FIELD METER FOR TESTING VERY WEAK MAGNETIC FIELDS ACC. IATA953

• Measuring units: mG, G, µT, mT, A/m
• Probe: Transversal fluxgate measuring probe PMF61
• Measuring range DC: 0-4 G / 0-400 µT (0.4 mT) / 0-300 A/m
• Measuring range AC: 0-3 G / 0-300 µT (0.3 mT) / 0-240 A/m effective
• Accuracy: ± 2% of measured value / ± 0.8 µT
• Resolution: 0.1 mG / 0.01 µT / 0.01 A/m
• Frequency range AC: max. 2 kHz

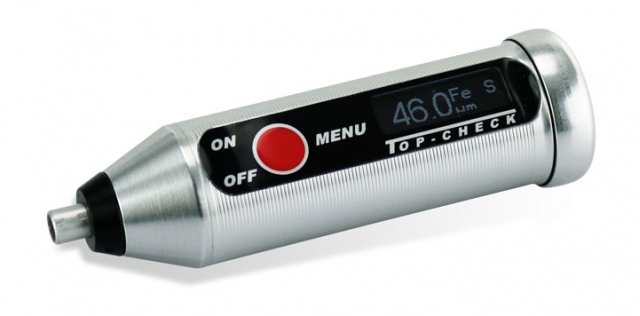

COATING THICKNESS METER LIST-MAGNETIK TOP-CHECK FERRO-1000

• Applications: Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178)
• Measuring probe: sensing device, springy
• Measuring range: on steel and iron: 0-1000 μm
• Smallest Area: ø 2 mm

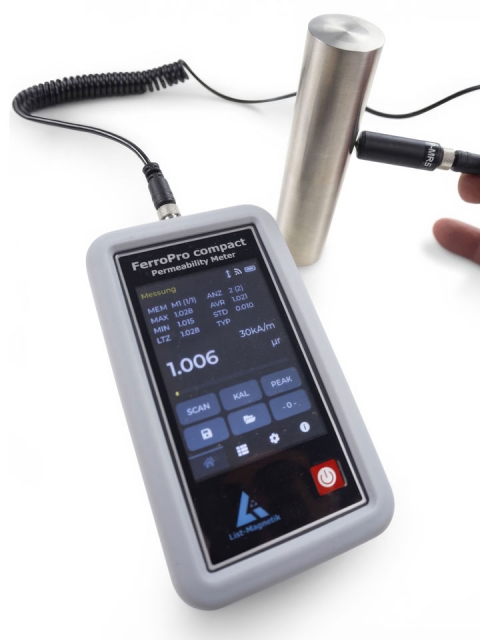

LIST-MAGNETIK FERROPRO COMPACT

• Measuring range: µr = 1.000 to 5.000
• Probe: FPC-5, interchangeable, with separately interchangeable cable
• Accuracy at 20°C: (µr - 1) x 5%, against traceable calibration standards, can be readjusted
• Resolution: 0.001

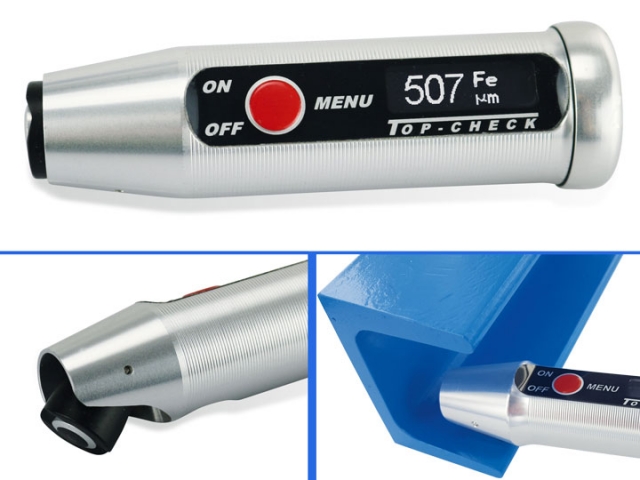

COATING THICKNESS METER TOP-CHECK

• Applications: Measurement of paint, lacquer, plastic and galvanic coatings on steel (ISO 2178) / insulating coatings on non-ferrous metals (ISO 2360; only with TOP-CHECK Dual), Automatic detection of base material
• Measuring probe: pivotable by 90°
• Measuring range: on steel and iron 0-5000 µm, on NF metals 0-2000 µm
• Smallest measuring area: TOP-CHECK Dual ø 8 mm, TOP-CHECK Ferro ø 4 mm
• Minimum radius of curvature: concave 38 mm, convex TOP-CHECK Dual 6 mm, TOP-CHECK Ferro 4 mm

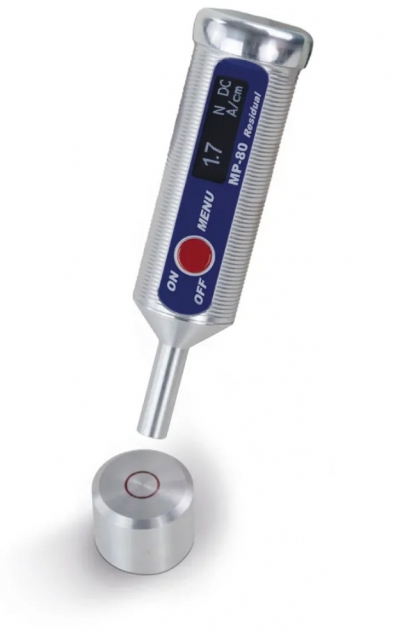

LIST-MAGNETIC MP-80 V2 RESIDUAL MAGNETIC FIELD METER MAGNETOMETER GAUSSMETER FOR MAGNETISM IN METAL

• Measuring units: A/cm – kA/m - Gauss (Oe) – Tesla
• Measuring probe: integrated axial field probe, ø 8mm with defined measuring distance of 2.0 mm
• Measuring range DC: Residual Magnetism / Remanence in the range 0-100 A/cm
• Accuracy: in the homogeneous field ± 0,3 A/cm below 10 A/cm,
• ± 3% of measured value from 10 A/cm
• Resolution: 0.1 A/cm or 0.01 mT

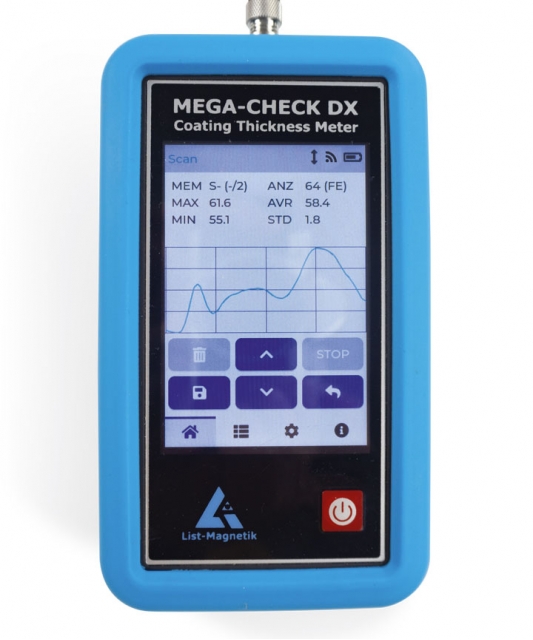

COATING THICKNESS METER LIST-MAGNETIK MEGA-CHECK DX

• Application: Depending on the selection of the probe, measurement of paint, lacquer, plastic and galvanic layers on steel, measurement of insulating layers on non-ferrous metals with automatic recognition of the base material.
• Standards: ISO 2178, ISO 2360, BS 5411, ASTM
• Measuring probe: measuring range depending on probe on steel and iron up to 30 mm (30,000 µm), on NF metals up to 2 mm (2000 µm), minimum area, minimum radius of curvature and calibration value are also depending on probe

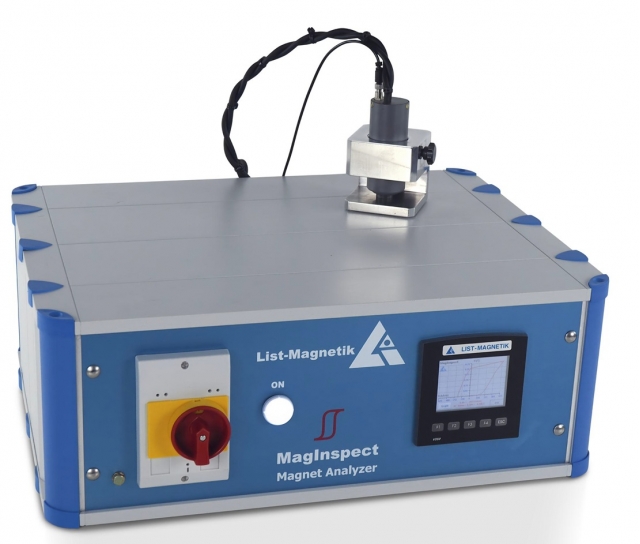

LIST MAGNETIK MAGINSPECT MAGNET ANALYZER
