Microhmmeters | MEGGER

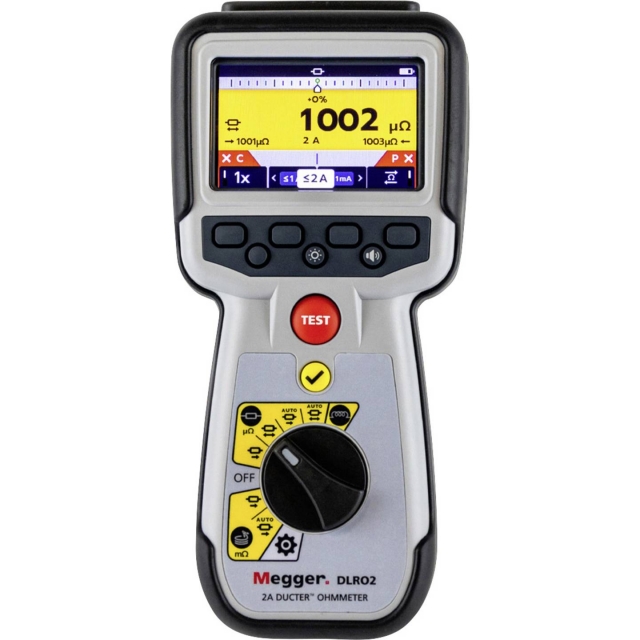

• The DLRO2X is a robust 2 A low resistance ohmmeter
• designed for precise, reliable measurements across various applications, including industrial, railway, and avionic sectors



• CAT IV 600 V for safe operation
• Light, 100 A, battery powered unit for portability
• High noise immunity for stable readings
• Smooth DC output for circuit breaker testing



• Interchangeable test lead terminations
• High or low output power selection for condition diagnosis
• Operates from battery or AC mains supply
• Protected to 600 V without blowing a fuse, test lead live voltage warning light



• Capable of generating up to 300A, ideal for measuring low resistance in electrical contacts and materials.
• Battery Supplied
• Lightweight Design
• Auto Range
• Wi-Fi Communication



• Safe test DualGround
• Auto range: 1 uOhm to 1000 mOhm
• Bluetooth® PC communication
• Complies with IEEE and IEC standards



• Up to 220 A
• Battery powered
• Light weighs only 1 kg
• Safe test - DualGround™
• Auto range: 1 µO to 1000 mO
• Bluetooth® PC communication
• Complies with IEEE and IEC standards



• High or low output power selection for condition diagnosis
• Rechargeable battery or line power supply, continuous operation, even with dead battery
• 10 A for 60 seconds, less time waiting to cool, great for charging inductance
• High input protection to 600 V, inadvertent connection to line or UPS voltage will not blow a fuse
• Heavy duty case: IP 65 lid closed, IP54 operational (battery operation only)
• Rotary switch selects one of five test modes, including auto start on connection, giving ease of use



• up to 10A current
• Accurate results in under three seconds
• Auto current reversal cancels standing emfs
• Fuse protected to 600 V
• NiMH battery reduces weight
• 250 mW power limit (with optional override) to avoid heating the test sample



• Small and weighs less than 15kg
• Test currents from 10 A to 200 A d.c.
• 0.1 µO best resolution
• On board memory for up to 300 test results and notes
• RS232 port to download stored results or for real time output to a printer
• Supplied complete with 5m test leads and download software



• Small and weighs less than 33 lbs (15 kg)
• Test currents from 10 A to 600 A dc
• 0.1 µohms best resolution
• On board memory for up to 300 test results and notes
• RS232 port to download stored results or for real time output to a printer
• Supplied complete with 16.4 ft (5 m) test leads and download software



• Easy-to-use
• Automatic range settings

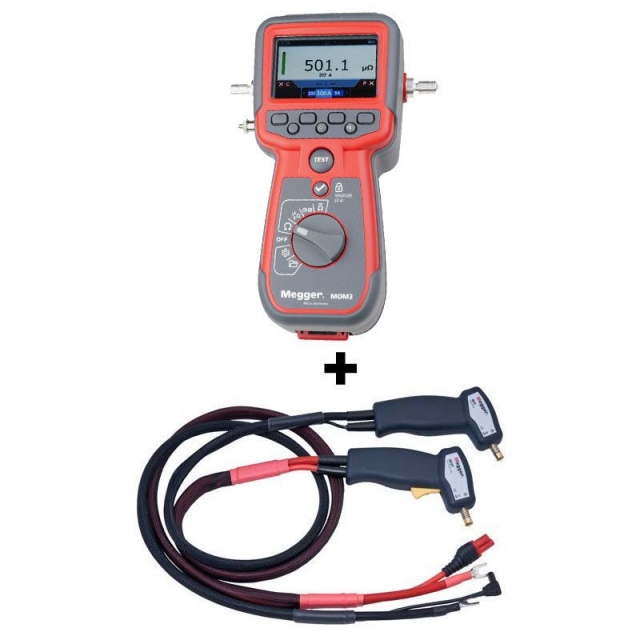

• MOM Win PC software



• Compact and tough
• Straight forward to use
• 600 A output current



• Easy to operate
• Designed for rugged field use
• Highly flexible cable connections
• Portable and lightweight, weighs only 14 kg (31 lbs)



• Safer testing using the patented DualGroundâ„¢ technology to test circuit breakers with both sides grounded
• Fully automatic testing- microprocessor controlled
• Wide measuring range and test currents
• High powered and light



• High test current
• Four terminal measurement
• Two measuring ranges (2000 mO. and 20,00 mO.)and maximum resolution of 0,01 mO.
• Protected against inadvertent connection to the mains supply
