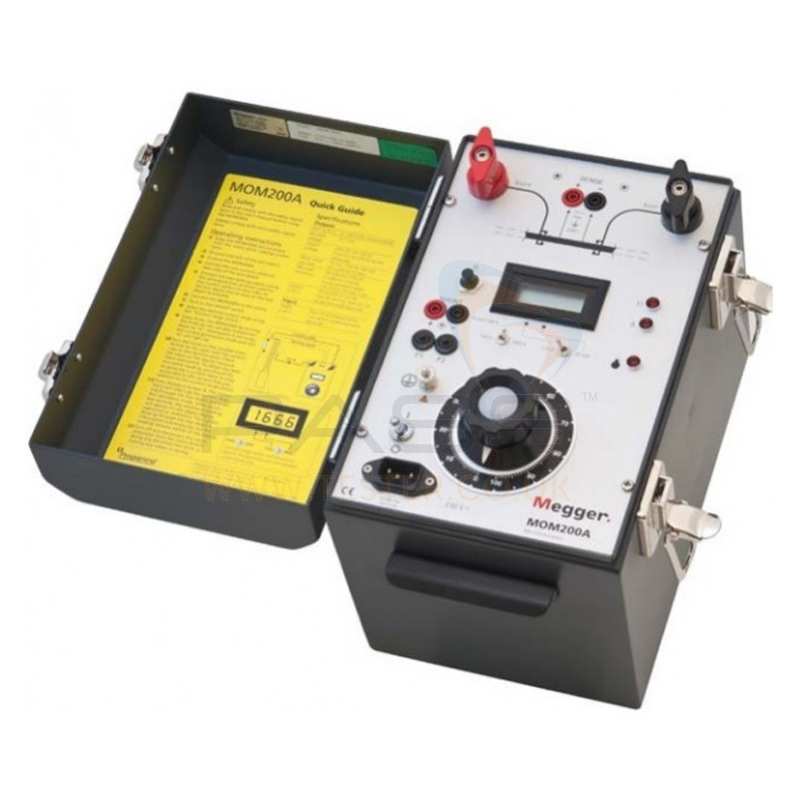

Micro-Ohmmeter Megger - MOM200A

Code: Megger - MOM200A




Datasheet PDF, 0.22 Mb

Description

The MOM200A is designed to check and measure contact resistances in highvoltage circuit breakers, disconnecting switches (isolators) and busbar joints. This unit is an excellent choice when 200 amperes or less are needed for measurement.



Features:

  • Measures contact resistance in circuit breakers, disconnecting switches, busbar connections, safety devices, etc.
  • Easy to operate
  • Designed for rugged field use
  • Highly flexible cable connections
  • Portable and lightweight, weighs only 14 kg (31 lbs)
