• Small, rugged, lightweight and powerful
• Operate with or without a computer
• Intuitive manual operation with Smart Touch View Interface
• High current, high power (75 Amps/400 VA rms)
• Network interface provides IEC 61850 test capabilities
• Fully automated testing using AVTS software

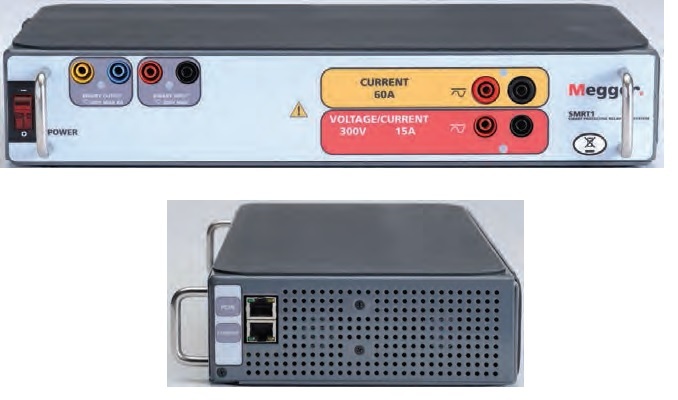

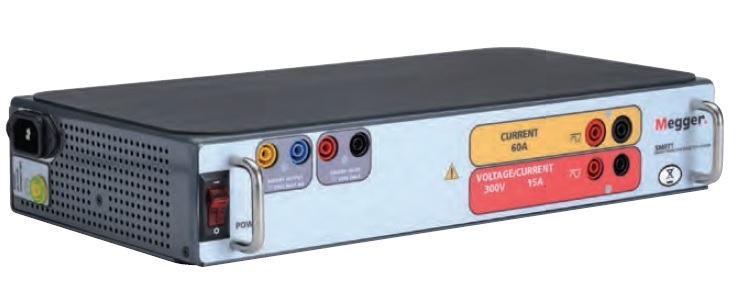

As a stand-alone unit the SMRT1 has the "smart" combination of high compliance voltage and high current to test electromechanical, solid-state and microprocessor-based overcurrent relays, including voltage controlled, voltage restraint and directional overcurrent; test under/over voltage, single-phase impedance, single-phase power, directional, synchronizing, auto-synchronizing, negative sequence under/over voltage, current balance, frequency, volts/hertz, reclosing, thermal, and various other relays, see the Applications Guide for more.

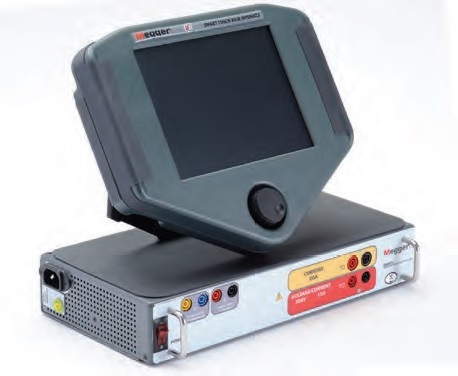

The SMRT1 test system has the ability to be manually controlled with Megger’s new Smart Touch View Interface™ (STVI). The STVI, with its large, full color, high resolution, TFT LCD touch screen allows the user to perform manual, steady-state and dynamic testing quickly and easily using the manual test screen, as well as using built-in preset test routines for most popular relays.

The STVI eliminates the need for a computer when testing virtually all types of relays. Menu screens and touch screen function buttons are provided to quickly and easily select the desired test function. Tests results can be saved to the PowerDB™ ONBOARD for download to a memory stick to transfer or print test reports. For full automatic testing the SMRT1 may be controlled by Megger Advanced Visual Test Software (AVTS). AVTS is a Microsoft® Windows® XP®/Vista™/7 compatible software program designed to manage all aspects of protective relay testing using the new Megger SMRT.

Standard accessories

Included Software Part Number

AVTS Basic with STVI Application CD 81302

Software Options

AVTS Basic with IEC 61850 Megger GOOSE Configurator, and STVI Application CD 1002-103

AVTS Advanced with STVI Application CD 81570

AVTS Advanced Test with IEC 61850 Megger GOOSE Configurator, and STVI Application CD 1001-106

AVTS Professional with STVI Application CD 81571

AVTS Professional Test with IEC 61850 Megger GOOSE Configurator, and STVI Application CD 1002-102

Included Standard Accessories Part Number

Power Cord - Depending on the style number, the unit will come with one of the following,

Line cord, North American 620000

Line cord, Continental Europe with CEE 7/7 Schuko Plug 50425

Line cord, International color coded wire 15065

Line cord, United Kingdom 90002-989

Ethernet cable for interconnection to PC, 210cm (7 ft.) long (Qty. 1 ea) 90003-684

Instruction manual CD 80989

Recommended options
