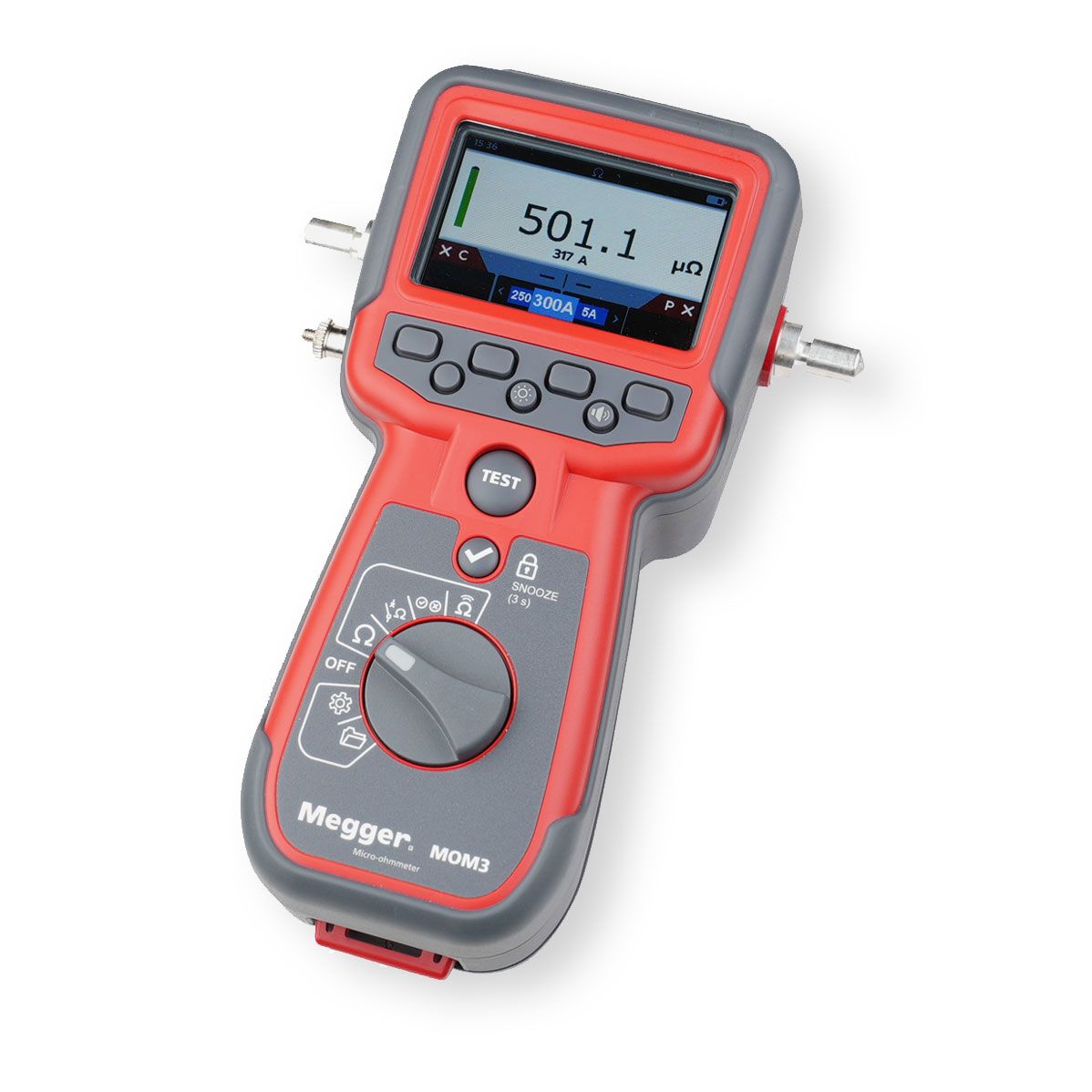

The MOM3 is a handheld 300 A micro-ohmmeter designed for checking and measuring contact resistances in high-voltage circuit breakers, disconnecting switches (isolators), and busbar joints.

High Current Capacity

Capable of generating up to 300A, ideal for measuring low resistance in electrical contacts and materials.

Battery Supplied

Lightweight Design

Auto Range

Wi-Fi Communication

About the product

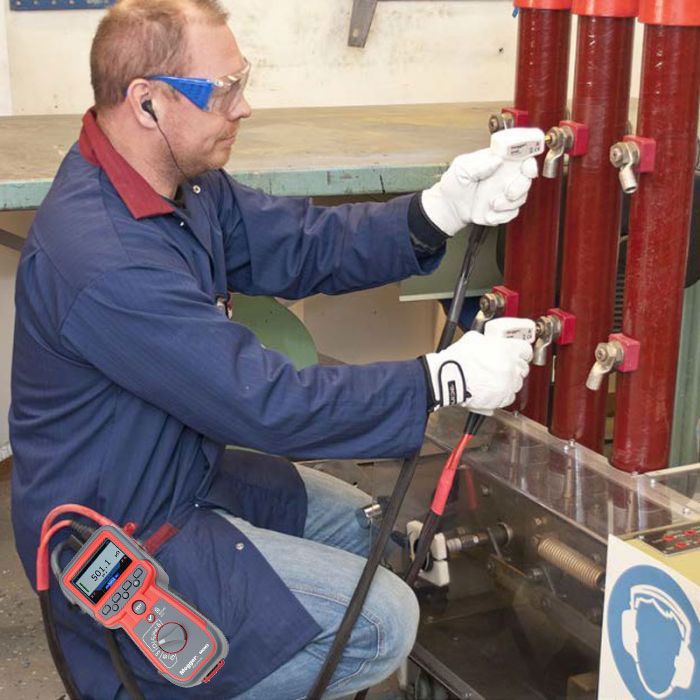

The MOM3 handheld 300 A micro-ohmmeter is purpose-built for measuring the resistance of critical electrical components such as circuit breaker contacts, busbar joints, and other high-current links. Its effectiveness in conducting these measurements is achieved using an ultracapacitor, a technology that distinguishes it from conventional capacitors. The size and great interface of the product makes it very practical in use for daily work on site.

The MOM3 micro-ohmmeter includes:

Ultra Capacitor Technology: The MOM3 employs an ultracapacitor that can store a significant amount of energy compared to standard capacitors. This capability allows it to generate a very high output current during discharge, a crucial requirement for accurately measuring low resistances in high-current components.

Low Internal Resistance: The ultra capacitor's low internal resistance ensures that the energy it stores is efficiently and effectively discharged, contributing to the micro-ohmmeter's high accuracy when measuring resistance.

Versatile Use: The MOM3 micro-ohmmeter is designed to be highly versatile, making it suitable for use in various settings. It can be employed anywhere to measure low resistance values with a high degree of accuracy, ensuring reliable results.
