Megger SVERKER 750 780 Programma Single Phase Relay Tester

Code: Megger SVERKER 750 780 Programma SVERKER750



Datasheet PDF, 0.98 Mb


Description

• The engineer’s toolbox for all single phase relay testing!
• Stand-alone functionality
• Rugged and reliable for field use

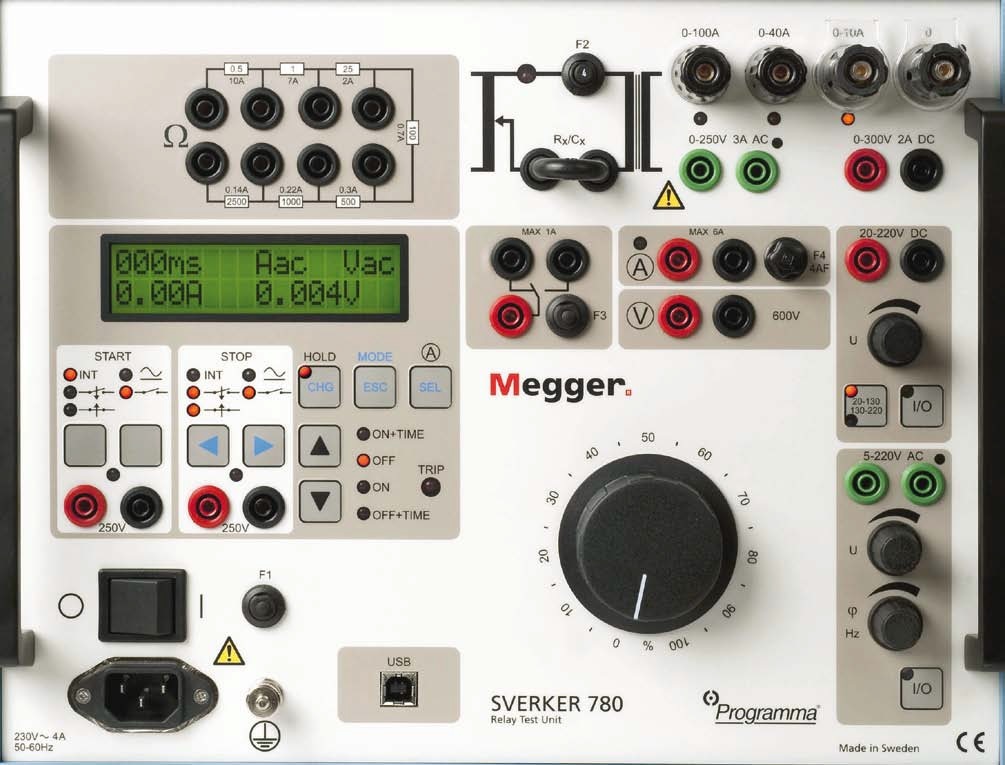

The SVERKER750 and SVERKER780 Relay Test Set are the engineer's toolbox. The control panel features a logical layout, SVERKER 650 users will find it comfortably familiar and will be able to start work right away.

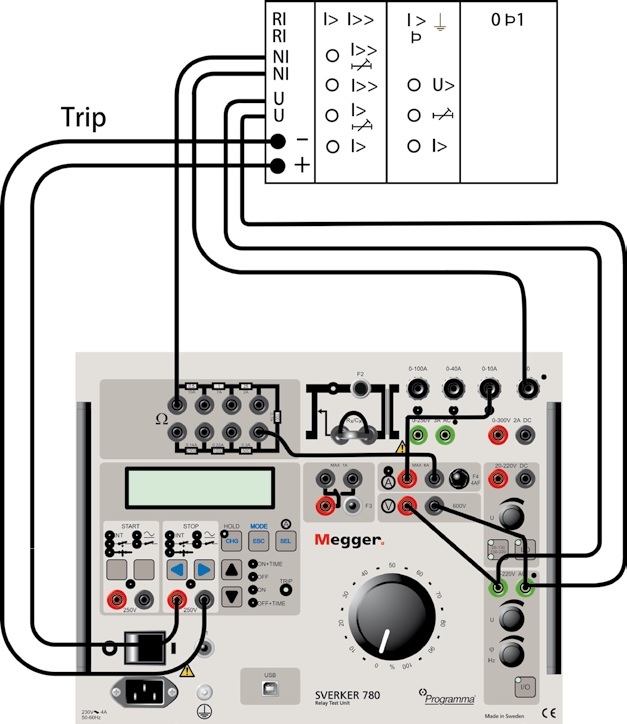

The SVERKER750 and SVERKER780 features many functions that make relay testing more efficient. For example, its powerful measurement section can display (in addition to time, voltage and current) Z, R, X, S, P, Q, phase angle and cos f. The voltmeter can also be used as a 2nd ammeter (when testing differential relays for example). All values are presented on a single easy-to-read display.

You can also test directional protective equipment efficiantly by means of the built-in variable voltage source. In SVERKER780 this has a continuous phase shift function and adjustable frequency as well. Automatic reclosing devices can also be tested - just as easily.

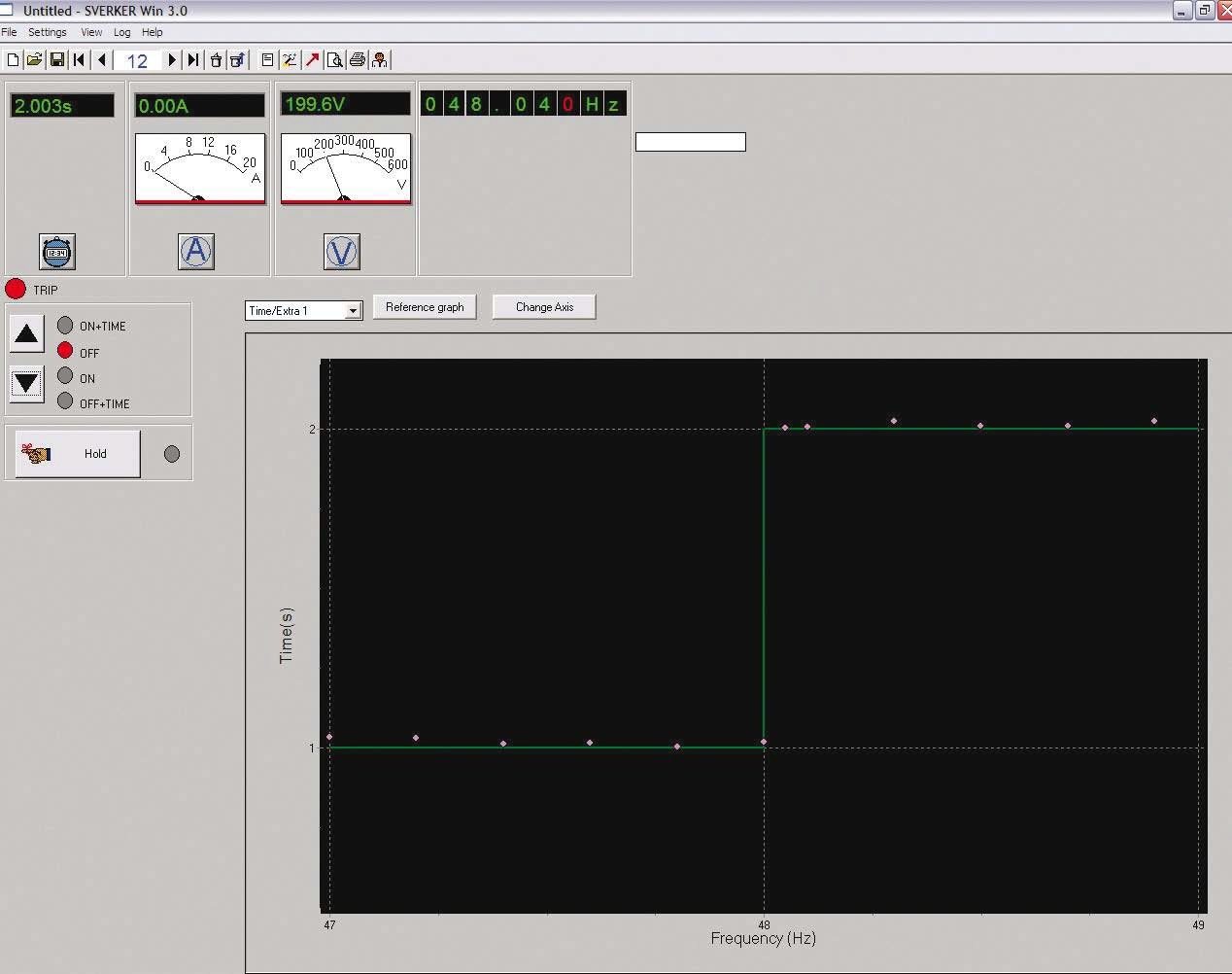

Designed to comply with EU standards and other personal and operational safety standards, SVERKER750 and SVERKER780 are also equipped with a serial port for communication with personal computers and the PC software SVERKER Win.

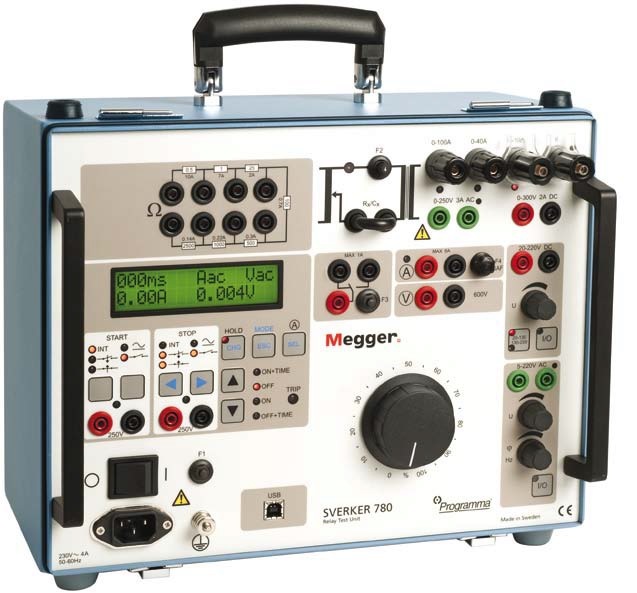

Since the compact SVERKER weighs only 18 kg (39 lbs), it’s easy to move from site to site.

Two or more SVERKER units can also be synchronized, which allows the user to operate a basic 3-phase test set.



Standard accessories

SVERKER 750

Incl. Test lead set GA-00030 and Transport case

GD-00182

Language: English, French, German, Spanish, Swedish

115 V Mains voltage CD-11190

230 V Mains voltage CD-12390



SVERKER 750

Incl. Test lead set GA-00030 and IP65 HD-case

Language: English, French, German, Spanish, Swedish

115 V Mains voltage CD-13190

230 V Mains voltage CD-13390



SVERKER 750

Incl. Test lead set GA-00030 and Transport case

GD-00182

Language: Czech, English, German, Swedish, Turkish

230 V Mains voltage CD-12392



SVERKER 750

Incl. Test lead set GA-00030 and Transport case

GD-00182

Language: English, French, German, Russian, Swedish

230 V Mains voltage CD-12394



SVERKER 750

Incl. Test lead set GA-00030 and Transport case

GD-00182

Language: Bulgarian, English, French, German, Swedish

230 V Mains voltage CD-12396





SVERKER 780

Incl. Test lead set GA-00030 and Transport case

GD-00182

Language: English, French, Spanish

115 V Mains voltage CD-31190

230 V Mains voltage CD-32390



SVERKER 780

Incl. Test lead set GA-00030 and IP65 HD-case

Language: English, French, Spanish

115 V Mains voltage CD-33190

230 V Mains voltage CD-33390



SVERKER 780

Incl. Test lead set GA-00030 and Transport case

GD-00182

Language: English, German, Swedish

230 V Mains voltage CD-32392



SVERKER 780

Incl. Test lead set GA-00030 and Transport case

GD-00182

Language: Bulgarian, English, Turkish

230 V Mains voltage CD-32394



SVERKER 780

Incl. Test lead set GA-00030 and Transport case

GD-00182

Language: Czech, English, Russian

230 V Mains voltage CD-32396





Recommended options

Optional

SVERKER Win PC Software

Please specify the SVERKER serial number when

ordering.

SVERKER Win contains software, a copy-protection

key and cables (RS232 and USB) for connecting the

PC to SVERKER.

Note that the software key can be installed on a

single SVERKER. The software itself, however, can

be installed on an unlimited number of PCs. CD-8102X

SVERKER Win Upgrade CD-8101X



CSU20A Incl. Cables and Transport case

115 V Mains voltage BF-41190

230 V Mains voltage BF-42390



PSS750 CD-90020

Cable organizer

Velcro straps, 10 pcs. AA-00100
