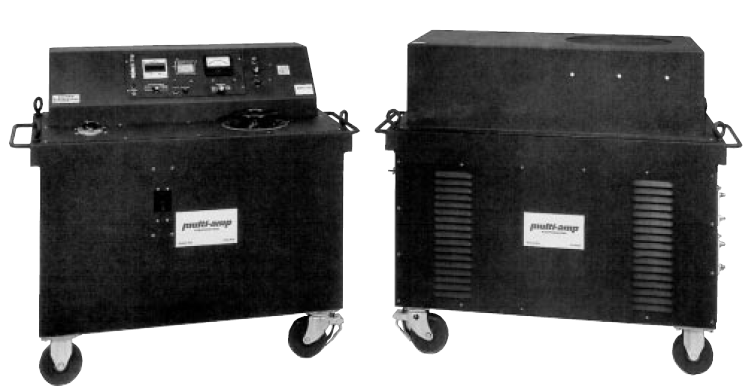

The Model CB-360-DC DC Circuit Breaker Test Set is a mobile, high-current test set designed specifically for testing dc circuit breakers. It incorporates a variable high-current dc output, control circuitry, instrumentation, and overload and short-circuit protection.

Features:

Capable of testing electromechanical or thermal-magnetic trip devices with dc current
Digital timer
High-current output up to 30,000 amperes
