Megger - MS2A Circuit breaker and overcurrent relay test set

Code: Megger - MS2A




Datasheet PDF, 0.09 Mb

Description

The Megger MS-2A test set is used around the world by several thousand utility companies, industrial plants and electrical service organizations.

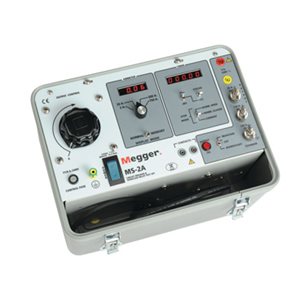

Model MS-2A is a self-contained test set that incorporates a variable high-current output and appropriate control circuitry and instrumentation for testing thermal, magnetic or solid-state motor overload relays, molded-case circuit breakers, ground-fault trip devices and overcurrent relays.



Features:

  • Light Weight, Portable Primary Injection Test Instrument
  • Overcurrent Relay Testing
  • Ground Fault Performance Testing for NEC 230.95
  • Circuit Breaker Testing
