Hipot High Voltage Testers | PRO8

Results 1 - 6 (total: 6) Page    |     1

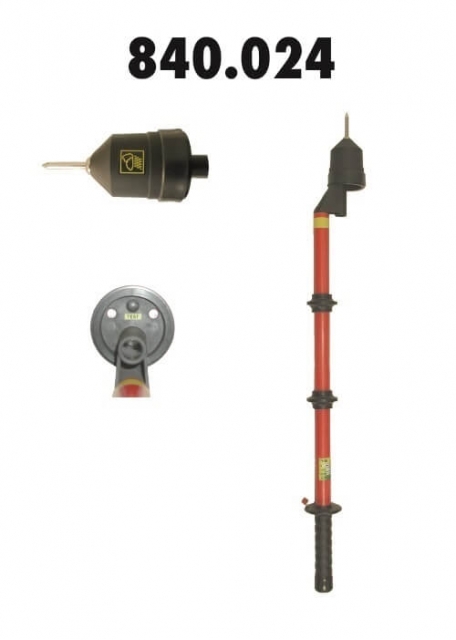

PRO8 840.024 VOLTAGE DETECTOR FOR OUTDOOR USE

• Rated voltage – network/equipment: 22 / 25 kV
• Total length: Ls = 950 mm
• Length of handle: Lr = 160 mm
• Length of insulating part: Li = 560 mm
• Length of detector in space under voltage: La = 230 mm
• Pole diameter: 31 mm
• Weight: 0.65 kg

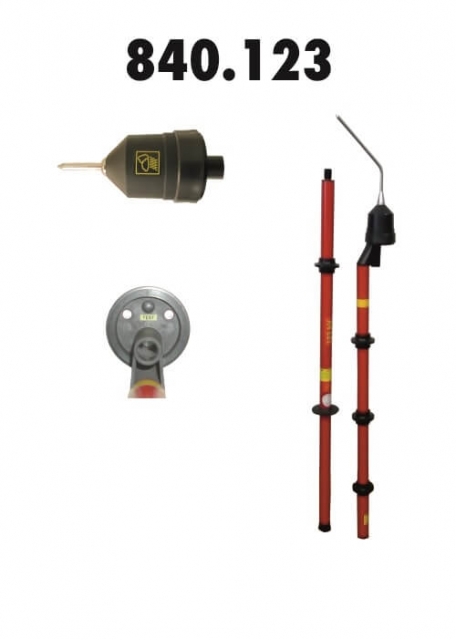

PRO8 840.123 HIGH VOLTAGE PRESENCE INDICATOR 110KV 123KV FOR OUTDOOR USE

• Rated voltage – network/equipment: 110 / 123 kV
• Total length: Ls = 2 170 mm
• Length of handle: Lr = 400 mm
• Length of insulating part: Li = 1 320 mm
• Length of detector in space under voltage: La = 450 mm
• Pole diameter: 31 mm
• Weight: 1.2 kg

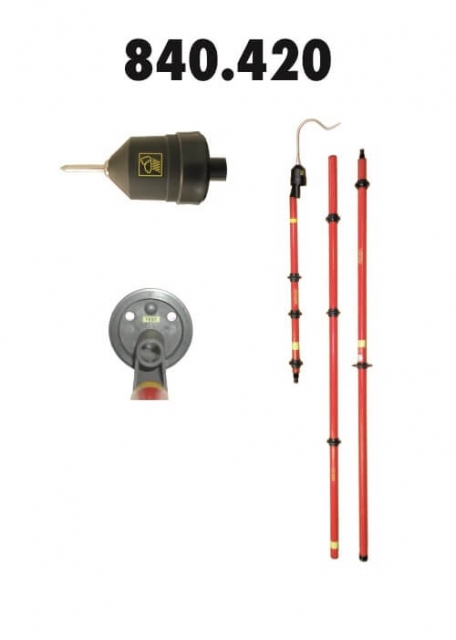

HIGH VOLTAGE DETECTOR FRO OUTDOOR 420KV PRO8 840.420

• Rated voltage – network/equipment: 400 / 420 kV
• Total length: Ls = 5 150 mm
• Length of handle: Lr = 1 000 mm
• Length of insulating part: Li = 3 700 mm
• Length of detector in space under voltage: La = 450 mm
• Pole diameter: 39/31 mm
• Weight: 2.4 kg

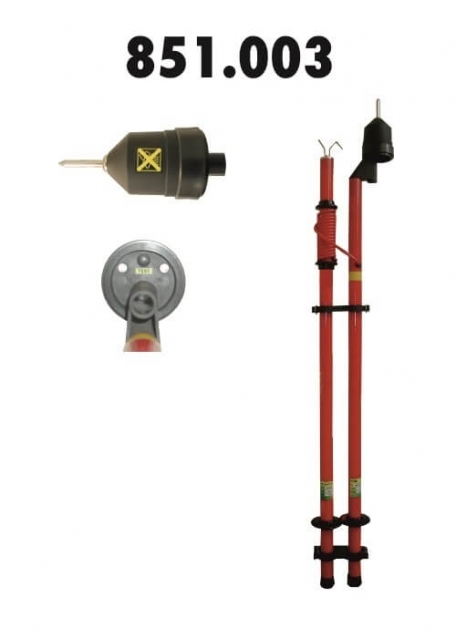

PRO8 851.003 DC VOLTAGE DETECTOR FOR EXTERIOR USE

• Rated voltage: 3 kV DC
• Length of pole with indicator: 1 150 mm
• Length of pole with contact electrode: 1 000 mm
• Length of handles: 160 mm
• Length of connecting cable: 2 200 mm
• Pole diameter: 31 mm
• Weight: 1.5 kg

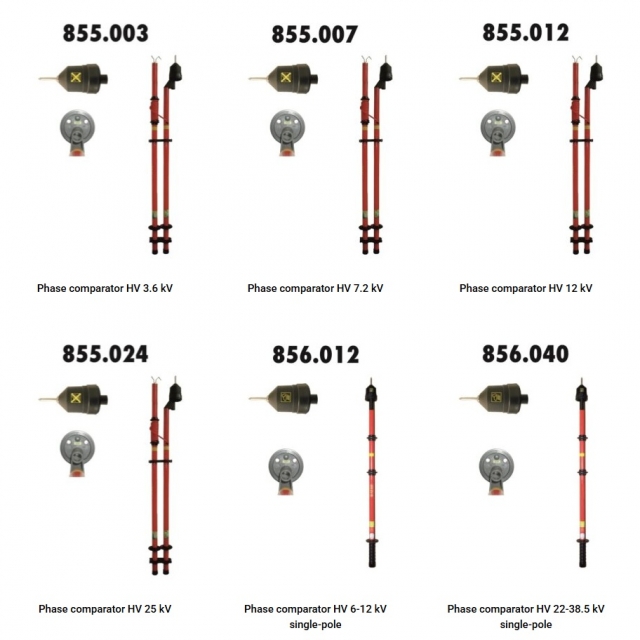

PRO8 856.012 PHASE COMPARATOR 6KV - 12KV

• Rated voltage – network/equipment: 6 – 10 / 12 kV
• Length of pole with indicator + electrode: 1 190 mm
• Length of pole with indicator + extended part + electrode: 1 490 mm
• Length of handle: 160 mm
• Pole diameter: 31 mm
• Weight – short / extended: 0.65 / 0.82 kg

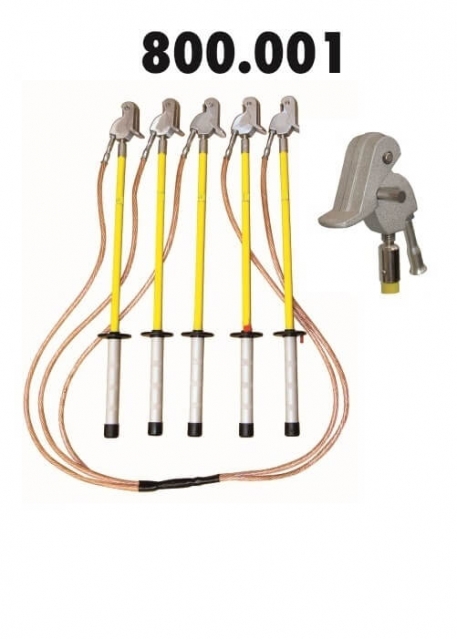

PRO8 800.001 SHORT-CIRCUITING EARTHING EQUIPMENT LV 1 KV ON THE CONDUCTOR OF CIRCULAR CROSS SECTION

• designed for short-circuit making and earthing of the circuit in networks with an earthed or insulated node of the nominal voltage of up to 1000 V
• consists of five insulating poles ended with revolving conductor clamps connected by Cu cables in the transparent insulation
