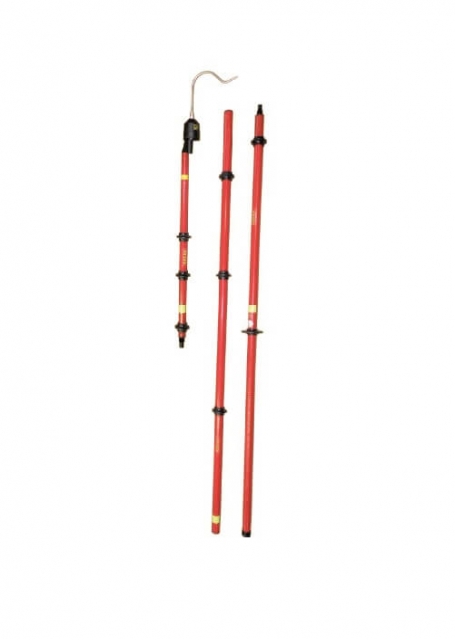

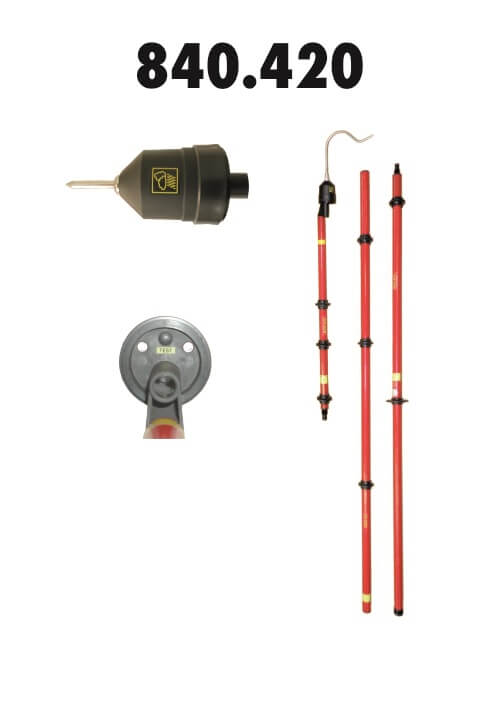

High Voltage Detector fro outdoor 420kV PRO8 840.420

Code: 840.420



Datasheet PDF, 0.38 Mb


Description

Type: 840.420  for outdoor use

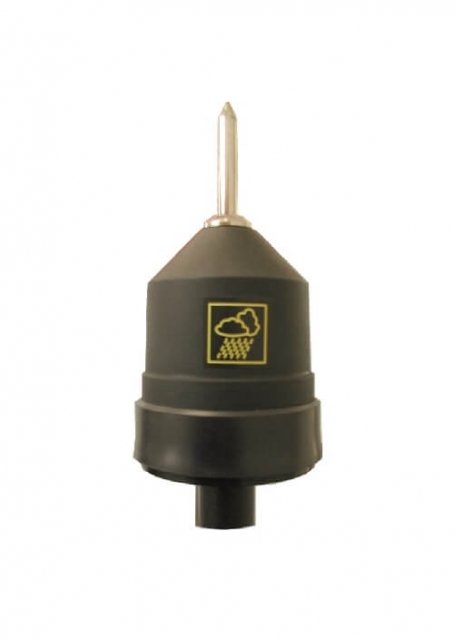

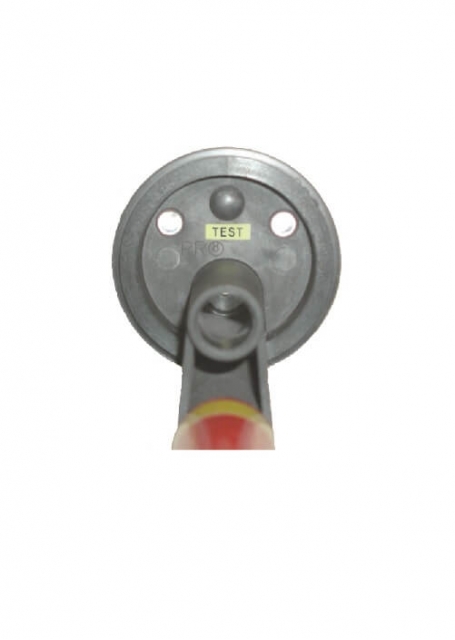

Voltage detectors are designed for detecting the presence of very high voltage (frequency of 50 Hz). Presence of voltage is indicated by light and acoustic signal during direct contact with hot part. Insulating pole is made of glass – fibre laminate which is suitable for its high electrical and mechanical resistance and stability. It fulfills the requirements on the protective equipment for outdoor use. The detector is determined for outdoor use under normal climatic condition. The indication head is resist of water. The handle is equipped with a protective rubber ring (hand guard) and insulating part with rubber rings to stop water (rain shed). Voltage detectors comply with standards ČSN EN 61243-1, IEC 61243-1.

Description
Rated voltage – network/equipment: 400 / 420 kV

Size
Total length: Ls = 5 150 mm
Length of handle: Lr = 1 000 mm
Length of insulating part: Li = 3 700 mm
Length of detector in space under voltage: La = 450 mm
Pole diameter: 39/31 mm
Weight: 2.4 kg
Indication type: capacitive detector
Group III: indication with two active signal – voltage present
Climatic Class N: temperature -25°C – +55°C, humidity 20% – 96%


More products PRO8

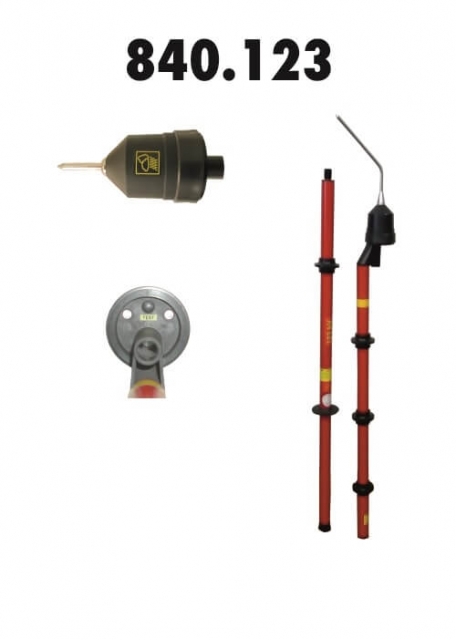

PRO8 840.123 HIGH VOLTAGE PRESENCE INDICATOR 110KV 123KV FOR OUTDOOR USE

• Rated voltage – network/equipment: 110 / 123 kV
• Total length: Ls = 2 170 mm
• Length of handle: Lr = 400 mm
• Length of insulating part: Li = 1 320 mm
• Length of detector in space under voltage: La = 450 mm
• Pole diameter: 31 mm
• Weight: 1.2 kg

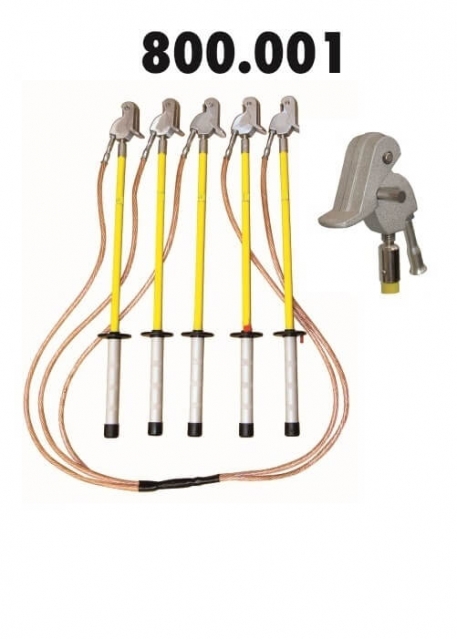

PRO8 800.001 SHORT-CIRCUITING EARTHING EQUIPMENT LV 1 KV ON THE CONDUCTOR OF CIRCULAR CROSS SECTION

• designed for short-circuit making and earthing of the circuit in networks with an earthed or insulated node of the nominal voltage of up to 1000 V
• consists of five insulating poles ended with revolving conductor clamps connected by Cu cables in the transparent insulation

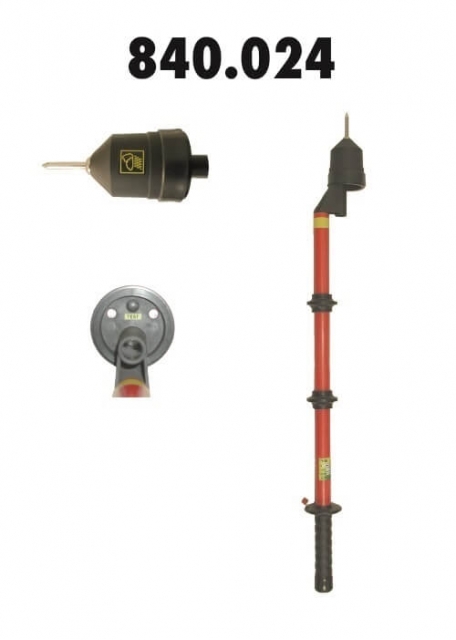

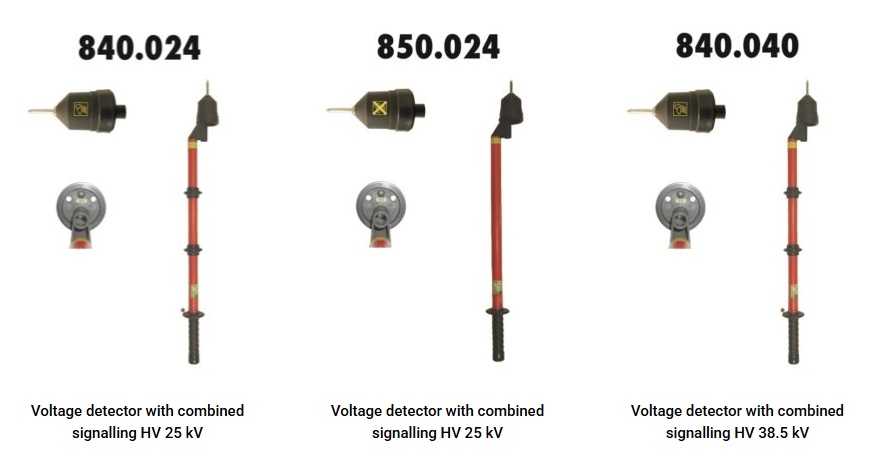

PRO8 840.024 VOLTAGE DETECTOR FOR OUTDOOR USE

• Rated voltage – network/equipment: 22 / 25 kV
• Total length: Ls = 950 mm
• Length of handle: Lr = 160 mm
• Length of insulating part: Li = 560 mm
• Length of detector in space under voltage: La = 230 mm
• Pole diameter: 31 mm
• Weight: 0.65 kg


HIGH VOLTAGE DETECTOR FRO OUTDOOR 420KV PRO8 840.420

• Rated voltage – network/equipment: 400 / 420 kV
• Total length: Ls = 5 150 mm
• Length of handle: Lr = 1 000 mm
• Length of insulating part: Li = 3 700 mm
• Length of detector in space under voltage: La = 450 mm
• Pole diameter: 39/31 mm
• Weight: 2.4 kg

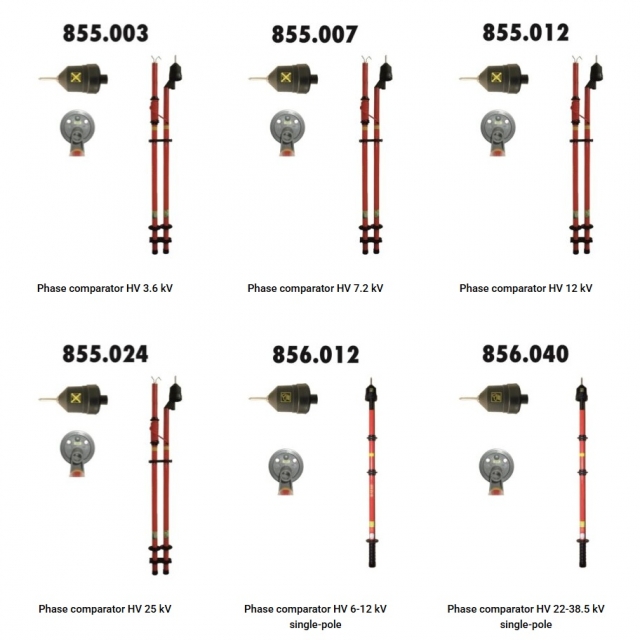

PRO8 856.012 PHASE COMPARATOR 6KV - 12KV

• Rated voltage – network/equipment: 6 – 10 / 12 kV
• Length of pole with indicator + electrode: 1 190 mm
• Length of pole with indicator + extended part + electrode: 1 490 mm
• Length of handle: 160 mm
• Pole diameter: 31 mm
• Weight – short / extended: 0.65 / 0.82 kg

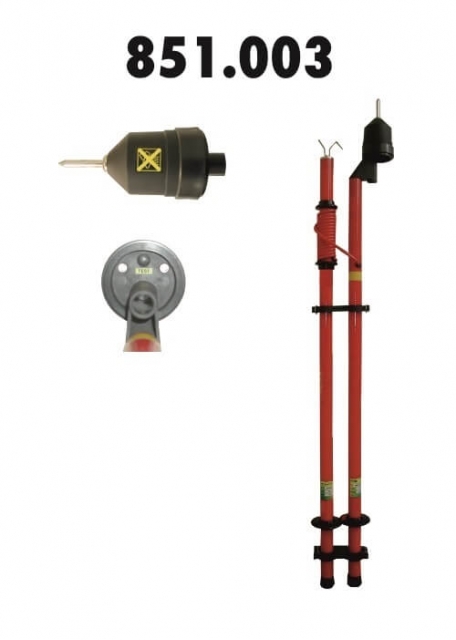

PRO8 851.003 DC VOLTAGE DETECTOR FOR EXTERIOR USE

• Rated voltage: 3 kV DC
• Length of pole with indicator: 1 150 mm
• Length of pole with contact electrode: 1 000 mm
• Length of handles: 160 mm
• Length of connecting cable: 2 200 mm
• Pole diameter: 31 mm
• Weight: 1.5 kg
