PRO8 800.001 Short-circuiting earthing equipment LV 1 kV on the conductor of circular cross section

Code: 800.001



Datasheet PDF, 0.31 Mb


Description

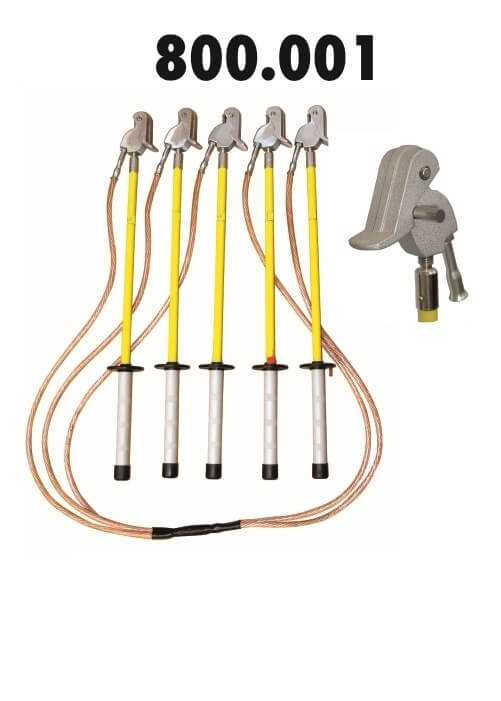

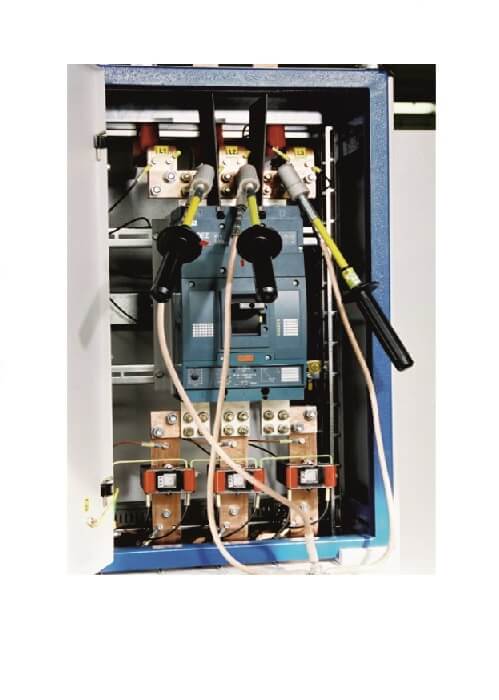

Short-circuiting (earthing) equipment LV 1 kV – on the conductor of circular cross section

Type: 800.001

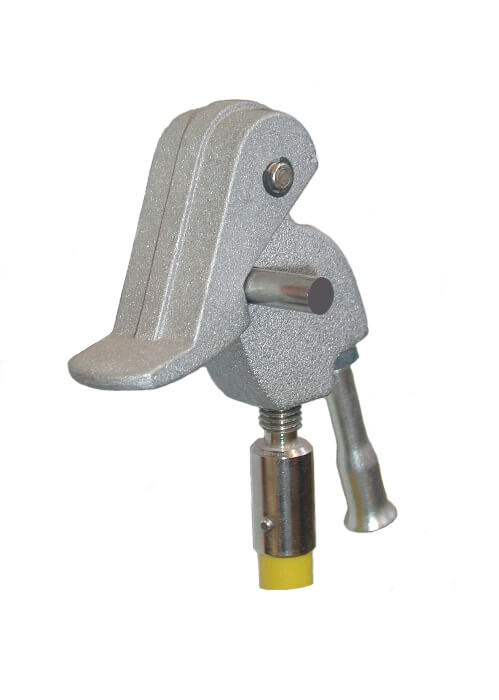

Short-circuiting (earthing) set is designed for short-circuit making and earthing of the circuit in networks with an earthed or insulated node of the nominal voltage of up to 1000 V. The short-circuiting set consists of five insulating poles ended with revolving conductor clamps connected by Cu cables in the transparent insulation. Conductor clamps are serve to connect the set on the conductor of circular cross section. Insulating pole is made of glass-fabric laminate which is suitable for its high electrical and mechanical resistance and stability. It fulfills the requirements on the protection equipment for outdoor use. The set is determined for indoor use, as well as for outdoor use under normal climatic conditions. The handle is provided with the protecting ring (hand guard). Short-circuiting  set complies with standards ČSN EN 61230 ed.2, IEC 61230, DIN 46235. It is possible to modify the model at the custom’s request.

Description
Short-cirtuited conductor: circular cross section 2 – 15 mm
Rated short-time withstanding current: 3 kA / 1 s
Peak factor: 2
Length of pole: 500 mm
Length of handle: 160 mm
Pole diameter: 13 mm
Cross section of cable: 16 mm2
Length of cable: 5 x 800 mm
Tightening of clamps: 4 Nm
Weight of equipment: 3.5 kg
Pole material: glass-fabric laminate for outdoor use
Climatic group: normal -25°C to +55°C


More products PRO8

PRO8 800.001 SHORT-CIRCUITING EARTHING EQUIPMENT LV 1 KV ON THE CONDUCTOR OF CIRCULAR CROSS SECTION

• designed for short-circuit making and earthing of the circuit in networks with an earthed or insulated node of the nominal voltage of up to 1000 V
• consists of five insulating poles ended with revolving conductor clamps connected by Cu cables in the transparent insulation

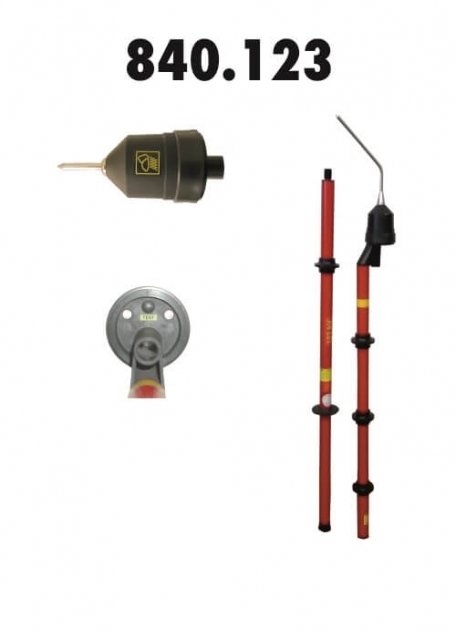

PRO8 840.123 HIGH VOLTAGE PRESENCE INDICATOR 110KV 123KV FOR OUTDOOR USE

• Rated voltage – network/equipment: 110 / 123 kV
• Total length: Ls = 2 170 mm
• Length of handle: Lr = 400 mm
• Length of insulating part: Li = 1 320 mm
• Length of detector in space under voltage: La = 450 mm
• Pole diameter: 31 mm
• Weight: 1.2 kg

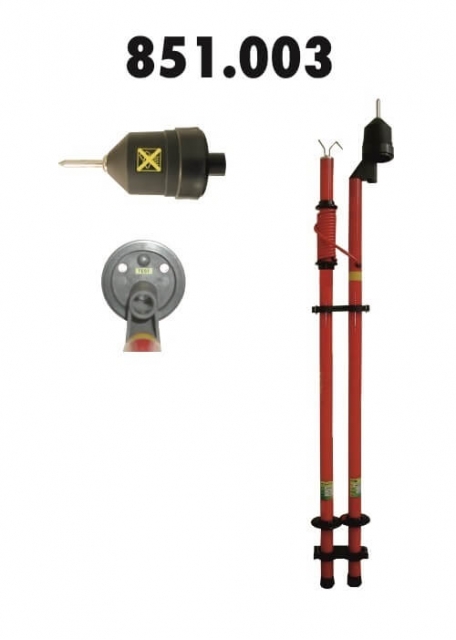

PRO8 851.003 DC VOLTAGE DETECTOR FOR EXTERIOR USE

• Rated voltage: 3 kV DC
• Length of pole with indicator: 1 150 mm
• Length of pole with contact electrode: 1 000 mm
• Length of handles: 160 mm
• Length of connecting cable: 2 200 mm
• Pole diameter: 31 mm
• Weight: 1.5 kg

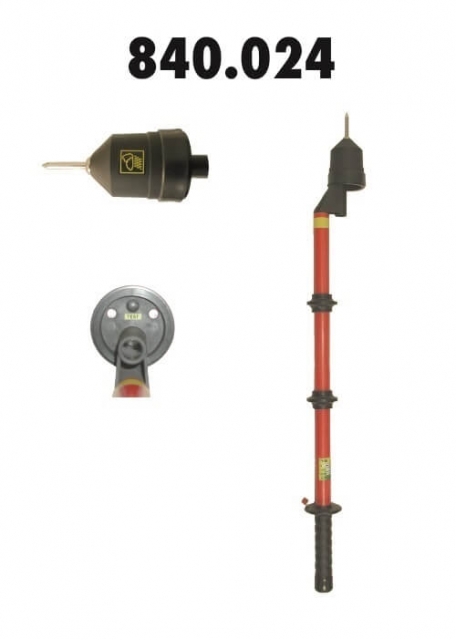

PRO8 840.024 VOLTAGE DETECTOR FOR OUTDOOR USE

• Rated voltage – network/equipment: 22 / 25 kV
• Total length: Ls = 950 mm
• Length of handle: Lr = 160 mm
• Length of insulating part: Li = 560 mm
• Length of detector in space under voltage: La = 230 mm
• Pole diameter: 31 mm
• Weight: 0.65 kg

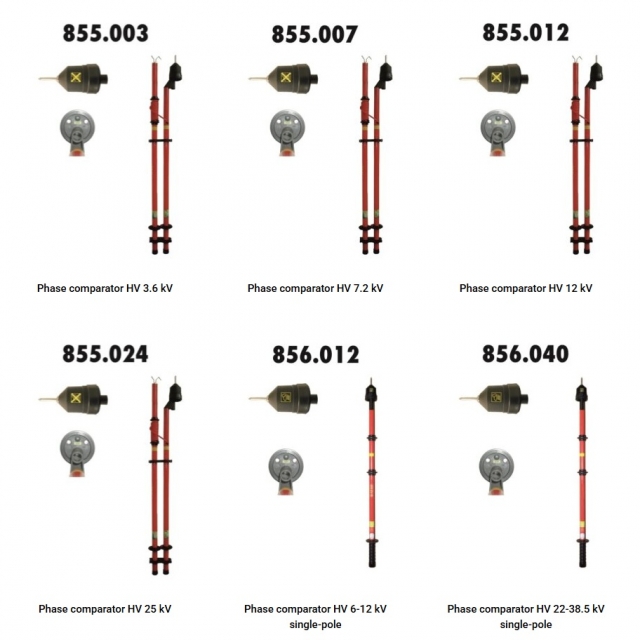

PRO8 856.012 PHASE COMPARATOR 6KV - 12KV

• Rated voltage – network/equipment: 6 – 10 / 12 kV
• Length of pole with indicator + electrode: 1 190 mm
• Length of pole with indicator + extended part + electrode: 1 490 mm
• Length of handle: 160 mm
• Pole diameter: 31 mm
• Weight – short / extended: 0.65 / 0.82 kg

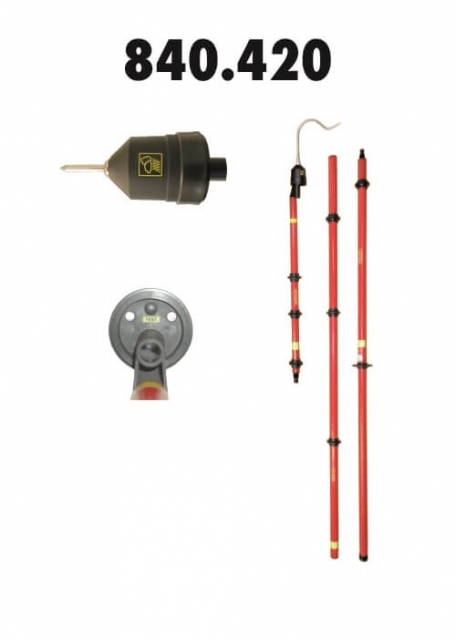

HIGH VOLTAGE DETECTOR FRO OUTDOOR 420KV PRO8 840.420

• Rated voltage – network/equipment: 400 / 420 kV
• Total length: Ls = 5 150 mm
• Length of handle: Lr = 1 000 mm
• Length of insulating part: Li = 3 700 mm
• Length of detector in space under voltage: La = 450 mm
• Pole diameter: 39/31 mm
• Weight: 2.4 kg
