MEGGER IMT100 Multifunction Industrial Tester for photovoltaic installations

Code: IMT100 IMT-100 1015-518




Datasheet PDF, 0.35 Mb


Description

IMT100 industrial multi-tester
Powerful 3-in-1 tester for safe, accurate PV installation
Critical photovoltaic testing with just one instrument. Safe, unique and precise tests to PV standards with features for working on large sites.

  • Exceptionally safe to use
  • Complete suite of insulation resistance
  • Ready for outdoor conditions
  • Worry- free battery supply
  • Full set of detachable test leads
  • Detects common installation faults in PV systems

About the product
Combining three instruments in one, Megger’s unique handheld IMT100 multifunction tester qualifies solar PV (photovoltaic) installations. Installers and maintainers need only add a current clamp to their toolbox for complete IEC 62446-2 Category 1 coverage.

The instrument is exceptionally safe to use, with fast detecting circuits. It accurately tests low resistance, continuity and insulation resistance, measuring up to 200 GΩ with a resolution of 0.1 kΩ. Testing uses two-, three- and four-terminal methods.

Operation is intuitive with a clear full-colour graphic display. Simple go/no-go tests combine with extensive fault finding and reporting for certification and review.

The instrument meets IP54 and is rugged and reliable for rooftop operation. A carry case holds all the accessories for easy portability around large sites.

The IMT100 has rechargeable batteries and is user upgradeable via USB. It also meets the UN EEC R100 Regulation for Hybrid and Electric Vehicle testing.




Standard accessories

Description Part number
IMT100 Industrial Multi Tester 1015-518

Included accessories:
Hook strap assembly
Multipurpose industrial carrycase
SP5 remote probe 1007-157
Temperature probe, T type CAT III 600 V 1012-067
IR lead set (comprising of):
3 x Grabber Clips (Red, Black and Blue) 1012-069
CAT III 1000 V, CAT IV 600 V
3 x Test probes (red, black and blue), long reach (100 mm),
CAT IV 600 V 1012-066
Kelvin clip lead set CAT III 600 V (comprising of): 1011-928
2 x Kelvin Clip leads, 2 meters, 4 mm Right Angled Connectors
(4), Single (2-core) cable.
Kelvin probe lead set CAT III 600 V (comprising of): 1011-929
2 x Kelvin Probe leads, 2 meters, 4 mm Right Angled Connectors
(4), Single (2-core) cable.
Replaceable Kelvin Probe Pins (Pack of 4) 1012-064
PV Test Lead Set adaptors (comprising of): 1002-549
(2), MC4-type one red and one black connector adaptors
(2), MC3-type black connector adaptors
Description Part number
IMT100 certificate of test (EN/FR/ES/DE)
IMT100 certificate of calibration
6 x AA rechargeable batteries NiMH (fitted)
Battery charger
Quick start guide




Recommended options

Optional accessories:
Mains charger kit 1007-464
Grabber clip lead set CAT III 1000 V, CAT IV 600 V 1012-069
Test probe set, long reach CAT IV 600 V 1012-066
Test probe set, long reach, CAT II 1000 V 1012-065
Magnetic strap 1010-013



More products MEGGER

MEGGER FREJA 400 PROGRAMMA RELAY TEST SYSTEM FREJA400

• FREJA 403 3x60 A at 300 VA per phase.
• FREJA 406 Up to 6 channels: 3 x 60 A and 3 x 15 A
• FREJA 409 Up to 9 channels: 6 x 60 A and 3 x 15 A
• Voltage outputs : Up to four channels 300 V at 150 VA
• Fully automated testing using FREJA Win software
• PC operated or stand alone using the intuitive graphic touch screen
• High current, high power output (60 A / 300 VArms) per phase
• FREJA 409 provides 3 x 120 A in threephase configuration mode
• FREJA 406 provides 6 currents, and FREJA 409 provides 9 currents for transformer differential testing
• IEC 61850 test capabilities




DIGITAL MULTIMETER MEGGER - DCM340

• DC and AC current and voltage
• 600 A and 600 V
• Resistance and continuity
• 31/2 digit, 4000 count display with backlight
• High resolution digital bargraph



MEGGER IDAX-300 IDAX-350 INSULATION DIAGNOSTIC ANALYZER, TAN DELTA, POWER FACTOR

• Automated measurement and analysis of moisture content, tan delta/power factor and oil conductivity
• Individual temperature correction (ITC) of tan delta/power factor and oil conductivity
• 40% faster measurements with the new IDAX 5.0 SW
• Reliable measurements in high-interference environments
• Multi-function test set for transformer measurements



MEGGER TORKEL-840 TORKEL-860 BS-49094 BS-49096 TELECOM BATTERY LOAD DISCHARGE TESTER FOR UPS CELLS

• used for battery systems ranging from 12 to 250 V
• Batteries can be tested "in service"
• Unit adjusts to include load currents in the test parameters
• User adjustable alarm and shutdown points to avoid excessive discharge
• Easily expandable for larger battery banks using TXL extra load units (option)
• Computerized test operation using TorkelWin software (option)



MEGGER TDR1000/3 TIME DOMAIN REFLECTOMETER & CABLE FAULT LOCATOR

• minimum resolution of 0.1 m and a 5 km maximum range
• Simple operation.
• AUTO set up for instant use.
• Ultra fast pulse for near end fault identification.
• Trace HOLD feature to allow comparison between cables.
• IP54 rating offers real life working.
• Designed for use on all metallic cable pairs.



MEGGER TDR900 TIME DOMAIN REFLECTOMETER & CABLE LENGTH METER

• Full autoranging for measuring the length of power, telephony, CATV and LAN cables, provides distance to an open or short.
• Extra large, high resolution backlit LCD.
• Automatic output impedance control of 25, 50, 75, 100, 125 or 150 ohms.
• User-friendly menu on screen operation.
• Cable length calibration function.
• Internal library of 39 standard cable types.



MEGGER TDR500/3 TIME DOMAIN REFLECTOMETER & CABLE FAULT LOCATOR 1002-227

• minimum resolution of 0.1 m and a 5 km maximum range
• Simple operation.
• AUTO selection of gain and pulse width.
• Ultra fast pulse for near end fault identification.
• Trace HOLD feature.
• IP54 rating offers real life working.
• Designed for use on all metallic cable pairs.



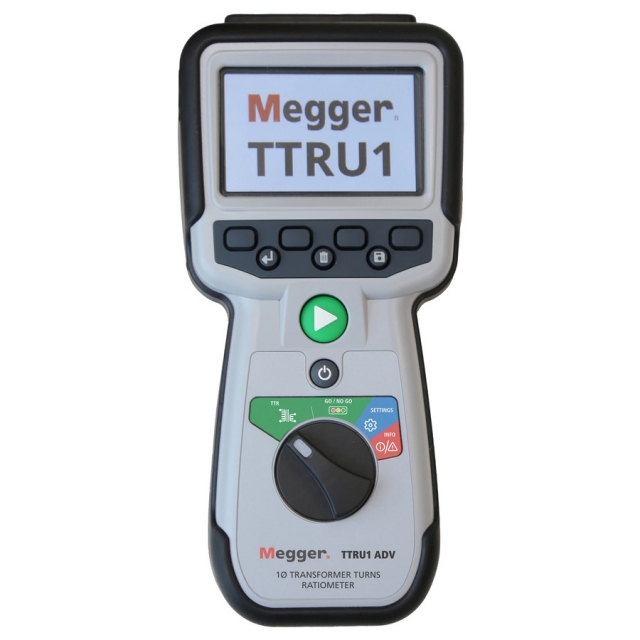

SINGLE PHASE HAND CRANKED TRANSFORMER TURNS RATIO TESTER MEGGER - TTR550005B
