Photovoltaic Kit Megger - PVK320

Code: Megger - PVK320




Datasheet PDF, 0.15 Mb


Description

When installing, commissioning and testing a photovoltaic installation additional instrumentation is required to accompany the usual electrician½s test equipment such as the Megger MFT1730 and MFT1835 multifunction testers.

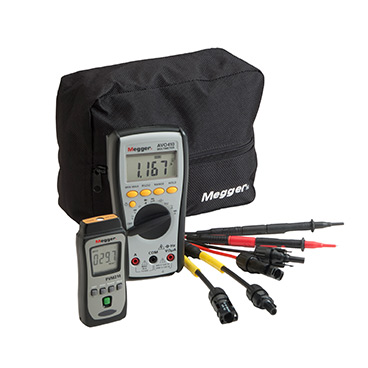

The Megger PVK320 photovoltaic kit offers this additional instrumentation in the form of a PVM210 irradiance meter, a CATIV 10 A dc AVO410 multimeter and a kit of specialist solar test leads.



Features:

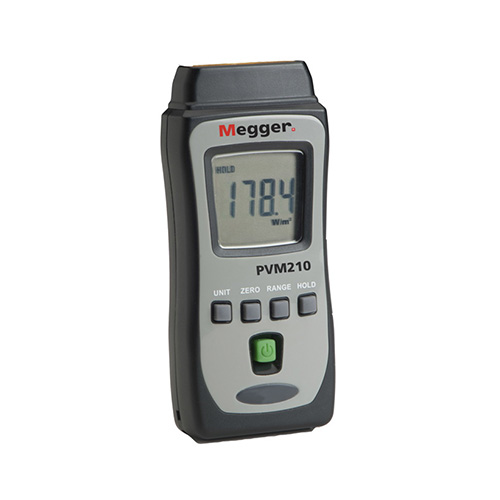

  • PVM210 irradiance meter

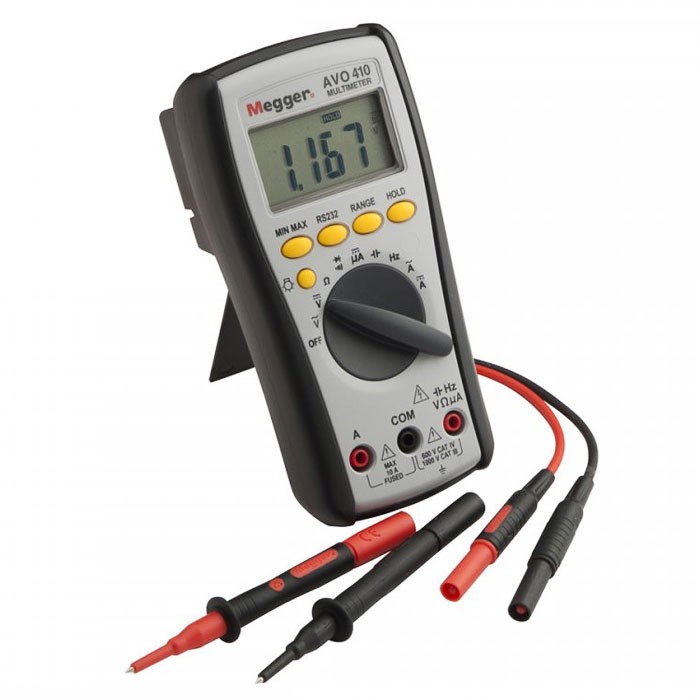

  • AVO410 CATIV TRMS multimeter
  • C4 solar connectors to 4 mm standard plug test leads
  • MC3 to MC4 adapter test leads
  • PV kit storage pouch
