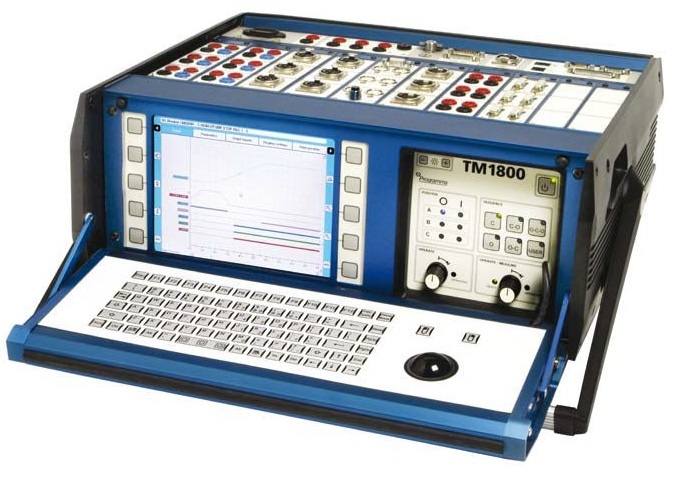

Megger TM1800 Circuit Breaker Analyzer CG-19290 CG-19292 CG-19294 CG-19296

Code: Megger TM1800 CG-19290 CG-19292 CG-19294 CG-19296



Datasheet PDF, 1.42 Mb


Description

• Modular based design - user configurable TM1800 from nine different modules
• Built in PC with CABA Local software - advanced testing with predefined breaker test plans (templates), onsite measurement view and analysis
• Dual ground testing using DCM module - increased safety with both sides of breaker grounded
• Fast and easy testing - Select-Connect-Inspect workflow and high level user interface
• Graphical results for quick interpretation - timing and motion measurements, coil currents
• USB and Ethernet communication interface - for quick back up, LAN connection and printer options
• CABA Win - for advanced data analysis, database interface and common test data archive



The TM1800 is the instrument platform for circuit breaker maintenance, based on more than 20 years’ experience of over 4,000 delivered breaker analyzers. The modular construction makes it possible to configure the TM1800
for measurements on all known types of circuit breakers in operation in today’s power world.





Standard accessories

TM1800 - Configurations



TM1800 Standard CG-19290

Including:

CG-19090 TM1800 Basic Unit 1

CG-19030 TM1800 Control Module 1

CG-19080 TM1800 Timing M/R Module 1

CG-19000 TM1800 Analog Module 1

CG-8000X CABA Win - TM1800 1



TM1800 Standard - for DualGround testing CG-19292

Including:

CG-19090 TM1800 Basic Unit 1

CG-19030 TM1800 Control Module 1

CG-19080 TM1800 Timing M/R Module 1

CG-19192 TM1800 DCM Module 1

CG-19000 TM1800 Analog Module 1

CG-8000X CABA Win - TM1800 1



TM1800 Expert CG-19294

Including:

CG-19090 TM1800 Basic Unit 1

CG-19030 TM1800 Control Module 2

CG-19080 TM1800 Timing M/R Module 2

CG-19000 TM1800 Analog Module 1

CG-19060 TM1800 Timing AUX Module 1

CG-8000X CABA Win - TM1800 1



TM1800 Expert - for DualGround testing CG-19296

Including:

CG-19090 TM1800 Basic Unit 1

CG-19030 TM1800 Control Module 2

CG-19080 TM1800 Timing M/R Module 2

CG-19192 TM1800 DCM Module 2

CG-19000 TM1800 Analog Module 1

CG-19060 TM1800 Timing AUX Module 1

CG-8000X CABA Win - TM1800 1







TM1800 - Separate items

TM1800 Basic Unit

Complete with: HDD module, CABA Local, Transport

case, USB Memory

CG-19090



Control Module (3 independent contacts)

Including:

3 cable sets, 5 m (16 ft), GA-00877

CG-19030



Timing M/R Module (6 channels + 6 PIR)

Including:

3 cable sets, 5 m (16 ft) total length,

2 m (6.5 ft) spread, GA-00850

CG-19080



DCM Module

Including:

3 DCM-cables, 12 m (39 ft)

CG-19190



DCM Module

Including:

6 DCM-cables, 12 m (39 ft)

CG-19192



Analog Module (3 channels)

Including:

3 cable sets, 10 m (33 ft), GA-01005

CG-19000



Digital Module (6 channels) CG-19040



Timing Aux Module (6 channels)

Including:

3 cable sets, 5 m (16 ft), GA-00870

CG-19060



Printer Module

Including:

Paper spool, GC-00040

CG-19050





Recommended options

Optional accessories

See Optional accessories, pages 10- 11

CABA Win

See separate datasheet for CABA Win.



IPS-CBEX

IPS CBEX is a database for circuit breakers and can

be purchased as a stand alone SW or as a server

version and also as a nice priced package together

with TM1800 Expert.

For more information please visit our web site or

contact customer service.
