Cable Fault Locators | MEGGER

Megger TDR2000/2 TDR cable reflectometer fault locator TDR2000/2RM TDR2000/2R

Code: Megger TDR2000/2 TDR2000/2RM TDR2000/2R

Datasheet

PDF, 0.28 Mb

Description

• 20 km range at VF = 0.90
• Monochrome or colour options
• Primary cell or rechargeable options
• Large back lit LCD Display
• Dual cursor measurement
• Intermittent fault location
• Output pulse amplitude and width control
• "TX Null" technology
• No blocking filter required
• Trace Master PC software included
• 15 memory trace storage
• IP54 Rating
• 2 year Warranty

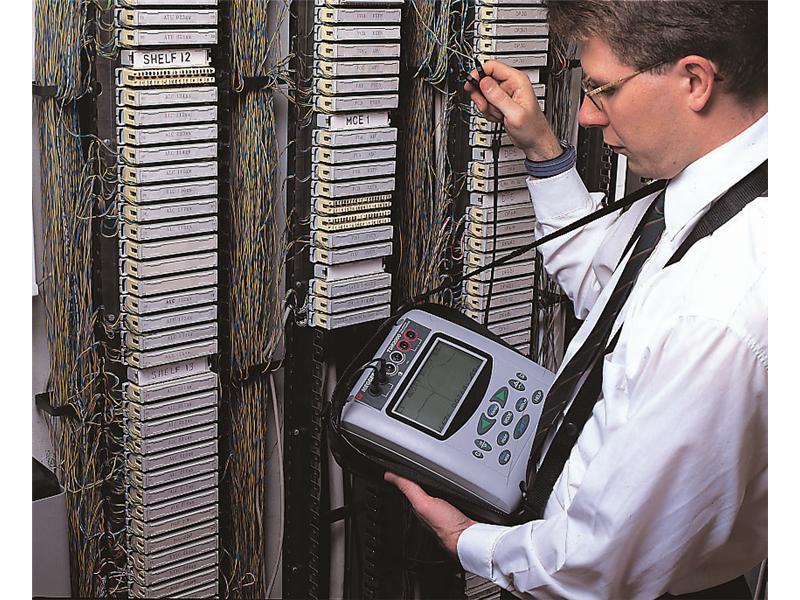

The MEGGER TDR2000/2 is a state of the art, monochrome or colour, dual channel Time Domain Reflectometer, capable of identifying and locating a wide range of faults on metallic cables.

The TDR2000/2 has a minimum resolution of 0.1m and a maximum range of 20 km at VF=0.9 and 16 Km at 0.65 VF. The TDR2000/2 can perform single or dual channel measurements on a wide range of metallic cables. Active channels can be compared with each other or with previously stored traces from memory. Differential channel measurements are possible and cross talk between channels can also be identified.

Standard accessories

Models:

TDR2000/2 Monochrome Drycell TDR2000/2

TDR2000/2RM Monochrome Rechargeable TDR2000/2RM

TDR2000/2R Colour Rechargeable TDR2000/2R

Included Accessories

Test and carry Pouch 6420-114

Serial data lead 25955-025

2 x Miniature Clip Test Lead Set 6231-654

Carry Strap for Pouch 6220-611

Tracemaster software 6111-458

User Guide 6172-662

Included Accessories TDR2000/2R Only

Battery charger

Optional Accessories

Dual fused test lead set (2 pairs) 1002-136

Battery charger UK mains 6121-538

Battery charger US mains 6121-539

Battery charger European mains 6121-605

Single fused lead set (1 pair) 1002-015
