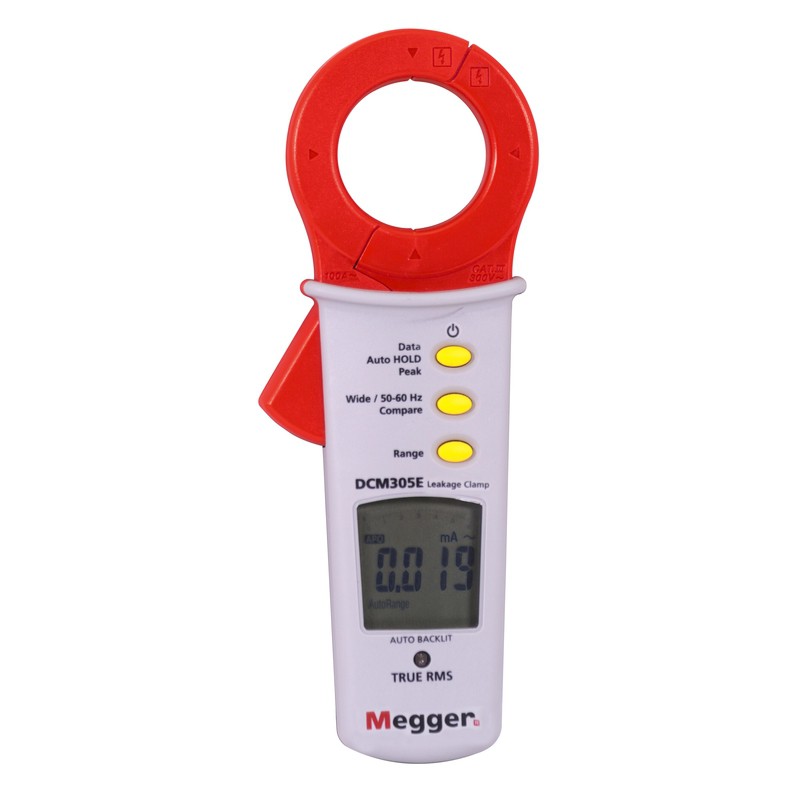

Earth Leakage Clampmeter Megger - DCM305E

Code: Megger - DCM305E



Datasheet PDF, 0.18 Mb


Description

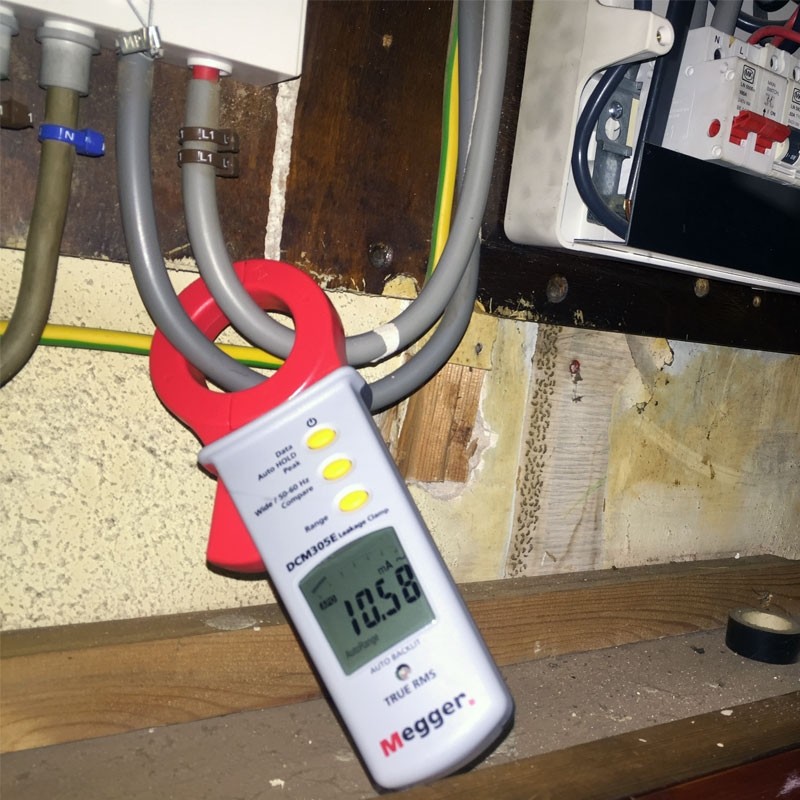

The DCM305E is perfect for identifying and measuring the earth leakage current in a circuit where the RCD keeps tripping out unexpectedly. The measured result will quickly identify whether the earth leakage current present is excessive, causing the RCD to trip, or if the RCD itself is over sensitive or faulty.



Specially designed to check earth leakage currents, the DCM305E is an efficient and highly versatile instrument. It has six ranges 6 mA, 60 mA, 600 mA, 6 A, 60 A, 100 A with a minimum resolution of 0.001 mA on the 6 mA range. Its upper range also enables TRMS AC current measurements up to 100 A.



Additionally, this clampmeter vastly improves measurements on circuits with harmonics/electric noise on the cables using a low pass filter of 50/60 Hz.



Safety is of the utmost importance and with that in mind, the DCM305E exceeds the latest safety design standards IEC1010-2-32 and EMC requirements through a series of safety features that provide you with a safer working environment.



Other key functions include the ½Data Hold½ feature which aids in measurements where there is a problem with accessibility or poor lighting, and the automatic power off feature that extends the battery life.



Features:

  • 0.001 mA resolution
  • Up to 100 A range for standard AC current measurements
  • TRMS reading
  • Low pass filter to aid stability of readings
  • Auto, data and peak hold
  • 40 mm jaw
  • Analogue bargraph display for trending
