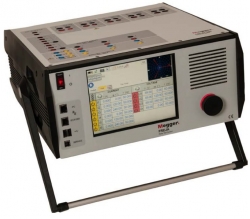

Megger SMRT36 Three Phase Relay Tester

Code: Megger SMRT36




Datasheet PDF, 0.72 Mb


Description

• Small, rugged, lightweight and powerful
• Operate with or without a computer
• Intuitive manual operation with Smart Touch View Interface
• High current, high power (60 Amps/300 VA rms) per phase
• Network interface provides IEC 61850 test capabilities
• Fully automated testing using AVTS Software



For size, weight, and features the SMRT36 is conceivably the smallest, lightest, highest output powered, complete three phase relay test system in the world today. The test system may be customized by adding the number of Voltage-Current, "VIGEN", modules needed for specific test applications. For electric utility use, the SMRT36 with three VIGEN Modules provides complete three-phase testing of three-phase impedance, directional power, negative sequence overcurrent and other devices that require a three-phase four-wire wye connected source.

With three modules, output current and VA is tripled for high instantaneous or high burden overcurrent relays. With the voltage channels converted to currents, the same unit can provide 6-phase current. The SMRT36 VIGEN modules also provide high power in BOTH the voltage and current channels to test virtually all relays.



Standard accessories

Included Software Part Number

AVTS Basic with STVI Application CD 81302



Software Options

AVTS Basic with IEC 61850 Megger GOOSE Configurator, and STVI Application CD 1002-103

AVTS Advanced with STVI Application CD 81570

AVTS Advanced Test with IEC 61850 Megger GOOSE Configurator, and STVI Application CD 1001-106

AVTS Professional with STVI Application CD 81571

AVTS Professional Test with IEC 61850 Megger GOOSE Configurator, and STVI Application CD 1002-102





Included Standard Accessories Part Number

Power Cord - Depending on the style number, the unit will come with one of the following,

Line cord, North American 620000

Line cord, Continental Europe with CEE 7/7 Schuko Plug 50425

Line cord, International color coded wire 15065

Line cord, United Kingdom 90002-989

Ethernet cable for interconnection to PC, 210cm (7 ft.) long (Qty. 1 ea) 90003-684

Instruction manual CD 80989
