MEGGER MIT400/2 MIT410/2 MIT420/2 MIT430/2 CAT IV Insulation Tester with 1000V

Code: MIT400/2 MIT410/2 MIT420/2 MIT430/2 1004-731 1004-735 1004-739 1004-740




Datasheet PDF, 0.44 Mb


Description

MIT400/2 series
CAT IV insulation testers
Designed for a wide range of applications from electrical installations, cable testing, motor testing, automotive and avionics.

About the product
  • Insulation testing up to 1000 V and 200 GΩ range
  • Stabilised insulation test voltage (New)
  • Single range, faster continuity testing from 0.01 Ω to 1 MΩ (New)
  • 600 V T RMS AC and DC voltage measurement
  • Live circuit detection and protection
  • User variable insulation test voltage from 100V to 1000V (New) depending on model
  • Test result storage and Bluetooth® downloading depending on model
  • Rechargeable options for mains and car charging (New)depending on model
  • CAT IV 600 V and IP54

The MIT400/2 series of CAT IV insulation and continuity testers have been designed for use in an exceptionally wide range of applications including electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics and maintenance.

The MIT400/2 series enhances insultation testing with feedback-controlled test voltages to limit overvoltage to 2 %, rather than the industry standard 10 to 20 %. Additionally, a variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps, where application-specific test voltages are required that do not appear in the standard ranges.

Replacing the original MIT400 instruments, the new units feature a redesigned case, back stand, and 6 cell battery compartments with separate fuse access. All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating. What's more, the MIT400/2 makes continuity testing significantly faster, and a single auto-ranging 0.01 Ω to 1.0 MΩ function replaces the 'ohms' and 'kOhms' ranges. Retained are the 200 mA and 20 mA test options.

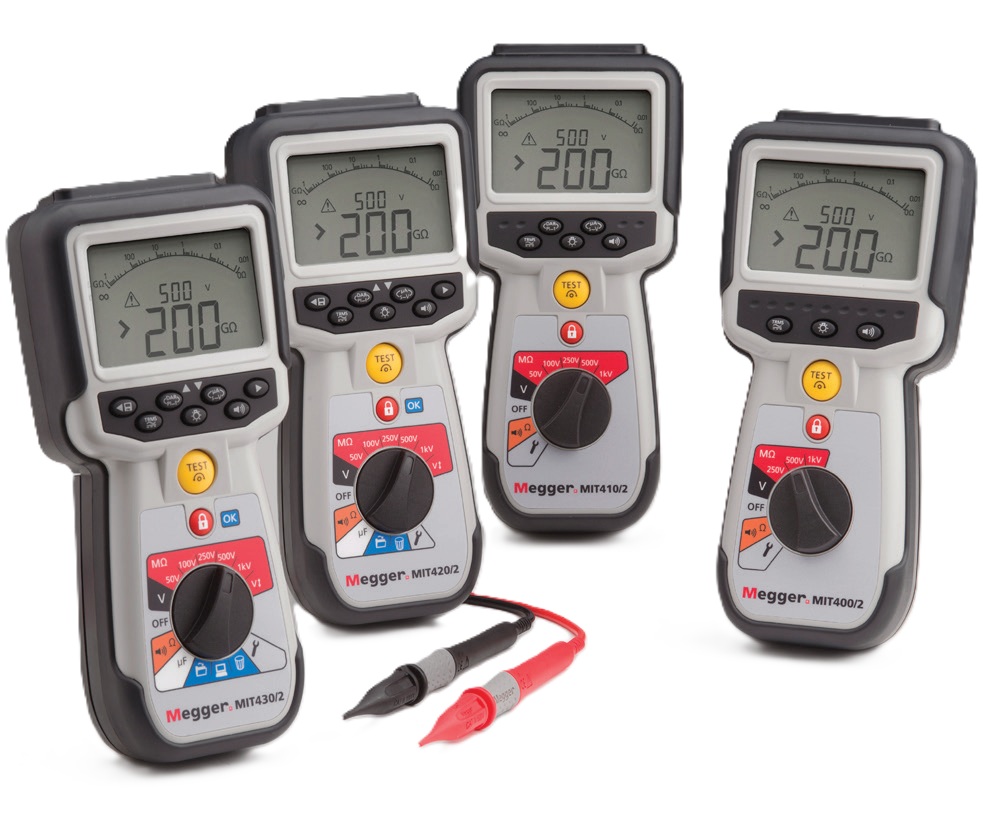

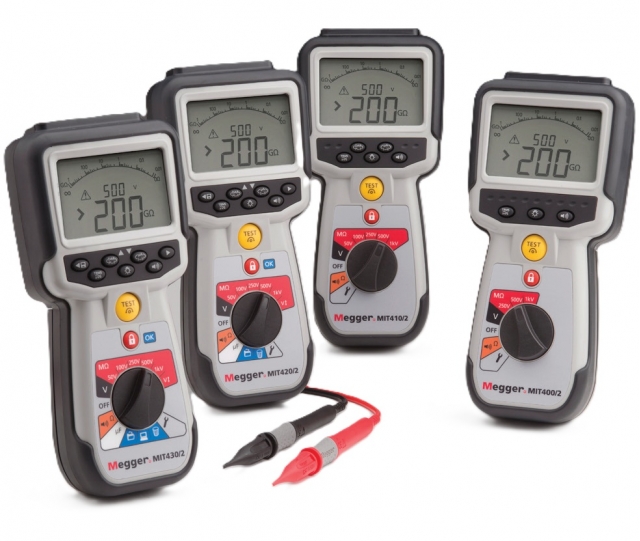

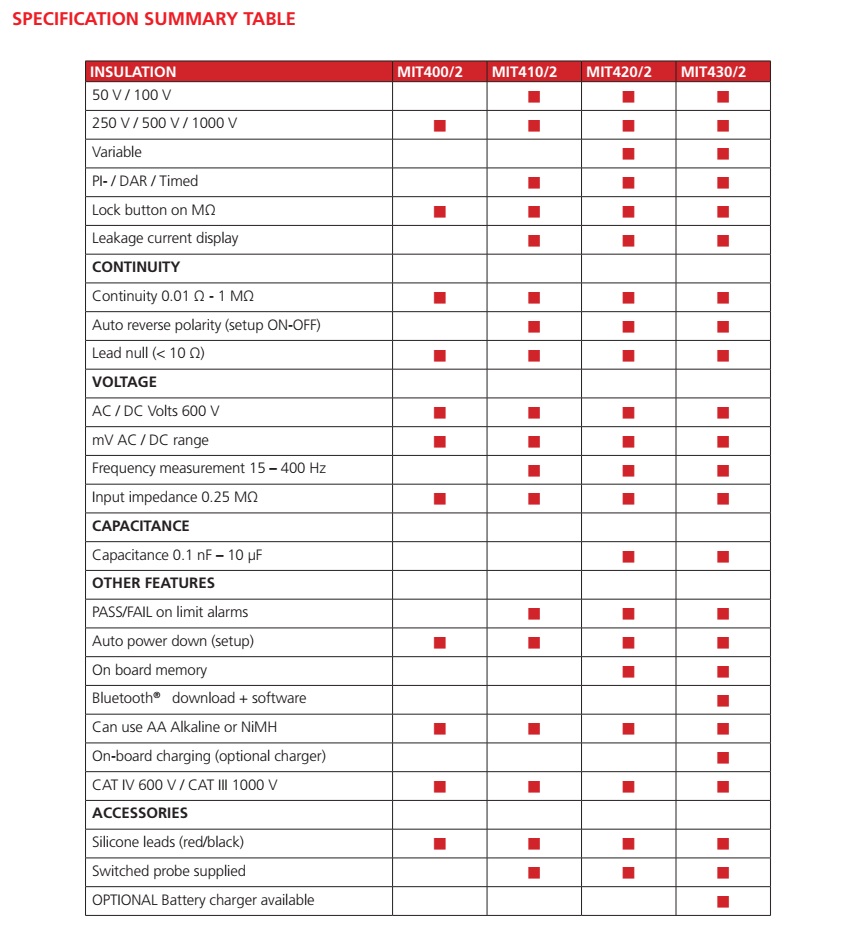

The range consists of four instruments:

MIT400/2: 250 V, 500 V and 1000 V
MIT410/2: 50 V, 100 V, 250 V, 500 V and 1000 V + Polarisation index, dielectric absorption ratio
MIT420/2: 50 V, 100 V, 250 V, 500 V and 1000 V + Polarisation index, dielectric absorption ratio, variable test voltage and result storage
MIT430/2: 50 V, 100 V, 250 V, 500 V and 1000 V + Polarisation index, dielectric absorption ratio, variable test voltage and Bluetooth download


Youtube video presentation of MEGGER MIT400/2






Standard accessories

MIT400/2 - 250V, 500V 1000V Insulation tester 1004-731
MIT410/2 - as MIT400/2 + 50 V and 100 V, PI, DAR and timed testing 1004-735
MIT420/2 - as MIT410/2 + variable voltage test, storage and recall 1004-739
MIT430/2 - as MIT420/2 + Bluetooth® and recharge ready 1004-740

Included Accessories
Red/Black Silicone test leads with Probes + Clips
SP5 remote switch probe (not MIT400/2)
Batteries 6 x AA Alkaline
Hard carry case
Calibration certificate



Recommended options

Description Order Code
Optional Accessories
UKAS calibration certificate 1000-085
Mains Charger kit (MIT430/2 only) 1007-464
SP5 remote switch probe 1007-157
Test lead set and crocodile clips 1002-001
2 wire 500 mA fused test lead set 1002-015
Batteries (6 x NiMH) 1002-735
Magnetic Hanging Strap 1010-013
Carry Pouch MIT400/2 Series 1007-887
