This powerful test system is designed for primary injection testing of protective relay equipment and circuit breakers. It is also used to test the turns ratio of current transformers and for other applications that require high variable currents.

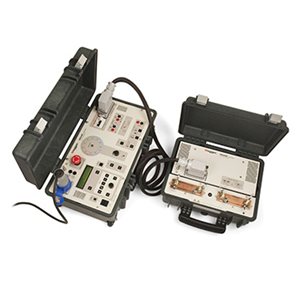

The system consists of a control unit and a current unit. The two parts are portable, and INGVAR can be quickly assembled and connected.

The control unit has many advanced features ½ a powerful measurement section for example, that can display turns ratio as well as time, voltage and current. A second measurement channel can be used to test an additional current or voltage. Current transformer turns ratio, impedance, power, power factor (cos f) and phase angle are calculated and shown in the display. Current and voltage can be presented as percentages of nominal value. The fast-acting hold function freezes short-duration readings on the digital display when the voltage or contact signal arrives at the stop input, the object under test interrupts the current or injection is stopped.

Features:

Most advanced primary current injection test system to simplify all types of switchgear and CT commissioning, ground grid, circuit breaker testing and more
Up to 5000 A output current
Two units, each of about 20 kg, makes it easier to carry
Unique I/30 function allows the current to be pre-set using low current to prevent test sample heating, thus eliminating corruption of test result

More products MEGGER

MEGGER DELTA4110 INSULATION POWER & DISSIPATION FACTOR TEST SET DELTA4000

• fully automatic 12 kV insulation power factor / dissipation factor (tan delta) test set
• Voltage: 25 V to 12 kV, 1 V resolution
• Current : 0 to 5 Amps, 0.1 µA maximum resolution
• Capacitance: 0 to 100 µF, 0.01 pF maximum resolution
• Inductance: 6 H to 10 MH, 0.1 mH maximum resolution
• Power factor PF : 0-100% (0-1), 0.001% maximum resolution
• Dissipation factor DF : 0-100 (0-10,000%), 0.001% maximum resolution
• Watt Loss: 0 to 2 kW
• Automatic and manual operation
• Accurate and repeatable measurement results with high noise suppression
• Lightweight, rugged two-piece design

MEGGER MIT480/2 MIT481/2 MIT485/2 INSULATION TESTER FOR COMMUNICATIONS 500V

• Insulation testing up to 500 V and 100 GΩ range in a hand held instrument
• 3-wire connection for A, B, and E (Tip, Ring and Ground/Earth) connection
• Gated access to 500 V to prevent accidental damage
• CAT IV 600 V and IP 54

IRRADIANCE METER MEGGER - PVM210

• Optimal incident angle and positioning of solar panels
• Measurement of solar power for panel short circuit calculation
• 33/4 digit LCD display with 1999 W/m2 range
• Single handed use

MEGGER TPT420 VOLTAGE TESTER CATIV 1000V

• CAT IV/1000 V
• IP64 Rated
• 12 to 1000 V AC
• 12 to 1500 V DC
• Continuity test function with visual and acoustic indication
• Voltage indication with no batteries
• Single-pole voltage test
• Phase rotation indication
• Integrated torch light

MEGGER DET4 DET4T2 DET4TD2 DET4TR2 DET4TC2 DET4TCR2 EARTH GROUND TESTER

• 2, 3 and 4 point testing
• Stakeless (clamp-on) testing capability
• ART (Attached Rod Technique) capability
• Multiple, user selectable test frequencies
• Resistance measurement range to 200 kO
• IP54 rated
• Warning indicators prevent test failure
• Simple one button operation
• Included leads, stakes, calibration certificate and rugged carry case

DIGITAL MULTIMETER MEGGER - DCM340

• DC and AC current and voltage
• 600 A and 600 V
• Resistance and continuity
• 31/2 digit, 4000 count display with backlight
• High resolution digital bargraph

MEGGER MTR105 MOTOR TESTER FOR INSULATION LOW RESISTANCE CAPACITY INDUCTANCE ROTATING MACHINE TESTING

• insulation resistance (IR) expertise together with advanced low resistance, capacitance, inductance, and rotation testing in one handheld instrument
• Carry out a complete motor assessment
• Prevent costly failures
• Work in any environment
• Streamline your workflow
• Ensure safe operation

MEGGER TDR900 TIME DOMAIN REFLECTOMETER & CABLE LENGTH METER

• Full autoranging for measuring the length of power, telephony, CATV and LAN cables, provides distance to an open or short.
• Extra large, high resolution backlit LCD.
• Automatic output impedance control of 25, 50, 75, 100, 125 or 150 ohms.
• User-friendly menu on screen operation.
• Cable length calibration function.
• Internal library of 39 standard cable types.

SINGLE PHASE HAND CRANKED TRANSFORMER TURNS RATIO TESTER MEGGER - TTR550005B

• Used for testing single phase power and distribution transformers
• Design based on precision bridge measuring technique
• Unmatched accuracy (½0.1%) in a portable design

PRIMARY CURRENT INJECTION TEST SYSTEM MEGGER ODEN AT

• Most advanced primary current injection test system to simplify all types of switchgear and CT commissioning, ground grid, circuit breaker testing and more
• Modular design to permit optimal user configuration of output current vs. unit size
• Compact transport cart facilitates portability into switchgear rooms with limited space
• Unique I/30 function allows the current to be pre-set using low current to prevent test sample heating, thus eliminating corruption of test result
