Megger DET3TC DET3TD Earth Resistance Tester

Code: Megger DET3TC DET3TD




Datasheet PDF, 0.26 Mb


Description

• 2 and 3 point testing
• ART (Attached Rod Technique) testing capability with DET3TC
• Choice of digital or analog display
• Warning indicators prevent test failure
• IP54 rated
• Complete with leads, stakes and rugged carry case
• Simple one button operation
• Calibration test certificate included





The DET3 contractor series includes --
• DET3TC: capable of testing on-site grounds without disconnecting the utility connection
• DET3TD: for basic requirements it provides digital ground testing and bond test capabilities



Standard accessories

Digital tester 2 and 3 terminal DET3TC

Included Accessories

  • Hard carry case
  • Stake and wire kit



Optional Accessories

  • ICLAMP Current measuring clamp 1001-012
  • Right angled terminal adaptor set 6220-803
  • 2 replacement earth test spikes (200 mm, 8 mm dia.) 6220-804
  • 3 replacement test leads (15 m, 10 m, 3 m) 6220-805
  • ‘Getting down to earth’ A Megger guide to earth testing 21500-072
  • Black crocodile clip (1) 6220-850
  • Leadset 1001-858



Digital tester 2 and 3 terminal DET3TD

Included Accessories

  • Hard carry case
  • Stake and wire kit



Optional Accessories

  • Right angled terminal adaptor set 6220-803
  • 2 replacement earth test spikes (200 mm, 8 mm dia.) 6220-804
  • 3 replacement test leads (15 m, 10 m, 3 m) 6220-805
  • ‘Getting down to earth’ A Megger guide to earth testing 21500-072
  • Black crocodile clip 6220-850
  • Leadset 1001-858





Recommended options





More products MEGGER

PHOTOVOLTAIC KIT MEGGER - PVK320

• PVM210 irradiance meter
• AVO410 CATIV TRMS multimeter
• C4 solar connectors to 4 mm standard plug test leads
• MC3 to MC4 adapter test leads
• PV kit storage pouch



MEGGER FREJA 306 PROGRAMMA RELAY TESTER CF-29091

• current outputs, higher amps (3 x 15 A + 3 x 35 A), VA or compliance voltage.
• test differential relays with 6 currents, or virtually any single or 3-phase relay
• For secondary testing of protection relays
• Can be used stand-alone or with a PC
• Flexble, can test many relay types
• Lightweight and portable
• Greatest possible precision



BATTERY GROUND FAULT LOCATOR MEGGER - BGL

• Ground faults in ungrounded dc battery systems easily located
• Operates in high electrical noise environment
• Simplifies fault tracing by identifying fault characteristic (resistive and capacitive) magnitudes



MEGGER MIT200 MIT210 MIT220 MIT230 INSULATION CONTINUITY TESTER

• Pocket-sized insulation and continuity testers - MIT210, MIT220, MIT230
• Insulation testing to 1000 MΩ
• Continuity testing at 200 mA down to 0.01 Ω
• Live circuit warning (voltage display) and test inhibit
• Digital/analogue display



MEGGER TORKEL 820 BS-49092 TELECOM BATTERY LOAD DISCHARGE TESTER PROGRAMMA

• Combines efficiency with portability
• Batteries can be tested "in service"
• Discharge 24 and 48 V batteries at a current of 270 A
• 12 V batteries at 135 A
• Two or more TORKEL 820 units and/or extra load units TXL, can be linked together if you need higher current.



MEGGER MOM3 300A PORTABLE MICROOHMMETER

• Capable of generating up to 300A, ideal for measuring low resistance in electrical contacts and materials.
• Battery Supplied
• Lightweight Design
• Auto Range
• Wi-Fi Communication



VACUUM INTERRUPTER TESTER MEGGER - VIDAR

• Tests the integrity of vacuum interrupters quickly, safely and easily
• User defined voltage selection
• Extensive voltage range
• Easy to operate. Follows ANSI/IEEE standardized DC test methods.
• Lightweight and portable

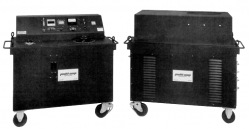

AUTOMATIC OIL CIRCUIT RECLOSER TESTER MEGGER OCR8015/9150
