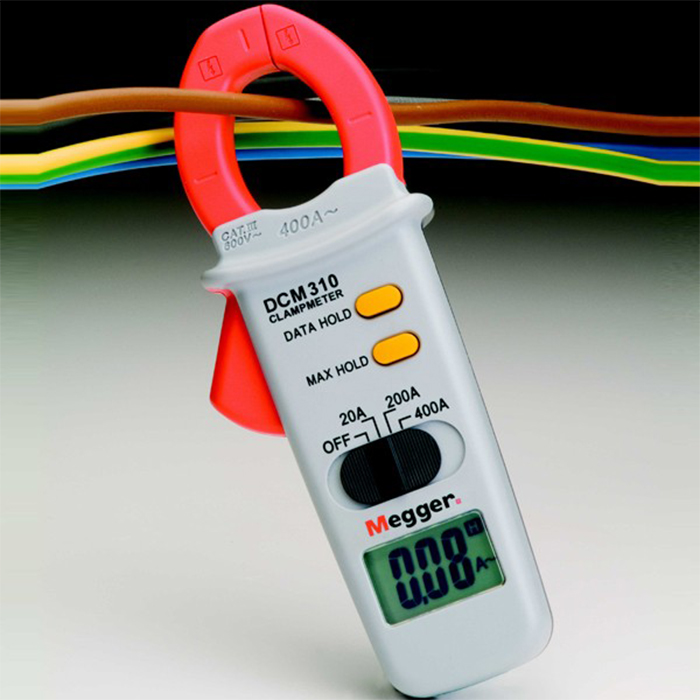

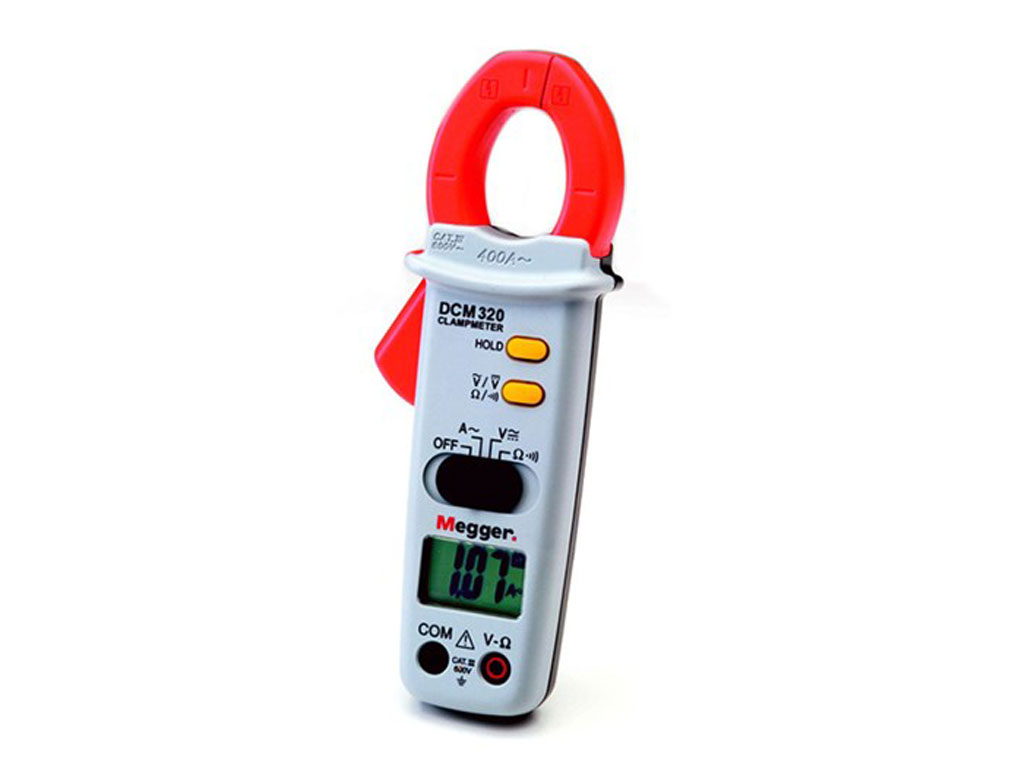

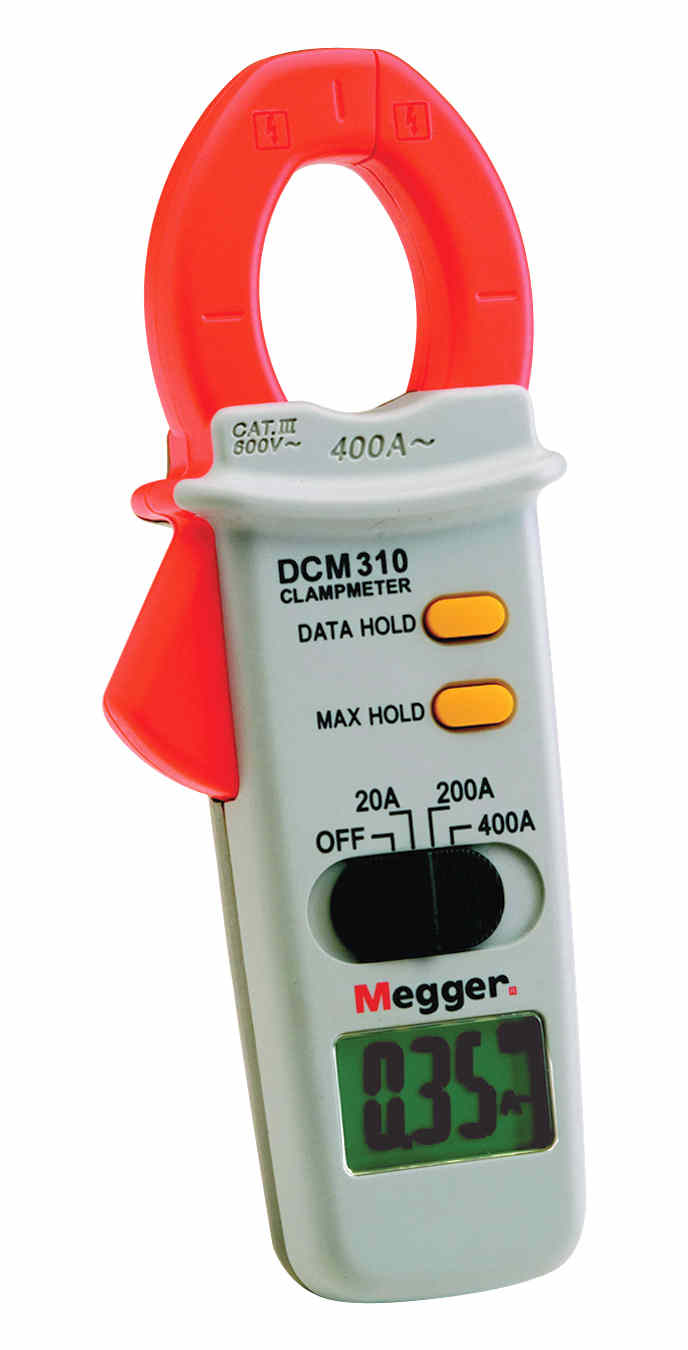

Digital Clamp Meter Megger - DCM310 and DCM320

Code: Megger - DCM310 and DCM320




Datasheet PDF, 0.27 Mb


Description

The DCM310 and DCM320 are ideal clamp meters for use during the installation, maintenance and checking of electrical systems and equipment.



The large clamp jaw enables cables to be measured up to 27 mm diameter, so covering the majority of applications within the electrical system installation industry.



Features:

  • Option of current only , DCM310 or multimeter, DCM320 models
  • Measures up to 400 A a.c. with low current ranges for improved resolution
  • 600 V a.c./d.c. DCM320
  • 20 MO Resistance DCM320
  • Data Hold
  • Max Hold DCM310
  • Small pocket-size design
  • Exceptional battery lifetime
  • Supplied with carry case
  • IEC61010 CAT III 600 V
