LIST-MAGNETIK MP-810 Gaussmeter teslameter magnetometer magnetic field meter compact portable

Code: MP-810




Datasheet PDF, 0.33 Mb


Description

Magnetic Field Meter / Gaussmeter MP-810
Compact magnetic field meter / gaussmeter for the measurement of steady and alternating magnetic fields with axial or transversal field probe
We are pleased to present our new "Swift Class" magnetic field meter: The MP-810 is the successor to the popular MP-800 and provides even more precise results with optimized, stable measurements. The new wireless interface enables more convenient use, and the improved data memory offers more capacity for your measurement data. The new operating concept ensures user-friendly handling. Thanks to an optimized main board, the device's design has become even more compact.

The small, compact List-Magnetik MP-810 operates with the same precision as larger magnetic field meters. It is easy to use and accurately measures direct current (DC) and alternating current (AC) fields, as well as maximum values for pulse fields. With different measuring ranges and units of measurement, such as A/cm, Gauss/Oersted, and milliTesla, the MP-810 is ideal for any magnetic field measurement task.

The MP-810 magnetic field tester is available as a single-handed device with either an axial (MP-810A) or a transverse (MP-810T) probe. The axial field probe measures the magnetic field at a precise distance of 2.0 mm along the probe axis and is ideal for measuring surfaces or drill holes. The transverse probe measures perpendicular to the probe axis and is ideal for measuring air gaps and cavities, as well as the surface of workpieces, especially for crack detection.

A magnetic field meter, magnetometer, gaussmeter, or teslameter—all of which refer to the same measuring instrument—can reliably detect even the slightest differences in magnetic field strength. Our devices enable measurements ranging from low field values just above the Earth's magnetic field to peak fields, including residual magnetism and remanence with low A/cm or Gauss/Oersted values. List-Magnetik's magnetic field meters and gauss meters are particularly durable and provide reproducible field strength values for every magnetic field test. We also offer a calibration standard (reference magnet) that you can use to check the accuracy of your magnetic field tester at any time.

Manage and send measurement data with a free application
To further process your measurement data, you can pair your measuring device with mobile Android and iOS devices. Or you communicate with a Windows PC. This is made possible by wireless technology. With the Lima Connect app you can manage projects and assign the measuring points on a photo. The measurement results can be statistically evaluated and displayed graphically. The app for Android, iOS and Windows is free.

Service tool
The free Windows app Lima Service is available on our homepage. You can use it to set the time on your device that will be used during data transfer.

If there is a malfunction of the device, you can read data from the device, which will help our technicians in telephone support to analyze it. Thus, we may be able to remedy the situation without you having to send in the device and lose time.

The application runs on Windows 10 and Windows 11. Older Windows versions are not tested.

Technical Data Magnetic Field Meter / Magnetometer / Gaussmeter / Teslameter MP-810

Measuring units:A/cm – kA/m – Gauss – Oersted – Tesla switchable
(1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
Measuring probe MP-810A:Axial field probe ø 8mm with defined measuring distance of 2.0 mm
Measuring probe MP-810T:Transversal field probe of 1.7 mm thickness with Hall Sensor distance of 0.9 mm
Measuring range DC:0-20,000 A/cm
Measuring range AC:2-20,000 A/cm
Accuracy:in the homogeneous field ± 1 A/cm up to 50 A/cm, ± 2 % of measured value from 50 A/cm
Resolution:0–100 A/cm: 0.1 A/cm,
100–10,000 A/cm: 1 A/cm,
> 10,000 A/cm: 10 A/cm
Frequency range AC:20 Hz – 100 Hz
Peak Hold:Impulse duration >= 0.25 sec
Operating conditions:0-50 °C
Storage conditions:0-50 °C, 10-90%
Protection class:IP64
Display:OLED Graphic Display illuminated
Display size:25 x 10 mm
Menu navigation:English, German, French, Italian, Spanish, Hungarian, Polish, Dutch
Data logger:4000 measured values flexibly divisible
Statistics:Count / Maximum / Minimum / Average / Standard deviation
Interface:wireless interface for communication with Android, iOS and Windows
App for Android, iOS, Windows:free of charge via Google Play Store, Apple App Store, List-Magnetik website
Power supply:1x 1.5 V AA Mignon
Operating time:approx. 50 hours
Dimensions:Ø 28 x 140 mm
Packaging dimensions:26 x 21 x 5 cm
Weight:73 g with battery





Standard accessories

Models and scope of delivery Magnetic Field Meter / Magnetometer / Gaussmeter / Teslameter MP-810

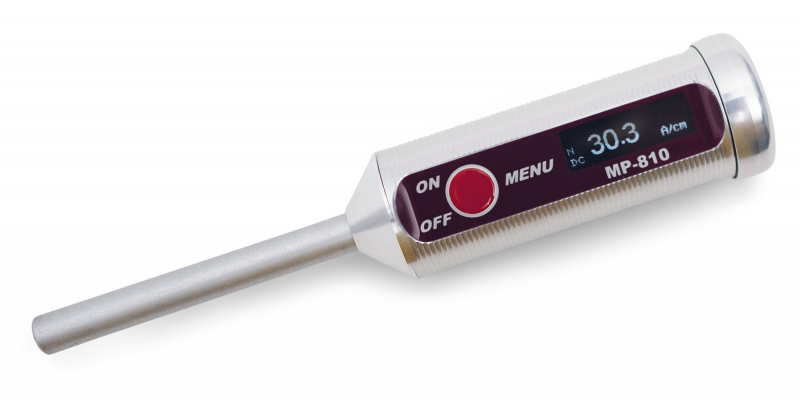

Magnetic Field Meter / Gaussmeter LM-MP810A / Model MP-810A with spare battery and case, including calibration certificate. The app for Android, iOS and Windows is free.Magnetic Field Meter / Gaussmeter MP-810ATo the shop Magnetic Field Meter / Gaussmeter MP-810A

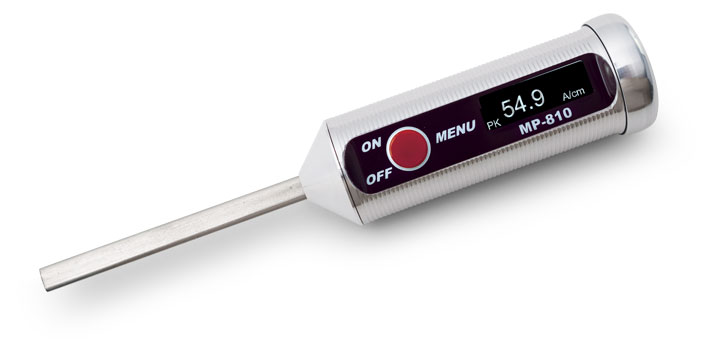

Magnetic Field Meter / Gaussmeter LM-MP810T / Model MP-810T with spare battery and case, including calibration certificate. The app for Android, iOS and Windows is free.Magnetic Field Meter / Gaussmeter MP-810TTo the shop Magnetic Field Meter / Gaussmeter MP-810T


Recommended options

Recommended Optionals Magnetic Field Meter MP-810
Calibration Standard for Magnetic Fields
A calibration standard is a reference magnet that allows the user to verify the accuracy of a matched probe.

Size Calibration Standard for Magnetic Fields with axial probeTo the shop Calibration Standard for Magnetic Fields
Zero Gauss Chamber NGK-10
In order to be able to carry out the probe calibration for magnetic field measuring devices independently of the earth's magnetic field, a shielded Zero Gauss Chamber helps


More products LIST MAGNETIK

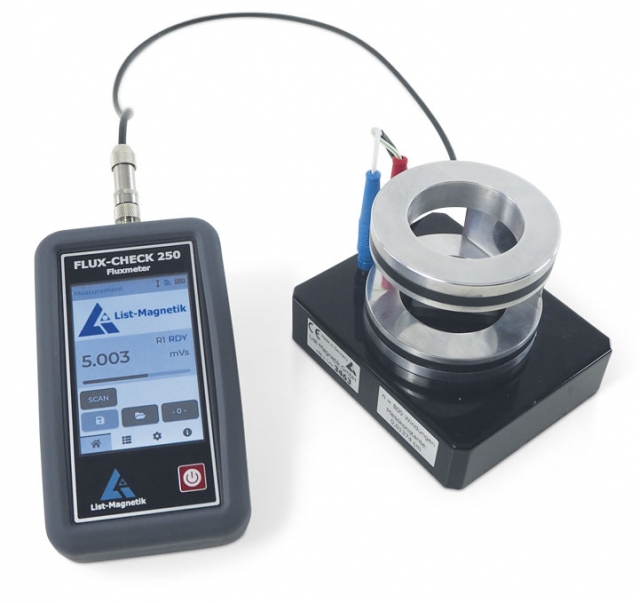

LIST-MAGNETIK FLUX-CHECK 250 MAGNETIC FLUXMETER

• Measuring units: magnetic flux mVs (milli-Volt-second, corresponds to the SI unit mWb / milli-Weber)
• Measuring ranges: 0-10 mVs and 0-250 mVs, automatic or manual range switching
• Real flux: mVs / n
• Magnetic moment: mVs * cm
• Flux density: A/cm or mT
• Accuracy: 2%
• Repeatability: 1%

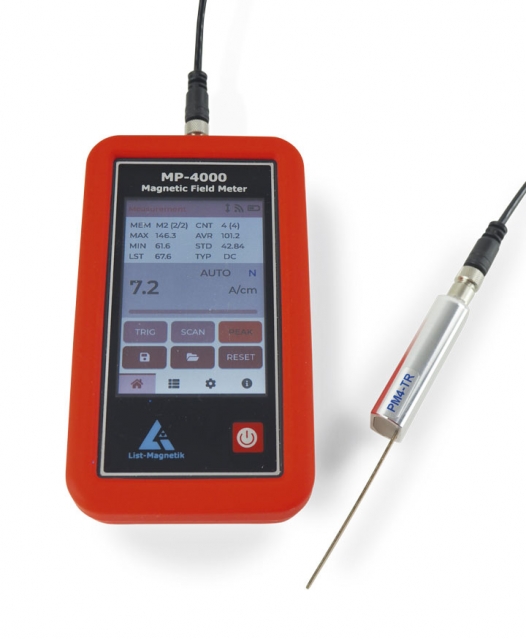

LIST-MAGNETIK MP-4000 GAUSSMETER TESLAMETER FOR MAGNETIC FIELD TESTING METER

• Measurements in A/cm, kA/m, Gauss, Tesla
• Protection class: IP64
• Display: LCD touch panel color 320x480 pixel
• Data logger: 10,000 measurements, flexibly divisible
• App for Android, iOS, Windows: free of charge

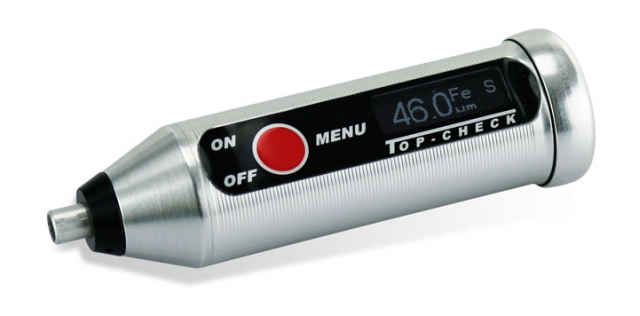

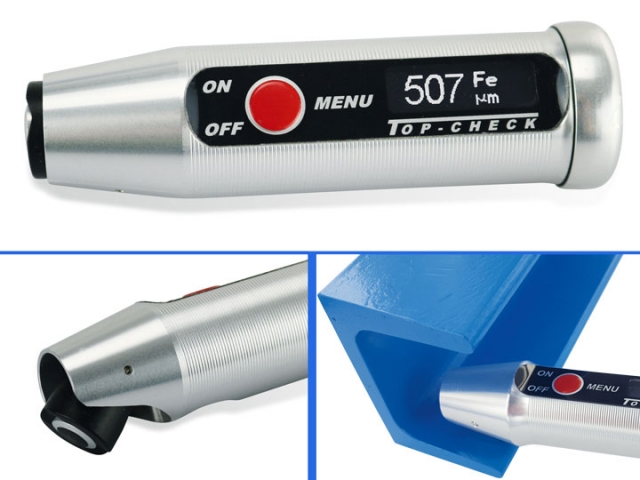

COATING THICKNESS METER LIST-MAGNETIK TOP-CHECK FERRO-1000

• Applications: Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178)
• Measuring probe: sensing device, springy
• Measuring range: on steel and iron: 0-1000 μm
• Smallest Area: ø 2 mm

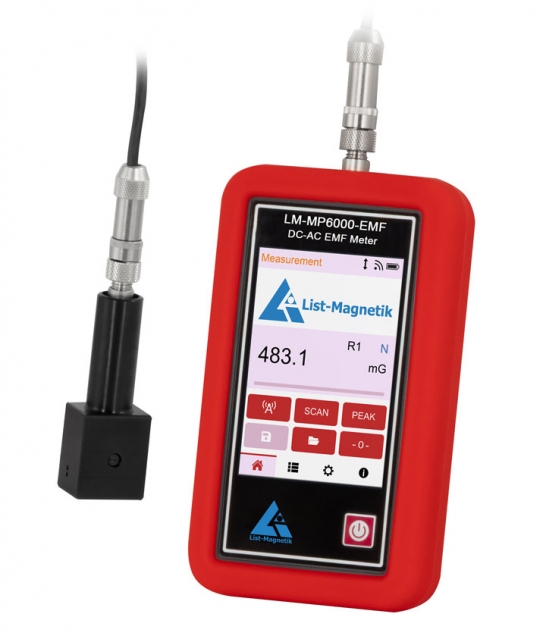

LIST-MAGNETIK LM-MP6000-EMF EMF FLUXGATE MAGNETIC FIELD METER FOR TESTING VERY WEAK MAGNETIC FIELDS ACC. IATA953

• Measuring units: mG, G, µT, mT, A/m
• Probe: Transversal fluxgate measuring probe PMF61
• Measuring range DC: 0-4 G / 0-400 µT (0.4 mT) / 0-300 A/m
• Measuring range AC: 0-3 G / 0-300 µT (0.3 mT) / 0-240 A/m effective
• Accuracy: ± 2% of measured value / ± 0.8 µT
• Resolution: 0.1 mG / 0.01 µT / 0.01 A/m
• Frequency range AC: max. 2 kHz

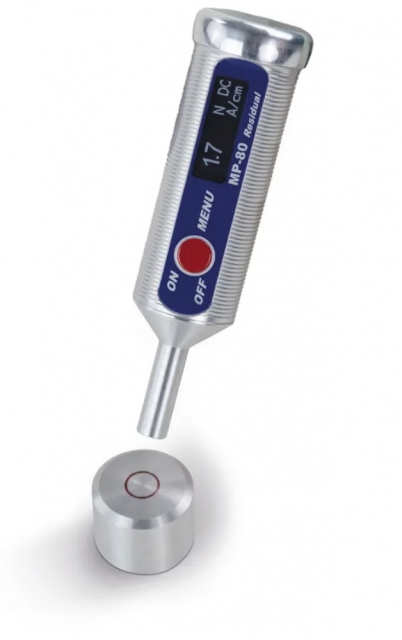

LIST-MAGNETIC MP-80 V2 RESIDUAL MAGNETIC FIELD METER MAGNETOMETER GAUSSMETER FOR MAGNETISM IN METAL

• Measuring units: A/cm – kA/m - Gauss (Oe) – Tesla
• Measuring probe: integrated axial field probe, ø 8mm with defined measuring distance of 2.0 mm
• Measuring range DC: Residual Magnetism / Remanence in the range 0-100 A/cm
• Accuracy: in the homogeneous field ± 0,3 A/cm below 10 A/cm,
• ± 3% of measured value from 10 A/cm
• Resolution: 0.1 A/cm or 0.01 mT

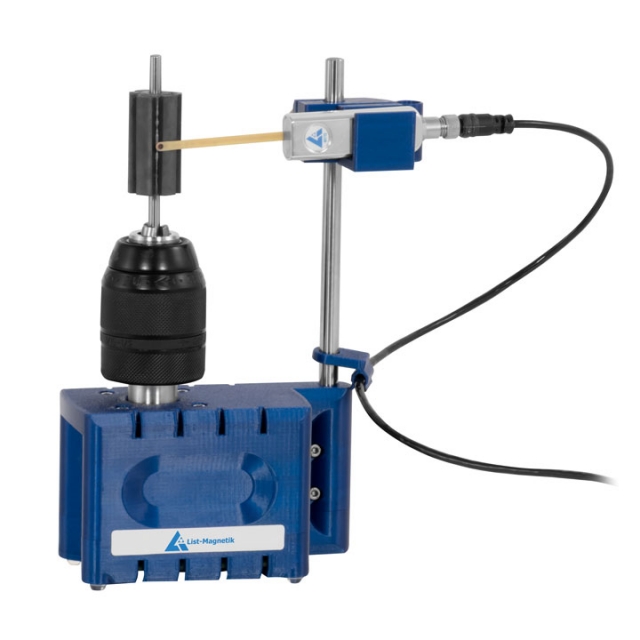

LIST-MAGNETIK ROTOR-CHECK 400 FOR TESTING MAGNETIC FIELD STRENGTH CURVE OF ROTORS

• Measuring units: A/cm – kA/m – Gauss – mTesla switchable (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
• Probe: Transversal Flexible Reed Probe LM-MP-PM4-TR
• Measuring range DC: 0-40,000 A/cm (± 4000mT)
• Accuracy: ± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm
• Angle accuracy: ± 0.15°
• Measuring direction: Radial or axial
• Resolution: 0.1 A/cm (0.01 mT)

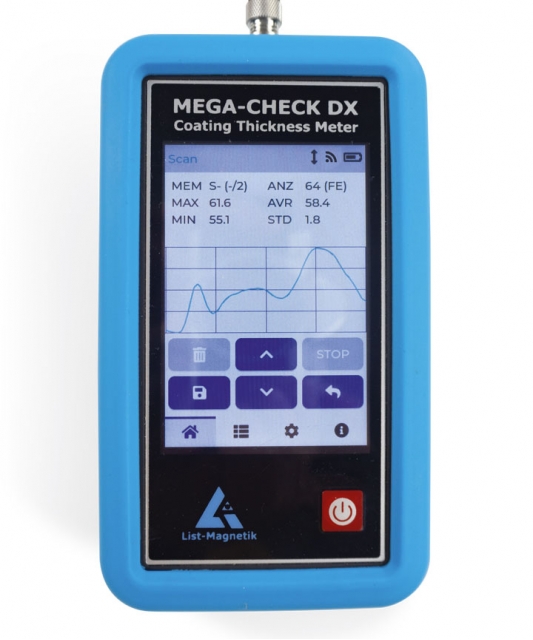

COATING THICKNESS METER LIST-MAGNETIK MEGA-CHECK DX

• Application: Depending on the selection of the probe, measurement of paint, lacquer, plastic and galvanic layers on steel, measurement of insulating layers on non-ferrous metals with automatic recognition of the base material.
• Standards: ISO 2178, ISO 2360, BS 5411, ASTM
• Measuring probe: measuring range depending on probe on steel and iron up to 30 mm (30,000 µm), on NF metals up to 2 mm (2000 µm), minimum area, minimum radius of curvature and calibration value are also depending on probe

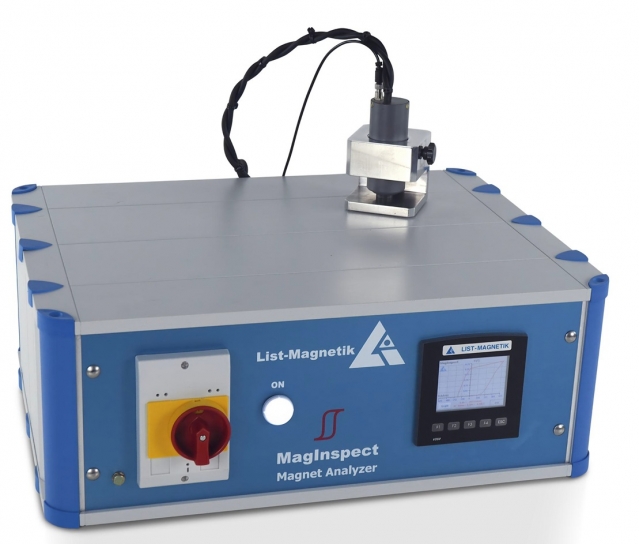

LIST MAGNETIK MAGINSPECT MAGNET ANALYZER

• measuring magnetic quality of hard magnetic materials such as AlNiCo, ferrite or rare earth materials
• Coercivity (I_Hc)
• Remanence (Br)
• Saturation magnetization (Ms)
• Hysteresis loop

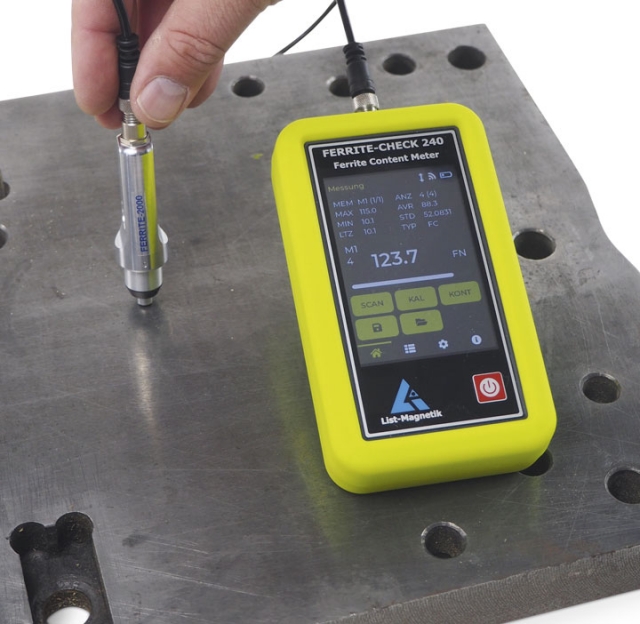

LIST-MAGNETIK FERRITECHECK-240 FERRITE CONTENT METER IN AUSTENITE AND DUPLEX STEELS

• Applications: Measurement of ferrite content in austenitic and duplex steels
• Probe: FERRITE-2000, special probe for ferrite testing. Externally connected
• Measurement units: Fe% and FN
• Measuring range: 0.2 - 100 Fe% 0.2 - 140 FN
• Measurement method: Single measurement or scanning
• Smallest measuring area: ø 2 mm
• Accuracy: 5 %
• Resolution: under 10: 0.01, over 10: 0.1

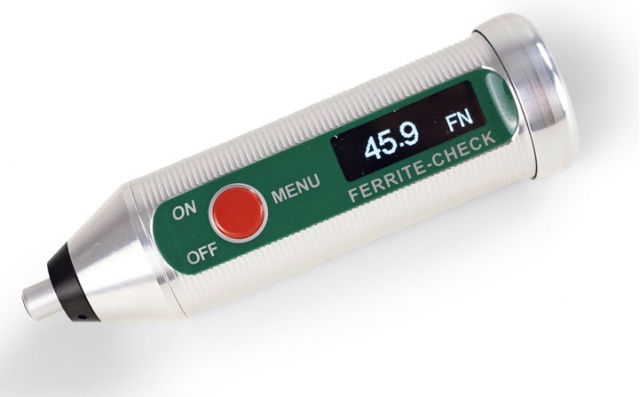

LIST-MAGNETIK FERRITECHECK 140 FERRITE CONTENT METER IN AUSTENITE AND DUPLEX STEELS
