- Application: Depending on the selection of the probe, measurement of paint, lacquer, plastic and galvanic layers on steel, measurement of insulating layers on non-ferrous metals with automatic recognition of the base material.
- Standards:ISO 2178, ISO 2360, BS 5411, ASTM
- Measuring probe: measuring range depending on probe on steel and iron up to 30 mm (30,000 µm), on NF metals up to 2 mm (2000 µm), minimum area, minimum radius of curvature and calibration value are also depending on probe
- Accuracy:below 100 µm ± 1 µm, 100-1000 µm: ± 1 %, 1000-2000 µm: ± 3 %, > 2000 µm: ± 5 %
- Resolution:1-100 µm: 0.1 µm, 100-1000 µm: 1 µm, > 1000 µm: 10 µm
- Measuring units:µm and mils
- Operating conditions:0 - 50° C
- Storage conditions:0-50 °C, 10-90%
- Protection class:IP64
- Display:LCD touch panel color 320x480 pixel
- Display size:75 x 50 mm
- Menu navigation:English, German, Italian, French, Spanish
- Scan function:for accurate measurement on rough or blasted surfaces
- Duplex function (probe DX52-D/DP):for exact determination of single layer thickness when measuring insulating layers on galvanized steel parts (zinc layer must be > 60 µm)
- Data logger:10,000 measurements, flexibly divisible
- Statistics:Count / Maximum / Minimum / Average / Standard deviation
- Calibration memory:flexible number of calibration configurations storable
- Interface:wireless interface for communication with Android, iOS and Windows
- App for Android, iOS, Windows:free of charge via Google Play Store, Apple App Store, List-Magnetik website
- External control:via USB and SCPI communication interface
- Power supply:3x 1.5 V AA Mignon. External power supply can be connected via USB
- Operating time:approx. 25 hours with battery, unlimited with external power supply
- Dimensions:150 x 85 x 35 mm
- Packaging dimensions:28 x 23 x 9 cm
- Weight:320 g with batteries
The MEGA-CHECK DX Coating Thickness Gauge offers the ability to connect a wide variety of probes to measure coating thickness on metal.
Advantages of the MEGA-CHECK DX Coating Thickness Gauge
The List-Magnetik MEGA-CHECK DX Coating Thickness Gauge can be connected to a wide range of specialized digital probes. Applications on very small apertures, thick layers and small measuring points are easily possible. Special functions such as scan measurement on rough surfaces and duplex measurement on galvanized and additionally coated steel complete the range of features.
Trouble-free and precise measurement in layer thickness measurement
A completely newly developed digital probe technology ensures very stable measurements thanks to a high sampling rate. The signals are digitized in the probe for absolutely interference-free and precise measurements. The result is highly accurate, reproducible coating thickness measurements.
Wide range of probes for the coating thickness gauge
List-Magnetik offers a wide range of probes for ferrous metals (iron and steel) and non-ferrous metals (non-ferrous metals such as aluminum, brass, copper, bronze, and non-magnetic stainless steel) as well as combined probes with automatic base material detection.
Thickness measurements on a wide variety of coatings
The magnetic induction method allows the measurement of varnish, paint, plastic, rubber, ceramic, galvanized and electroplated coatings on steel. The eddy current method allows you to measure insulating coatings (paint, varnish, plastic, anodizing) on non-ferrous metals.
Graphic display
The coating thickness gauge is equipped with a graphic LCD touch panel with innovative user guidance and a resolution of 320x480 pixels. The blue silicone frame effectively protects the housing from damage.
Data Logger and Interfaces
With the flexibly divisible measured value memory, the freely definable calibration memories, and the wireless interface for Windows, Android, or iOS, you have every option for recording and further processing your measured values.
Remote measurement control
The instrument is equipped with an SCPI interface, which allows remote measurement and data transmission in line operation. The connection is via USB, which also ensures power supply and continuous operation.
Special functions: Scan, Duplex
The scan function allows a workpiece to be scanned over a rough surface and the data to be statistically evaluated. The additional analog display completes the visualization of the measured values. This allows you to see trends and peaks even out of the corner of your eye.
The duplex function simultaneously records the individual layer thicknesses when measuring insulation layers on galvanized steel parts.
Continuous operation
Power can be supplied by three AA batteries or an external power source connected via USB. This allows you to run the gauge from a power supply or AC adapter.
Replaceable Gauge Probe Cable
The two-sided pluggable probe cable connects the display unit to the digital probe and can be easily replaced if the cable breaks.
High quality
All List-Magnetik MEGA-CHECK coating thickness gauges are high quality products "Made in Germany".
Quality assurance through the coating thickness gauge
A coating thickness gauge is typically used in the quality assurance of coating processes. For example, to determine the thickness of a coating. It is also suitable for testing vehicles or steel structures and in the field of fire protection (determining the coating thickness of steel doors). In addition to being a paint thickness gauge, it can also be used to measure rubber coatings, anodized aluminum, and galvanized coatings.
MEGA-CHECK DX vs. Basic / Profi / Master
The MEGA-CHECK DX has replaced the MEGA-CHECK Basic / Profi / Master models, which have been well proven for 15 years. The measurement technology of the new generation of DX probes has been significantly improved. A major advantage is the graphic display with many additional functions such as scan measurement and analog display. MEGA-CHECK DX also offers a more convenient memory function. The wireless interface to Windows PCs as well as Android and iOS mobile devices can be used to exchange data.
Manage and Share Measurement Data with Free App
To further process your measurement data, you can pair your coating thickness gauge with Android and iOS mobile devices or communicate with a Windows PC. Wireless technology makes this possible. With the Lima Connect app, you can manage projects and assign measurement points to a photo. Measurement results can be statistically evaluated and graphically displayed. The app is available for free for Android, iOS and Windows.

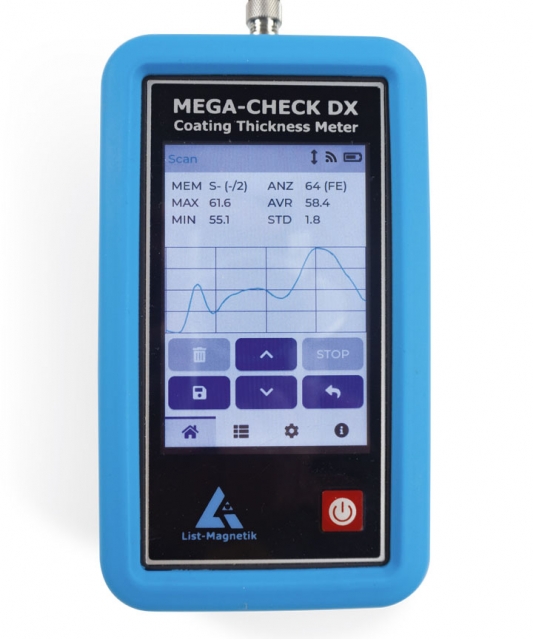

Scan Measurement
Want to continuously scan a coating and determine the minimum and maximum values? Scan measurement provides a graphical coating thickness curve with statistical analysis.
Duplex Measurement
Want to evaluate galvanized and coated steel in one step and see both the zinc layer and the paint layer together? With the duplex measurement option, both can be quickly displayed simultaneously and statistically analyzed separately.
