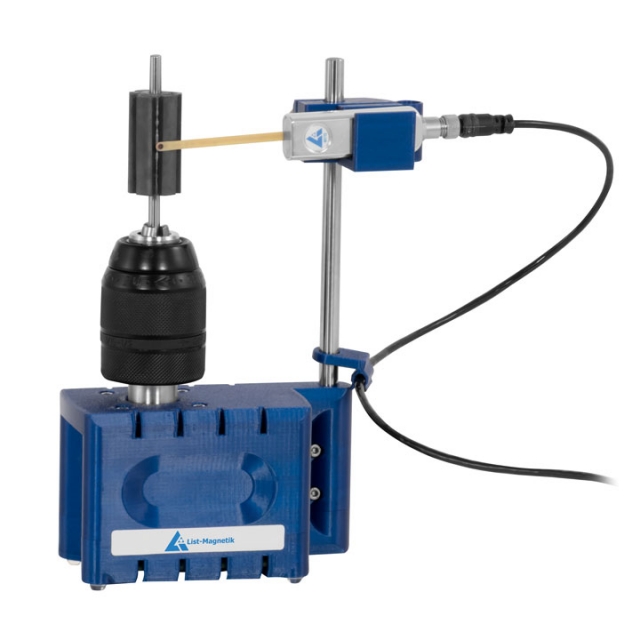

Rotor-Check 400 is a practical testing device used to check the magnetic field strength curve of a rotor. The device and measuring probe connect directly to a Windows PC via USB. It is an ideal solution for precise magnetic field measurement and analysis.

With the Rotor-Check 400, you can precisely determine numerous parameters of a magnetic rotor.

Magnet quality and magnetization

Assembly errors in the lamination stack

The effects of inhomogeneity in the laminated core

The position of the lamination stack relative to the shaft

Stray field magnetization

Local and global pole peaks

Flux density at the pole center

Pole width

Pole misalignment

Pole comparison

The high-resolution, precise stepper motor can rotate the rotor through 360° in seconds. Using the free RotorCheck software, you can record an accurate curve of the magnetic field strength and angle, then evaluate it statistically. The measuring probe is kept at a consistent distance from the rotor using a height-adjustable mounting device. This ensures comparable magnetic measurements during rotation and a precise magnetic field strength across the entire rotor path.

The rotor shaft can be up to 13 mm thick. The measuring probe is adjustable up to 12 cm, allowing for flexible handling of different rotor sizes.

With the RotorCheck software, you can record the measured values and export the recorded measurement data as a graph or CSV file. This allows you to evaluate and document the magnetic field measurement in detail, for example, in Microsoft Excel.

The Rotor-Check 400 comes with a Transversal Flexible Reed Probe LM-MP-PM4-TR . Three holders for the measuring probe are included for axial (e.g., sensor magnet) or radial (e.g., magnetic rotor) measurement. Customers can request adapter sleeves to enable measurement at specific distances from the magnetic rotor.

The Rotor-Check 400 and its associated measuring probe connect to a PC or laptop via two USB ports and do not require an additional external power supply.

Technical data Magnetic field tester Rotor-Check 400

Measuring units:A/cm – kA/m – Gauss – mTesla switchable

(1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)

Probe:Transversal Flexible Reed Probe LM-MP-PM4-TR

Measuring range DC:0-40,000 A/cm (± 4000mT)

Accuracy:± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm

Angle accuracy:± 0.15°

Measuring direction:Radial or axial

Resolution:0.1 A/cm (0.01 mT)

Maximum rotor diameter:d <= 60 mm

Probe height:maximum 12 cm

Mounting for rotor axis:d= 0.3 mm - 13 mm

Höhe der Sonde:maximal 12 cm

Minimum measuring distance:0.3 mm (when the probe touches the rotor)

Display:Instantaneous field strength over the course of one or more revolutions

Number of measuring points:for one revolution (360°), adjustable 300 / 500 /1000 measuring points

Measuring duration:adjustable: 23 / 45 / 90 seconds for 360°

Storage of measurement curve:CSV file (e.g. for import into Microsoft Excel), image file (.png)

Calibration:Zero point calibration via software (must be performed with the rotor removed)

Operating conditions:0-50 °C

Storage conditions:0-50 °C, 10-90%

Connection:2 x USB port to PC

Power supply:USB

Dimensions:120 x 60 x 195 mm

Weight:780 g

Standard accessories

Models and Scope of delivery Magnetic field tester Rotor-Check 400

Magnetic field tester Rotor-Check 400 with transversal fluxgate measuring probe PMF61, probe cable, and case, including calibration certificate

More products LIST MAGNETIK

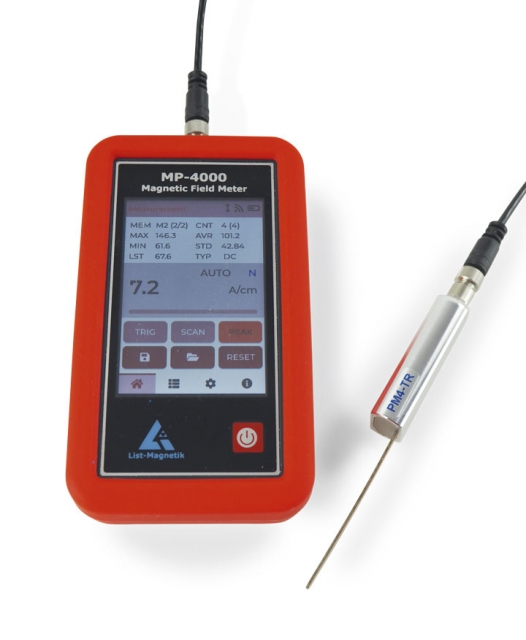

LIST-MAGNETIK MP-4000 GAUSSMETER TESLAMETER FOR MAGNETIC FIELD TESTING METER

• Measurements in A/cm, kA/m, Gauss, Tesla
• Protection class: IP64
• Display: LCD touch panel color 320x480 pixel
• Data logger: 10,000 measurements, flexibly divisible
• App for Android, iOS, Windows: free of charge

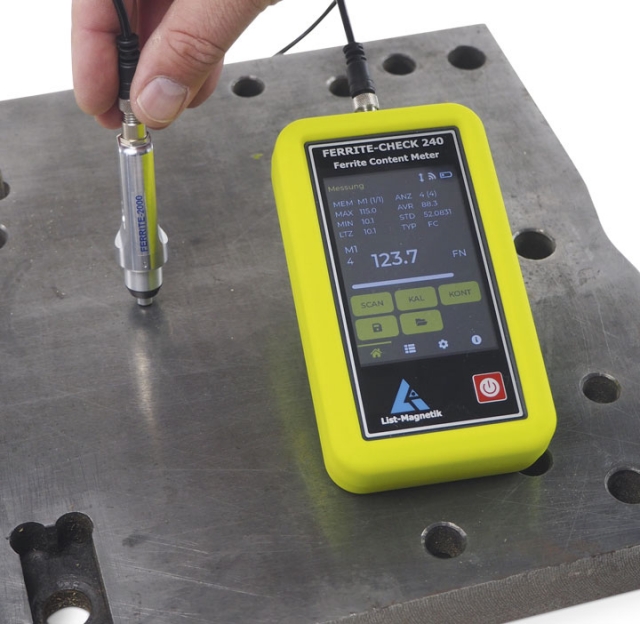

LIST-MAGNETIK FERRITECHECK-240 FERRITE CONTENT METER IN AUSTENITE AND DUPLEX STEELS

• Applications: Measurement of ferrite content in austenitic and duplex steels
• Probe: FERRITE-2000, special probe for ferrite testing. Externally connected
• Measurement units: Fe% and FN
• Measuring range: 0.2 - 100 Fe% 0.2 - 140 FN
• Measurement method: Single measurement or scanning
• Smallest measuring area: ø 2 mm
• Accuracy: 5 %
• Resolution: under 10: 0.01, over 10: 0.1

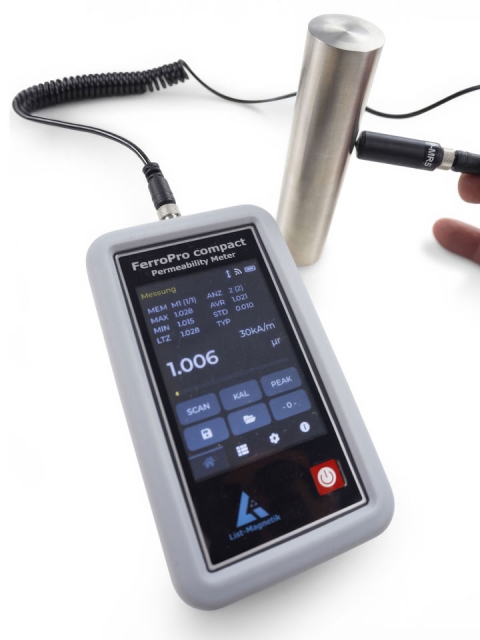

LIST-MAGNETIK FERROPRO COMPACT

• Measuring range: µr = 1.000 to 5.000
• Probe: FPC-5, interchangeable, with separately interchangeable cable
• Accuracy at 20°C: (µr - 1) x 5%, against traceable calibration standards, can be readjusted
• Resolution: 0.001

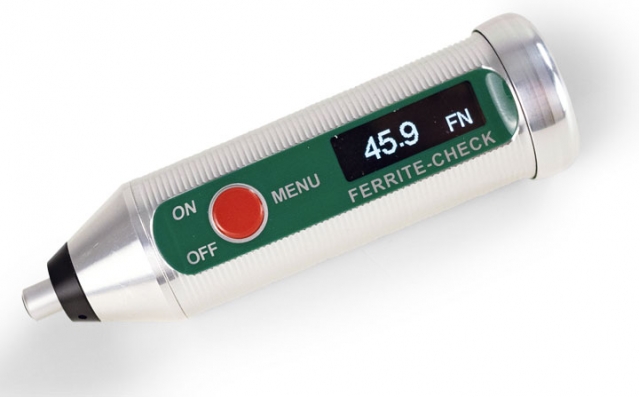

LIST-MAGNETIK FERRITECHECK 140 FERRITE CONTENT METER IN AUSTENITE AND DUPLEX STEELS

• Application: Measurement of ferrite content in austenitic and duplex steels
• Measuring range: 1 - 100 Fe% 1 - 140 FN
• Measuring method: Single measurement or continuous measurement with averaging
• Smallest measuring area: ø 2 mm
• Accuracy: 5 %
• Resolution: until 10: 0.01, above 10: 0.1

LIST-MAGNETIK ROTOR-CHECK 400 FOR TESTING MAGNETIC FIELD STRENGTH CURVE OF ROTORS

• Measuring units: A/cm – kA/m – Gauss – mTesla switchable (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
• Probe: Transversal Flexible Reed Probe LM-MP-PM4-TR
• Measuring range DC: 0-40,000 A/cm (± 4000mT)
• Accuracy: ± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm
• Angle accuracy: ± 0.15°
• Measuring direction: Radial or axial
• Resolution: 0.1 A/cm (0.01 mT)

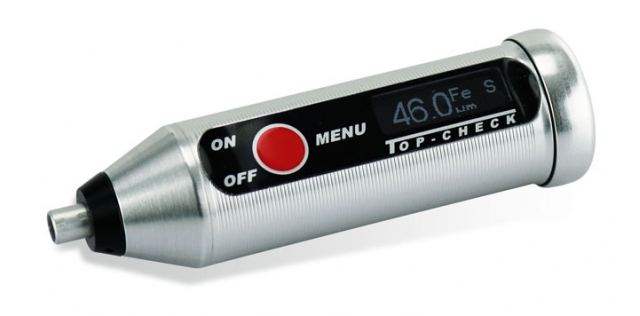

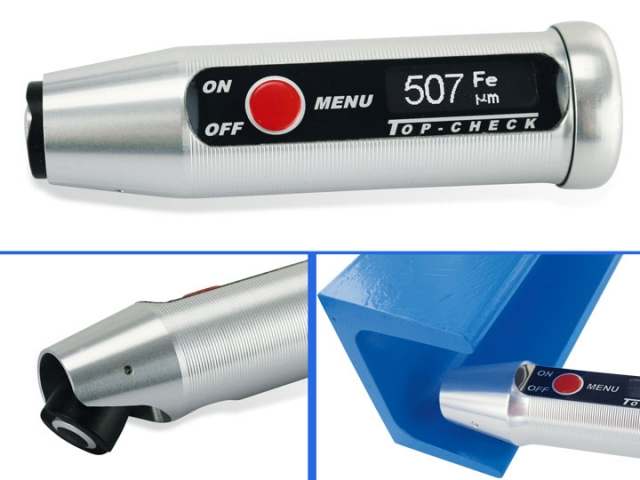

COATING THICKNESS METER LIST-MAGNETIK TOP-CHECK FERRO-1000

• Applications: Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178)
• Measuring probe: sensing device, springy
• Measuring range: on steel and iron: 0-1000 μm
• Smallest Area: ø 2 mm

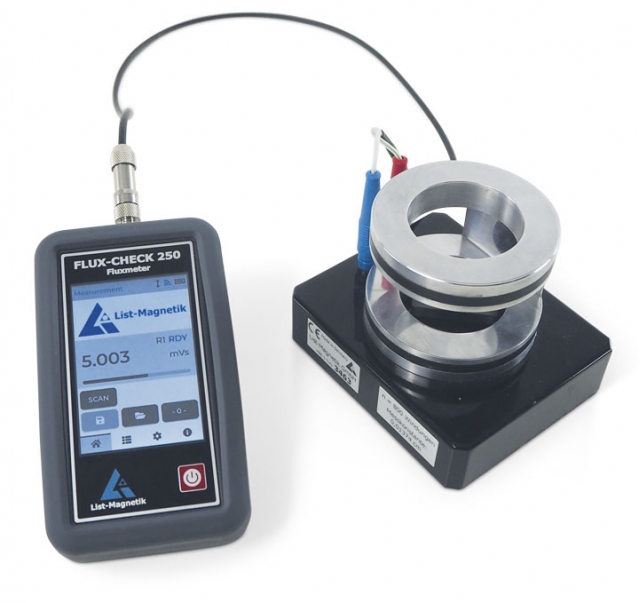

LIST-MAGNETIK FLUX-CHECK 250 MAGNETIC FLUXMETER

• Measuring units: magnetic flux mVs (milli-Volt-second, corresponds to the SI unit mWb / milli-Weber)
• Measuring ranges: 0-10 mVs and 0-250 mVs, automatic or manual range switching
• Real flux: mVs / n
• Magnetic moment: mVs * cm
• Flux density: A/cm or mT
• Accuracy: 2%
• Repeatability: 1%

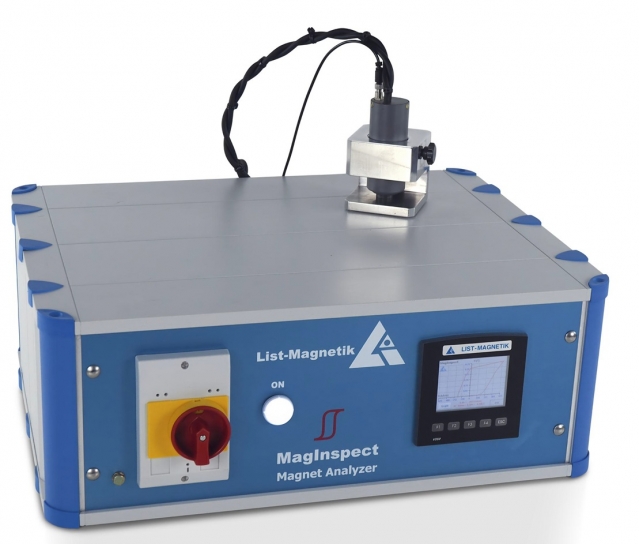

LIST MAGNETIK MAGINSPECT MAGNET ANALYZER

• measuring magnetic quality of hard magnetic materials such as AlNiCo, ferrite or rare earth materials
• Coercivity (I_Hc)
• Remanence (Br)
• Saturation magnetization (Ms)
• Hysteresis loop

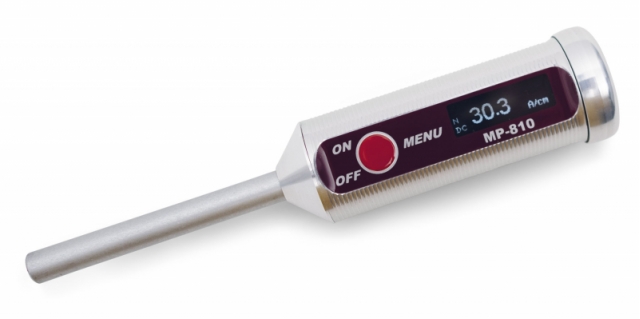

LIST-MAGNETIK MP-810 GAUSSMETER TESLAMETER MAGNETOMETER MAGNETIC FIELD METER COMPACT PORTABLE

• Measuring units: A/cm – kA/m – Gauss – Oersted – Tesla switchable
• (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
• Measuring probe MP-810A: Axial field probe ø 8mm with defined measuring distance of 2.0 mm
• Measuring probe MP-810T: Transversal field probe of 1.7 mm thickness with Hall Sensor distance of 0.9 mm
• Measuring range DC: 0-20,000 A/cm
• Measuring range AC: 2-20,000 A/cm

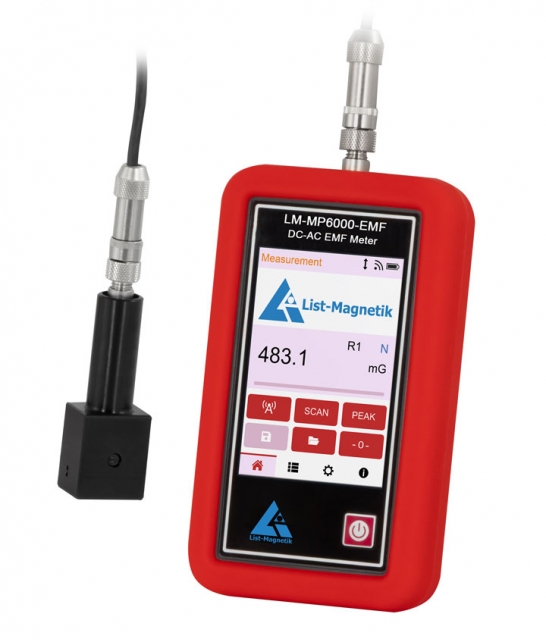

LIST-MAGNETIK LM-MP6000-EMF EMF FLUXGATE MAGNETIC FIELD METER FOR TESTING VERY WEAK MAGNETIC FIELDS ACC. IATA953
