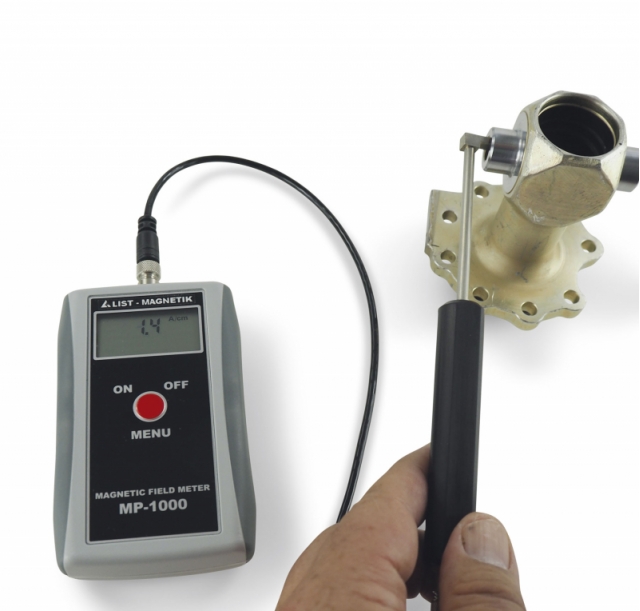

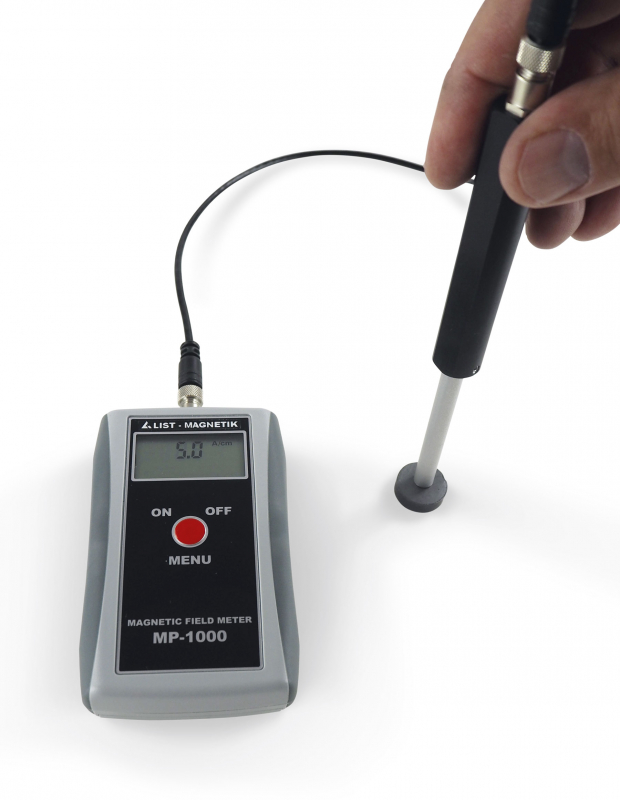

Magnetic Field Meter / Gaussmeter MP-1000
Magnetic field measuring device for measuring direct and alternating fields as well as for residual magnetism
From residual magnetism and crack testing to strong DC fields
The List-Magnetik MP-1000 magnetic field meter is equipped with externally connectable transverse and axial field probes, making it easy to carry out precise magnetic field measurements. This versatile device is ideal for measuring direct, alternating (true RMS), and pulsed fields, making it suitable for a wide range of magnetic field measurement applications. It is also ideal for measuring residual magnetism.
With just the push of a button, you can take precise magnetic measurements of weak geomagnetic fields up to 20,000 A/cm and strong fields (switchable in Gauss/Oersted), as well as magnetic flux density. The MP-1000 is a versatile digital gaussmeter, magnetometer, and teslameter that provides reliable and reproducible magnetic field strength and intensity values.
Thanks to its compatibility with professional magnetic field measurement systems and its support of high-precision magnetic field sensors, the MP-1000 is an ideal tool for magnetic field analysis and test procedures, as well as applications in industrial magnetic field measurement.
At low magnetic field strengths, extremely interference-free and precise magnetic field measurement is particularly important. The MP-1000's magnetic field sensors and measuring probes contain a microcontroller that digitizes and linearizes the Hall sensor's analog measurement signals while still in the probe, making this possible. This provides an important foundation for reliable magnetic measurements and precise results with weak magnetic field intensities.
This technology supports modern magnetic measurement methods, ensuring the MP-1000 delivers excellent results as a magnetometer, teslameter, or digital gaussmeter, even under extreme conditions. It enables precise magnetic field analysis for research and development, as well as for industrial magnetic field measurement and testing procedures.
Handy and easy-to-use magnetic field meter
The probe cable connects the display unit and magnetic field probe. It can be plugged in at both ends and easily replaced in the event of a break. This practical feature is ideal for anyone who needs reliable magnetic field measurements. The magnetic field meter's sophisticated design ensures stability and efficiency, even in demanding applications.

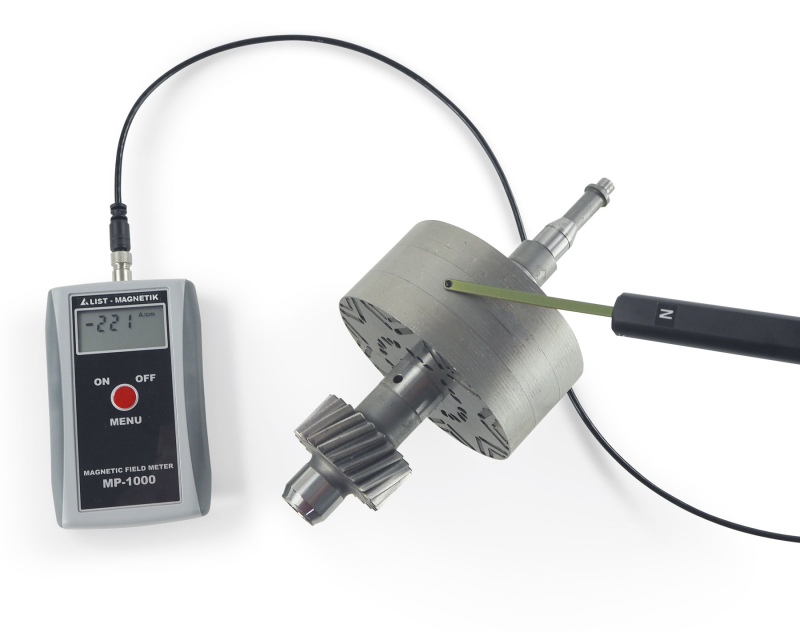

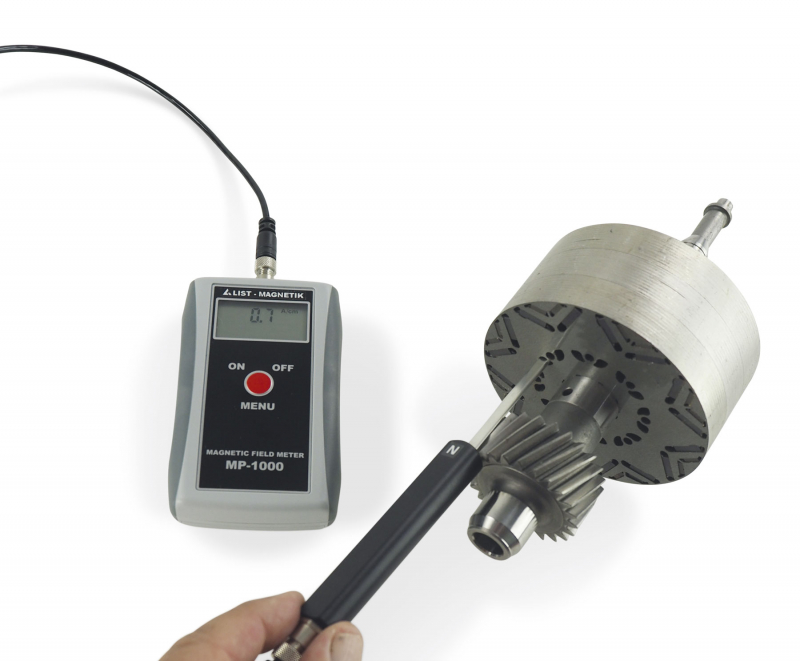

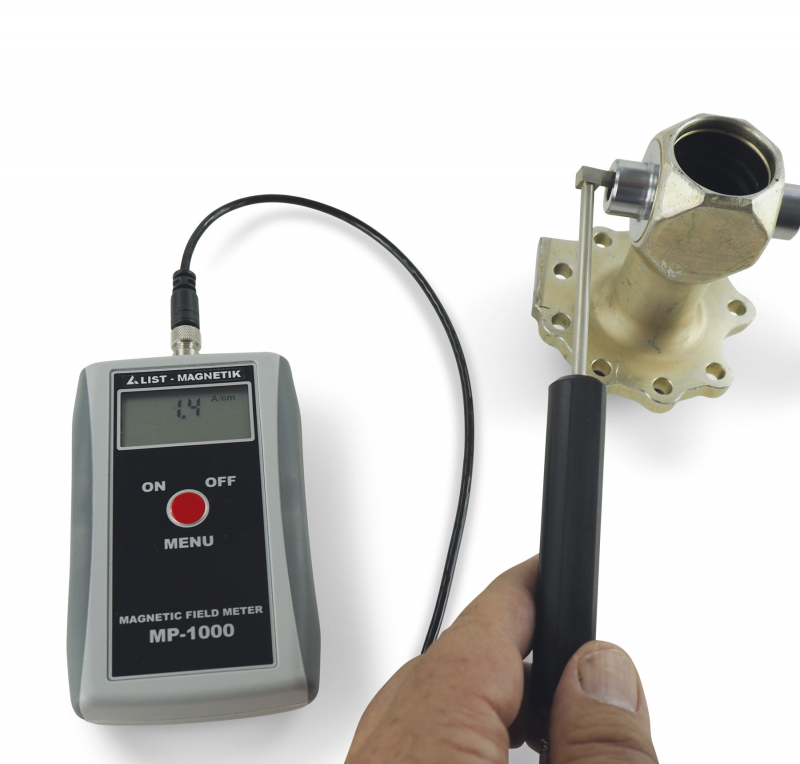

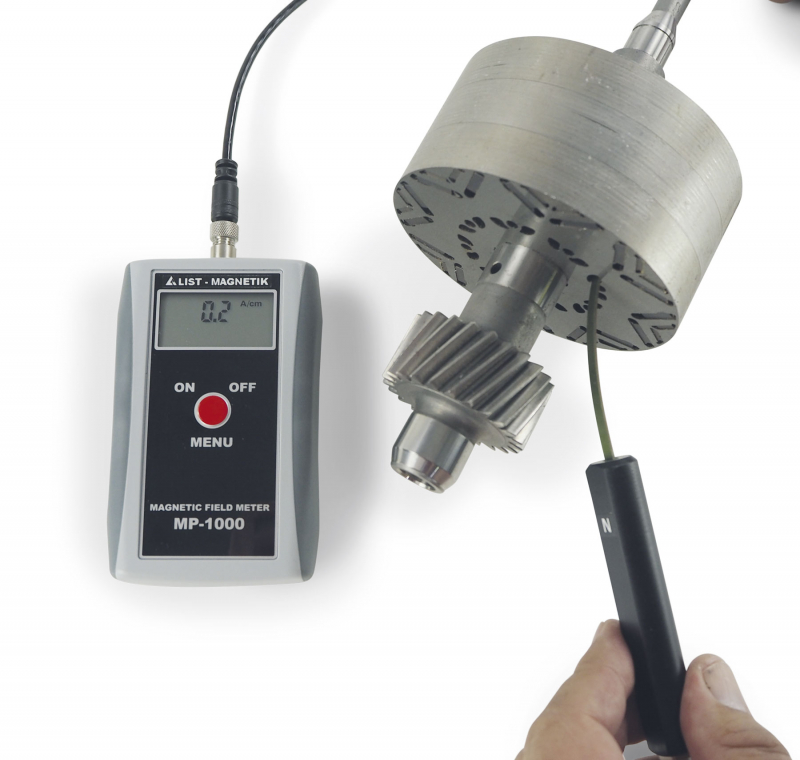

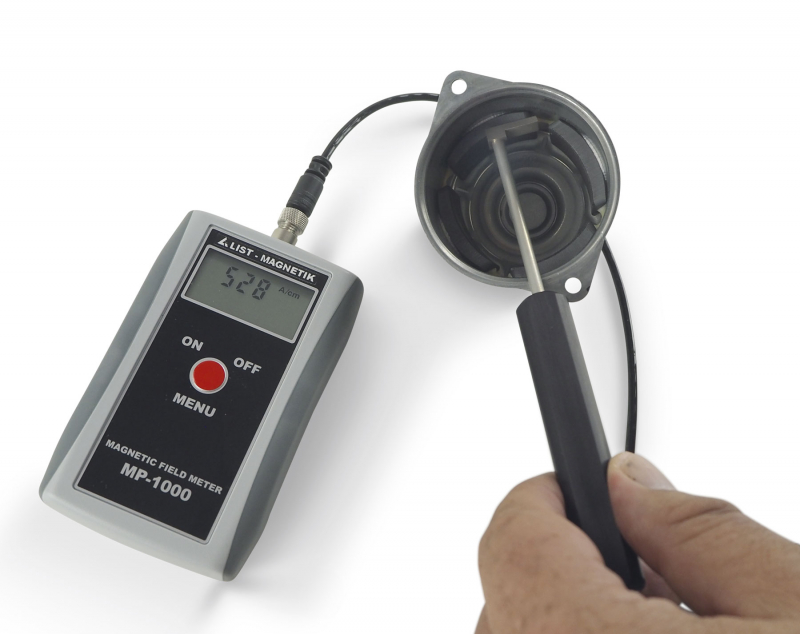

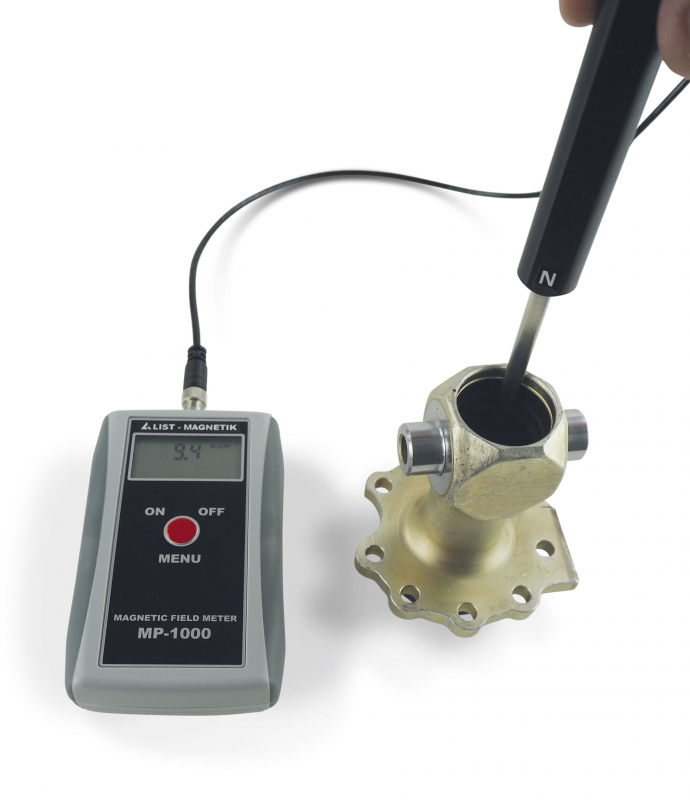

The MP-1000 magnetic field tester is a versatile tool that can be used to test for residual magnetism, measure magnetic fields of all kinds, and locate stray fields for crack detection. It is an ideal solution for magnetic flux measurement and magnetic field analysis in various industrial sectors. Whether you need to determine magnetic field strength or intensity or perform magnetic field test procedures, the MP-1000 is a powerful tool for all magnetic measurement methods.

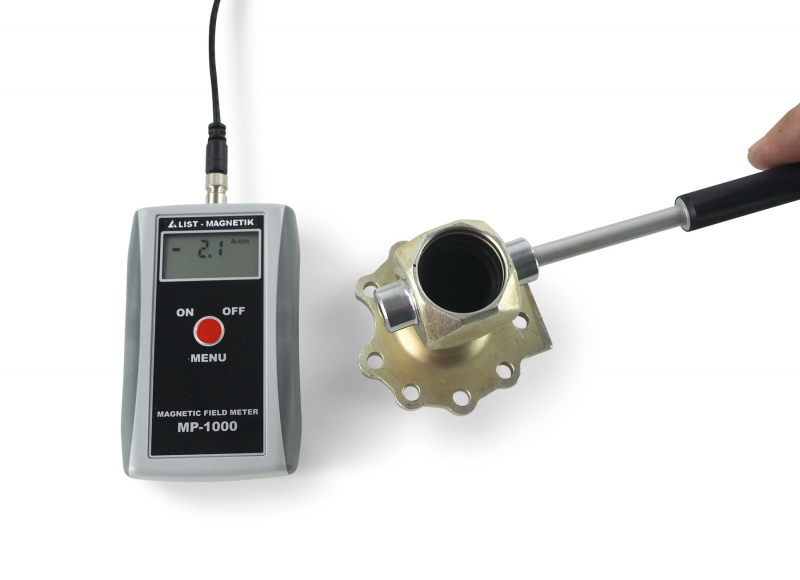

You can detect small differences in the strength of the magnetic field when measuring it using a magnetic field meter, magnetometer, gaussmeter, or teslameter. All of these terms describe the same thing. List-Magnetik's magnetic field measuring devices have a long service life and provide reproducible field strength values during magnetic field testing, from low field values just above the earth's magnetic field, through residual magnetism/remanence with low A/cm or Gauss/Oersted residual magnetic field values, to peak fields.
We also offer a calibration standard, or reference magnet, with which you can reliably check the accuracy of your magnetic field tester at any time. This ensures precise and accurate magnetic measurements, whether you are measuring magnetic flux density, conducting a magnetic field analysis, or using magnetic measurement methods in industry or research.

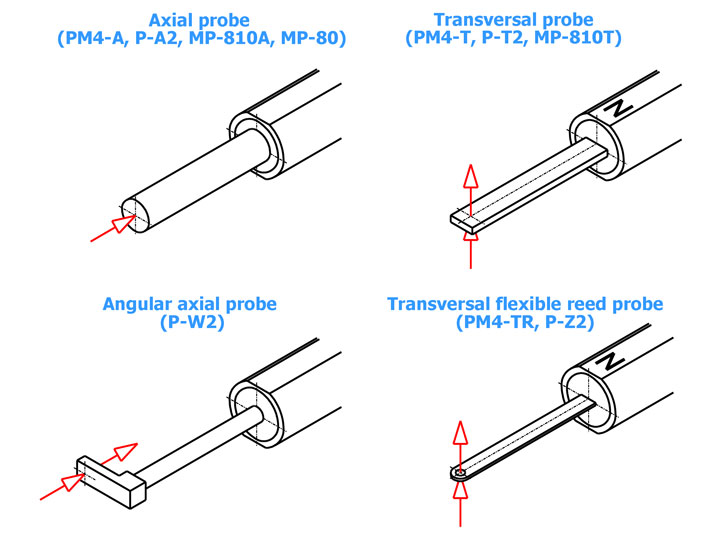

The MP-1000 has four probes for different measuring directions: axial, transversal, angled axial, and transversal tongue. Axial probes measure in the direction of the probe. Transversal probes measure at a 90° angle to the probe. The difference lies in how the Hall sensor is mounted. Transversal probes are better suited for measuring in cavities or narrow pipes.
Technical Data Magnetic Field Meter / Magnetometer / Gaussmeter / Teslameter MP-1000
- Measurement Units:A/cm - Gauss(Oe) switchable (1 A/cm = 1.256 Gauss = 1.256 Oersted)
- Applicable measuring probes:axial probes P-A2 and P-W2, transversal probes P-T2 and P-Z2
- Measuring range DC:0-20,000 A/cm
- Measuring range AC:20-20,000 A/cm
- Accuracy:in the homogeneous field ± 1 A/cm up to 50 A/cm, ± 2 % of measured value from 50 A/cm
- Resolution:0–100 A/cm: 0.1 A/cm
>= 100 A/cm: 1 A/cm
>= 1,000 A/cm: 10 A/cm
>= 10,000 A/cm: 100 A/cm
- AC Frequency Range:10 Hz – 5 kHz
- Peak Hold:with Impulse duration >= 0.1 msec.
- Operating conditions:0-50 °C
- Storage conditions:0-50 °C, 10-90%
- Protection class:IP64
- Display:LCD display 3 digit
- Display size:40 x 20 mm
- Power Supply:2x 1.5 V AA Mignon
- Operating time:approx. 35 h
- Dimensions:105 x 65 x 26 mm
- Packaging dimensions:28 x 23 x 9 cm
- Weight:137 g with batteries
Standard accessories

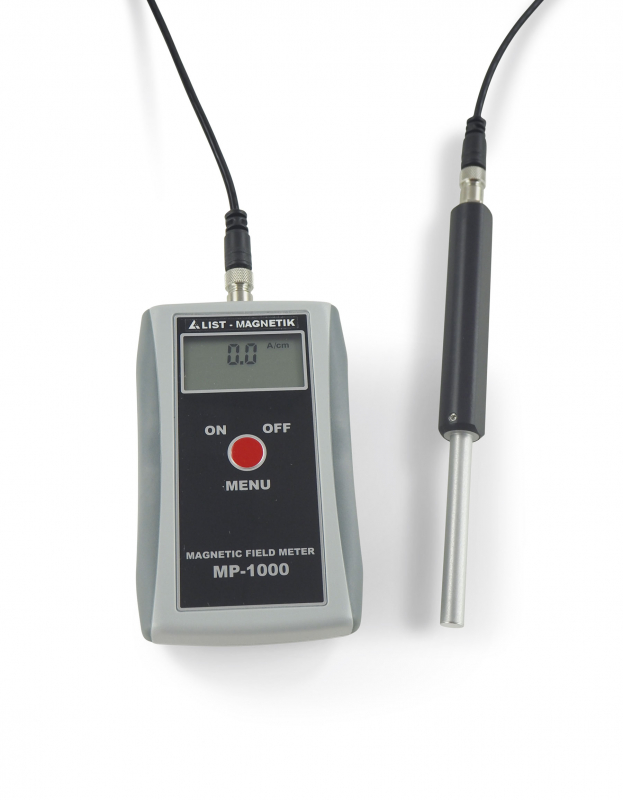

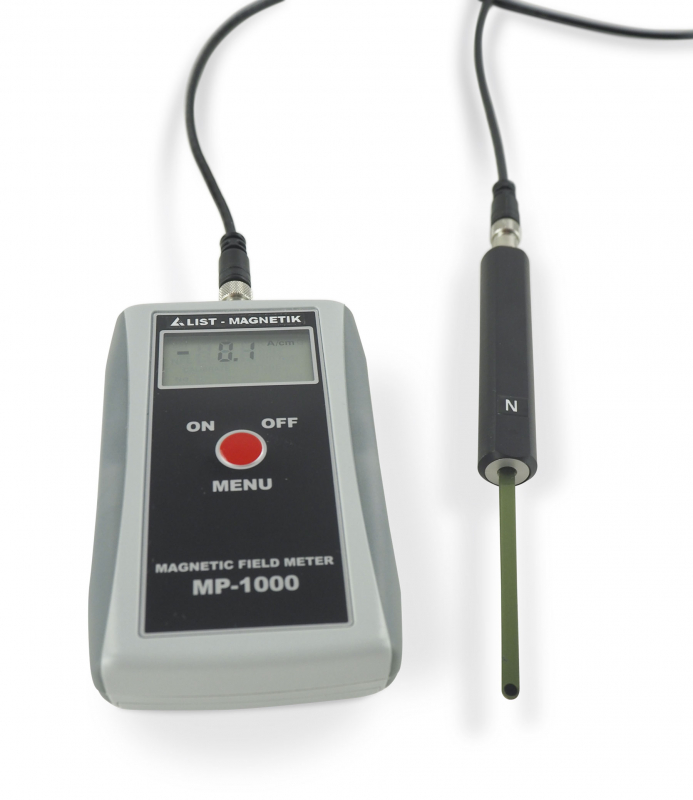

LM-MP1000-A2 / MP-1000 with Axial Field Probe P-A2
Hall Sensor distance: 2.0 mm
Total length of the probe: 150 mm
Length of the probe handle: 85 mm
Diameter of the probe tube: 7.5 mm
Size Axial Field Probe P-A2To the shop Axial Field Probe P-A2

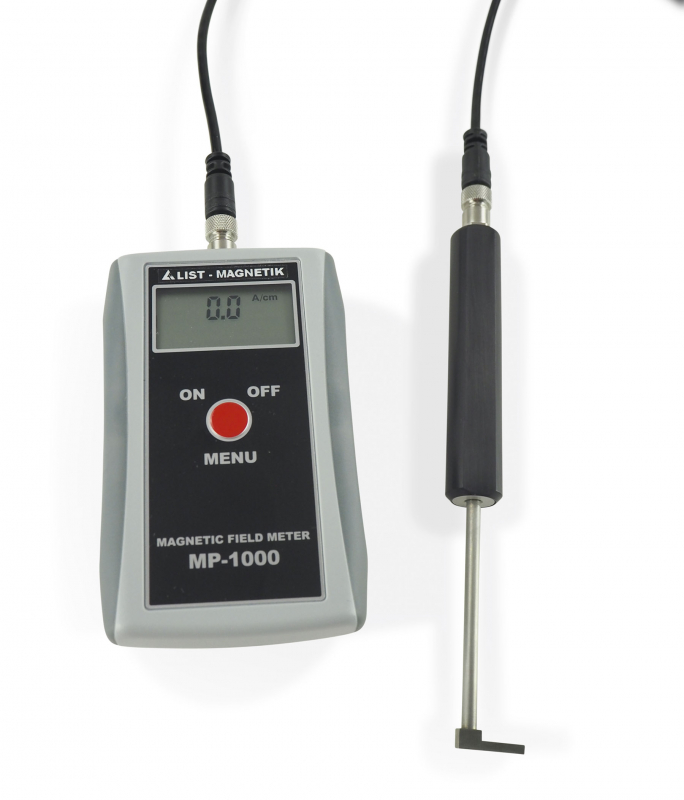

LM-MP1000-T2 / MP-1000 with Transversal Field Probe P-T2
Hall Sensor distance: 0.9 mm
Probe thickness: 1.7 mm
Total length of the probe: 155 mm
Length of the probe handle: 85 mm
Width of the probe tube: 5.5 mm
Size Transversal Field Probe P-T2To the shop Transversal Field Probe P-T2
LM-MP1000-Z2 / MP-1000 with Transversal Flexible Reed Probe P-Z2
Hall Sensor distance: 0.4 mm
Probe thickness: 0.7 mm
Total length of the probe: 150 mm
Length of the probe handle: 85 mm
Width of the probe reed: 4.3 mm
Size Transversale Flexible Reed Probe P-Z2To the shop Transversale Flexible Reed Probe P-Z2
LM-MP1000-W2 / MP-1000 with Angular Axial Probe P-W2
Total length of the probe: 150 mm
Length of the probe handle: 85 mm
Size Angular Axial Probe P-W2To the shop Angular Axial Probe P-W2
All probes are plug-in type
Recommended options
Recommended Optionals Magnetic Field Meter MP-1000

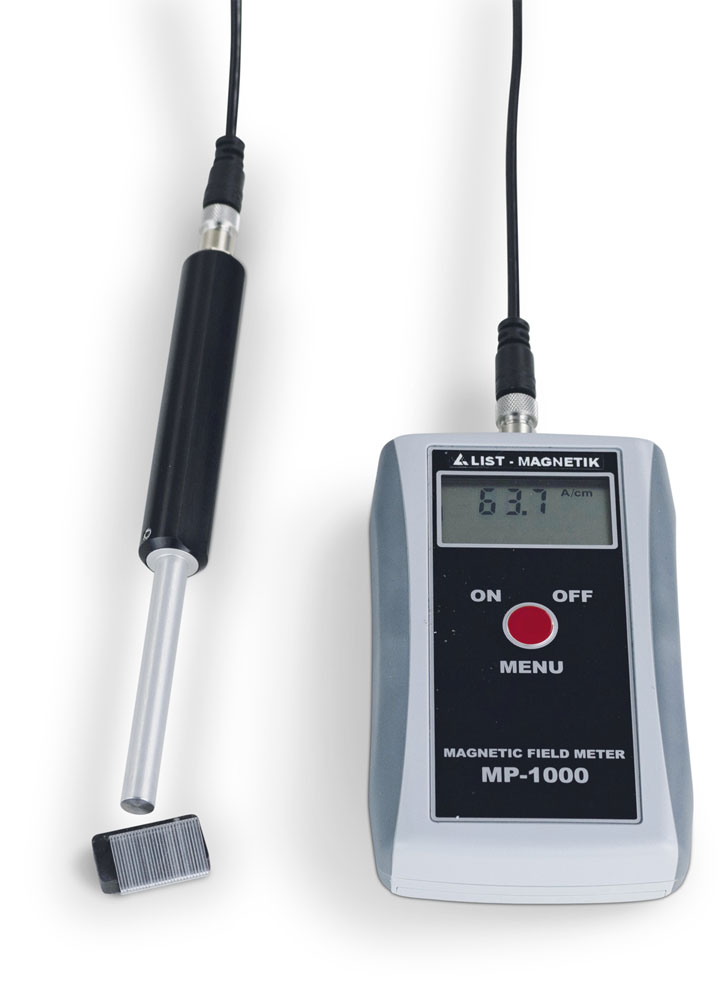

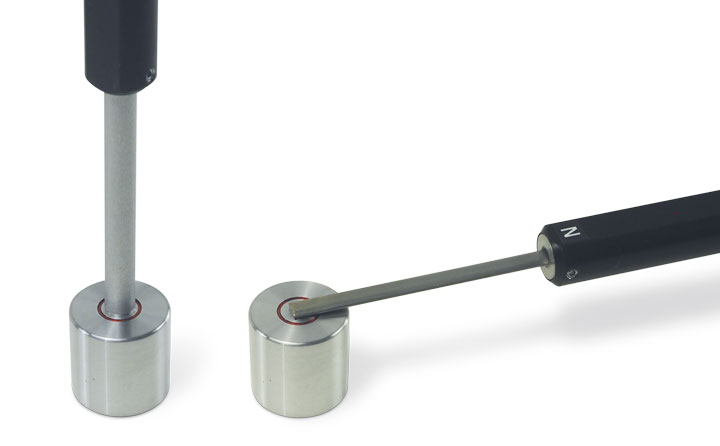

Calibration Standard for Magnetic Fields
A calibration standard is a reference magnet that allows the user to verify the accuracy of a matched probe.
Size Calibration Standard for Magnetic Fields with axial probeTo the shop Calibration Standard for Magnetic Fields

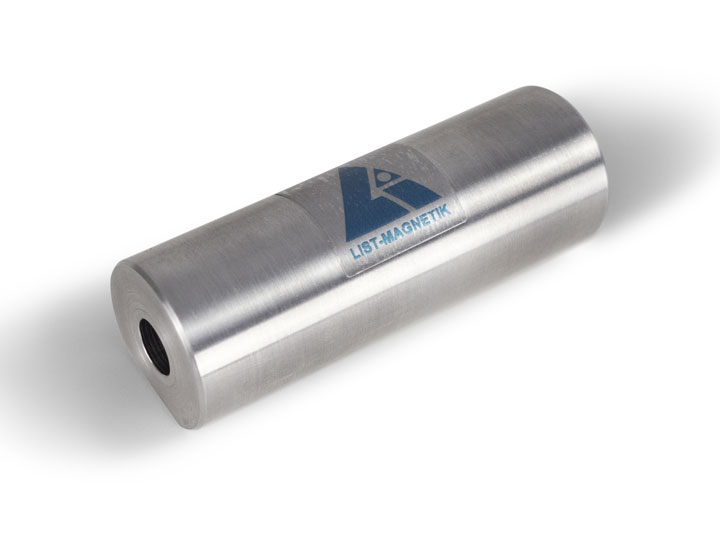

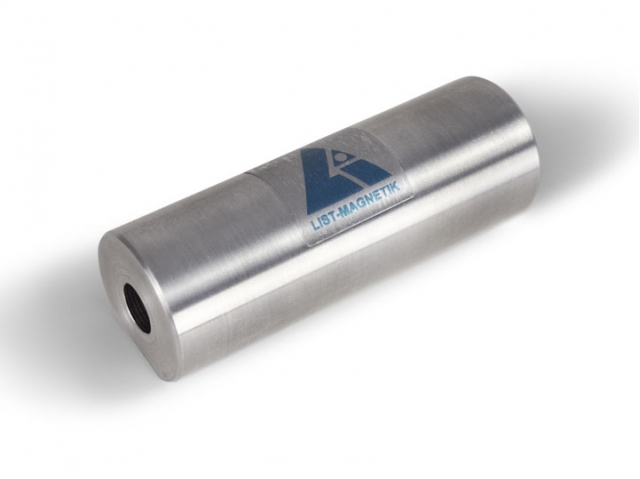

Zero Gauss Chamber NGK-10
In order to be able to carry out the probe calibration for magnetic field measuring devices independently of the earth's magnetic field, a shielded Zero Gauss Chamber helps
Datasheet
PDF, 0.32 Mb
