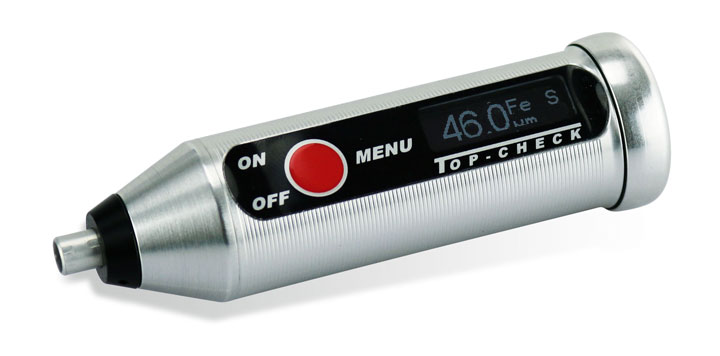

Coating Thickness Meter LIST-MAGNETIK TOP-CHECK Ferro-1000

Code: TOP-CHECK Ferro-1000



Datasheet PDF, 0.57 Mb


Description

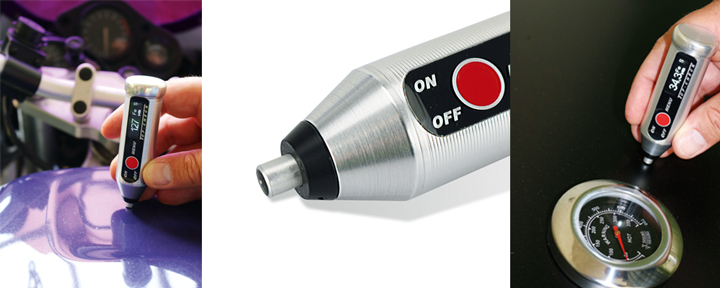

The TOP-CHECK Ferro-1000 coating thickness gauges from List-Magnetik use a probe that requires a small contact area and low contact force. These compact gages, barely larger than a probe, are ideal for measuring thin coatings on uneven or complex surfaces such as tin cans.

The handy metal housing is splash-proof to IP 64 for trouble-free coating thickness measurements in harsh environments. With a single push button and self-explanatory multi-language menu navigation, the coating thickness gauges are easy to use.

Measure insulating coatings on iron and steel
The TOP-CHECK Ferro-1000 is the right choice for iron and steel substrates. The coating thickness gauge uses a magnetic inductive probe to measure coatings of varnish, paint, plastic, rubber, ceramics, galvanic coatings, and electroplated coatings (except nickel) according to ISO 2178.

Manage and Share Measurement Data with Free App

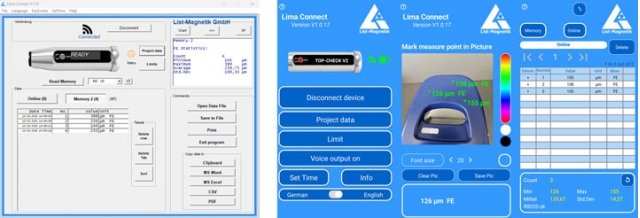

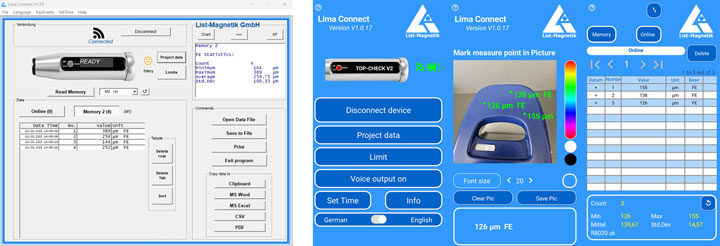

To further process your measurement data, you can pair your coating thickness gauge with Android and iOS mobile devices. Or communicate with a Windows PC. Wireless technology makes it possible. With the Lima Connect app, you can manage projects and assign measurement points to a photo. Measurement results can be statistically evaluated and graphically displayed. The app is free and available for Android, iOS and Windows.

Technical Data Coating Thickness Meter TOP-CHECK Ferro-1000

  • Applications:Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178)
  • Measuring probe:sensing device, springy
  • Measuring range:on steel and iron: 0-1000 μm
  • Smallest Area:ø 2 mm
  • Smallest curvature radius:concave 6 mm, convex 1 mm
  • Calibration value:300 µm
  • Accuracy:below 100 µm ± 1 µm, > 100 µm: ± 1 %
  • Resolution:1-100 µm: 0.1 µm, > 100 µm: 1 µm
  • Measuring units:μm and mils
  • Operating conditions:0 - 50° C
  • Storage conditions:0-50 °C, 10-90%
  • Protection class:IP64
  • Display:illuminated high contrast graphic OLED display
  • Display size:25 x 10 mm
  • Menu navigation:English, German, French, Italian, Spanish, Hungarian, Polish, Dutch
  • Data logger:4000 measured values flexibly divisible
  • Statistics:count / maximum / minimum / average / standard deviation
  • Interface:wireless interface for communication with Android, iOS and Windows
  • App for Android, iOS, Windows:free of charge via Google Play Store, Apple App Store, List-Magnetik website
  • Power supply:1x 1.5 V AA Mignon
  • Operating time:approx. 50 hours
  • Dimensions:Ø 28 x 95 mm
  • Packaging dimensions:12 x 12 x 4 cm
  • Weight:76 g (with battery)


Standard accessories

Models and scope of delivery


Coating Thickness Meter TOP-CHECK Ferro-1000
Coating Thickness Meter LM-TC-F1000 / Model TOP-CHECK Ferro-1000 with calibration base plate FE, 2 calibration foils, spare battery and case, including calibration certificate. The app for Android, iOS and Windows is free.


More products LIST-MAGNETIK

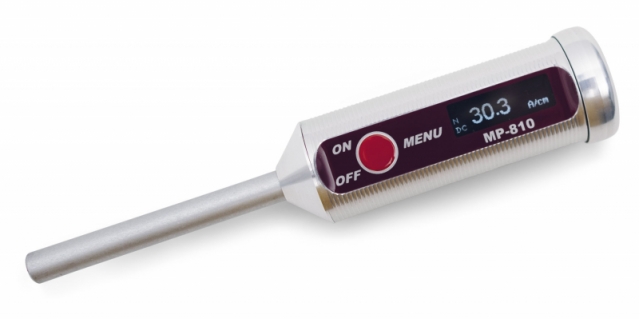

LIST-MAGNETIK MP-810 GAUSSMETER TESLAMETER MAGNETOMETER MAGNETIC FIELD METER COMPACT PORTABLE

• Measuring units: A/cm – kA/m – Gauss – Oersted – Tesla switchable
• (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
• Measuring probe MP-810A: Axial field probe ø 8mm with defined measuring distance of 2.0 mm
• Measuring probe MP-810T: Transversal field probe of 1.7 mm thickness with Hall Sensor distance of 0.9 mm
• Measuring range DC: 0-20,000 A/cm
• Measuring range AC: 2-20,000 A/cm

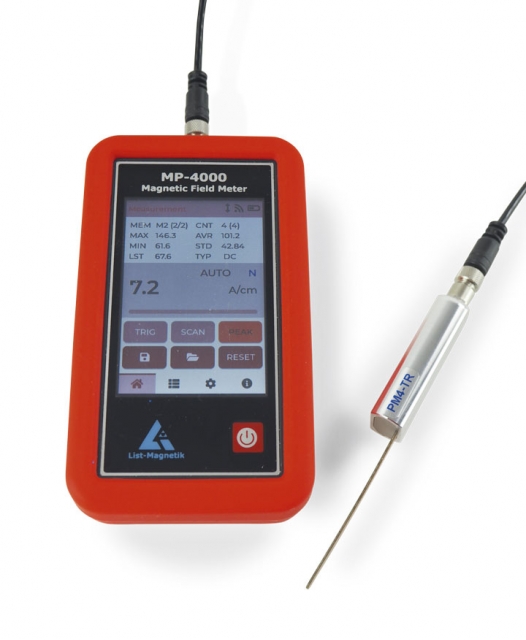

LIST-MAGNETIK MP-4000 GAUSSMETER TESLAMETER FOR MAGNETIC FIELD TESTING METER

• Measurements in A/cm, kA/m, Gauss, Tesla
• Protection class: IP64
• Display: LCD touch panel color 320x480 pixel
• Data logger: 10,000 measurements, flexibly divisible
• App for Android, iOS, Windows: free of charge


COATING THICKNESS METER LIST-MAGNETIK TOP-CHECK FERRO-1000

• Applications: Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178)
• Measuring probe: sensing device, springy
• Measuring range: on steel and iron: 0-1000 μm
• Smallest Area: ø 2 mm

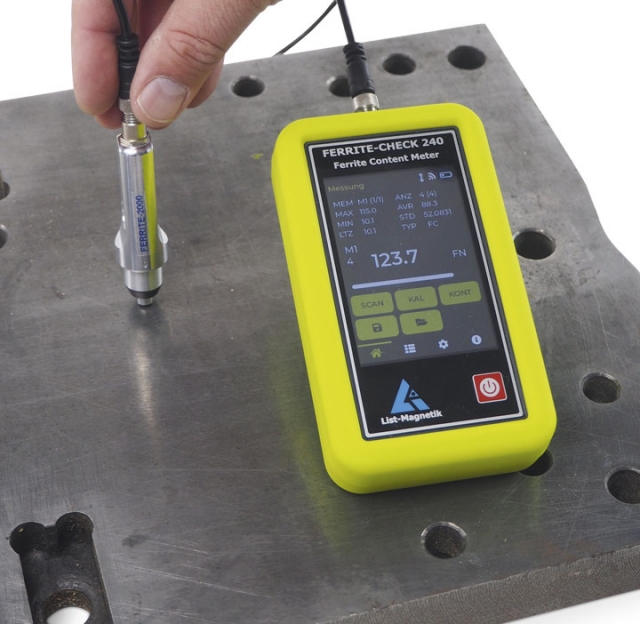

LIST-MAGNETIK FERRITECHECK-240 FERRITE CONTENT METER IN AUSTENITE AND DUPLEX STEELS

• Applications: Measurement of ferrite content in austenitic and duplex steels
• Probe: FERRITE-2000, special probe for ferrite testing. Externally connected
• Measurement units: Fe% and FN
• Measuring range: 0.2 - 100 Fe% 0.2 - 140 FN
• Measurement method: Single measurement or scanning
• Smallest measuring area: ø 2 mm
• Accuracy: 5 %
• Resolution: under 10: 0.01, over 10: 0.1

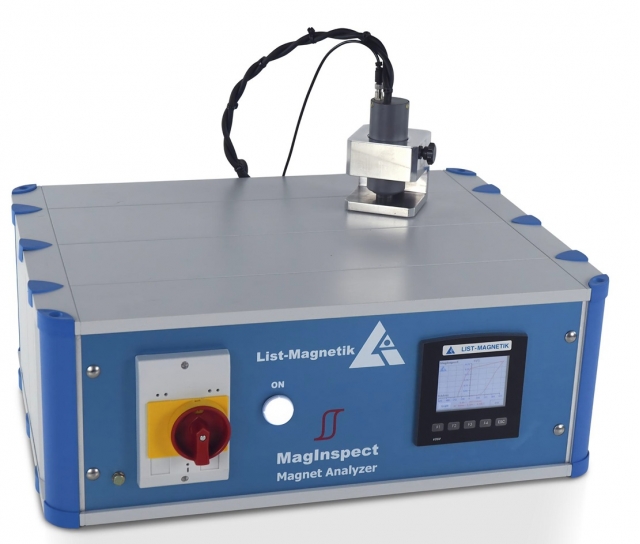

LIST MAGNETIK MAGINSPECT MAGNET ANALYZER

• measuring magnetic quality of hard magnetic materials such as AlNiCo, ferrite or rare earth materials
• Coercivity (I_Hc)
• Remanence (Br)
• Saturation magnetization (Ms)
• Hysteresis loop

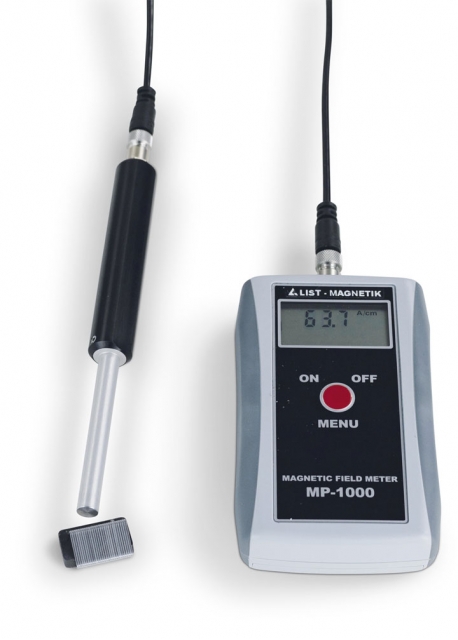

LIST-MAGNETIK MP-1000 MAGNETIC FIELD METER

• Measurement Units: A/cm - Gauss(Oe) switchable (1 A/cm = 1.256 Gauss = 1.256 Oersted)
• Applicable measuring probes: axial probes P-A2 and P-W2, transversal probes P-T2 and P-Z2
• Measuring range DC: 0-20,000 A/cm
• Measuring range AC: 20-20,000 A/cm

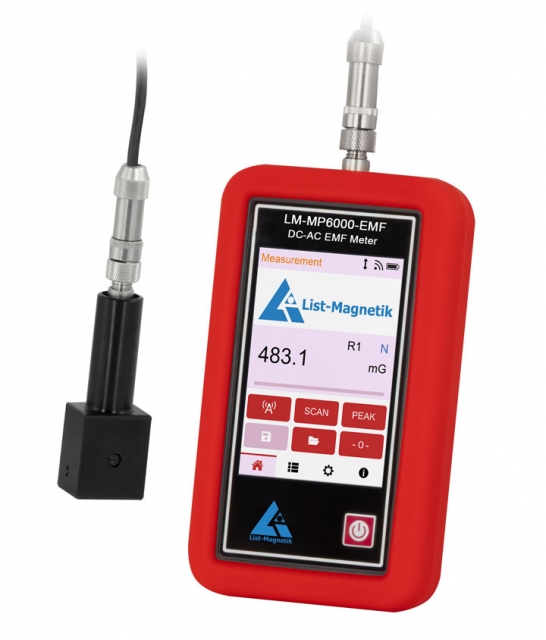

LIST-MAGNETIK LM-MP6000-EMF EMF FLUXGATE MAGNETIC FIELD METER FOR TESTING VERY WEAK MAGNETIC FIELDS ACC. IATA953

• Measuring units: mG, G, µT, mT, A/m
• Probe: Transversal fluxgate measuring probe PMF61
• Measuring range DC: 0-4 G / 0-400 µT (0.4 mT) / 0-300 A/m
• Measuring range AC: 0-3 G / 0-300 µT (0.3 mT) / 0-240 A/m effective
• Accuracy: ± 2% of measured value / ± 0.8 µT
• Resolution: 0.1 mG / 0.01 µT / 0.01 A/m
• Frequency range AC: max. 2 kHz

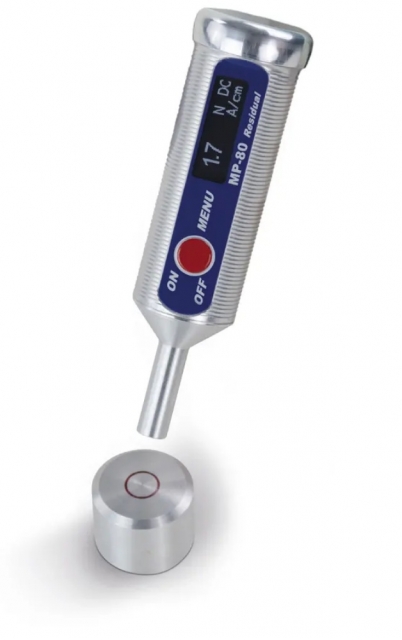

LIST-MAGNETIC MP-80 V2 RESIDUAL MAGNETIC FIELD METER MAGNETOMETER GAUSSMETER FOR MAGNETISM IN METAL

• Measuring units: A/cm – kA/m - Gauss (Oe) – Tesla
• Measuring probe: integrated axial field probe, ø 8mm with defined measuring distance of 2.0 mm
• Measuring range DC: Residual Magnetism / Remanence in the range 0-100 A/cm
• Accuracy: in the homogeneous field ± 0,3 A/cm below 10 A/cm,
• ± 3% of measured value from 10 A/cm
• Resolution: 0.1 A/cm or 0.01 mT

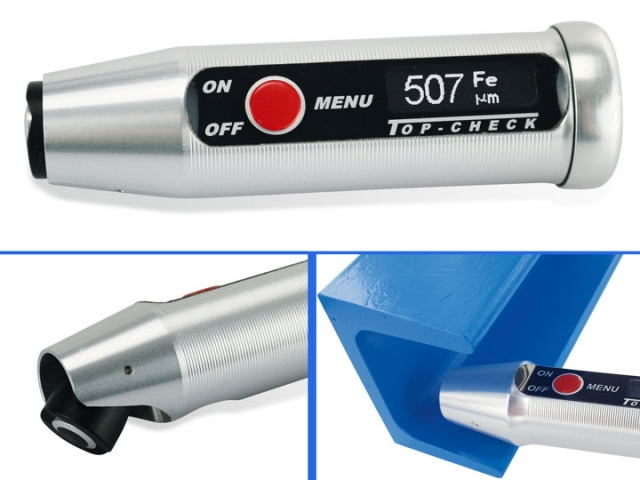

COATING THICKNESS METER TOP-CHECK

• Applications: Measurement of paint, lacquer, plastic and galvanic coatings on steel (ISO 2178) / insulating coatings on non-ferrous metals (ISO 2360; only with TOP-CHECK Dual), Automatic detection of base material
• Measuring probe: pivotable by 90°
• Measuring range: on steel and iron 0-5000 µm, on NF metals 0-2000 µm
• Smallest measuring area: TOP-CHECK Dual ø 8 mm, TOP-CHECK Ferro ø 4 mm
• Minimum radius of curvature: concave 38 mm, convex TOP-CHECK Dual 6 mm, TOP-CHECK Ferro 4 mm

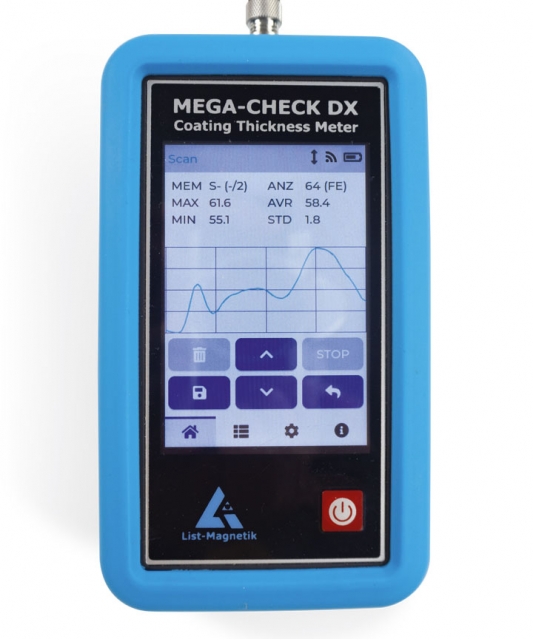

COATING THICKNESS METER LIST-MAGNETIK MEGA-CHECK DX
