LIST-MAGNETIK FerriteCheck-240 Ferrite content Meter in austenite and duplex steels

Code: LIST-MAGNETIK FerriteCheck-240



Datasheet PDF, 0.61 Mb


Description

Ferrite content meter FERRITE-CHECK 240
for measuring the ferrite content in austenitic and duplex steels, with external probe

Convenient Ferrite Content Measurement

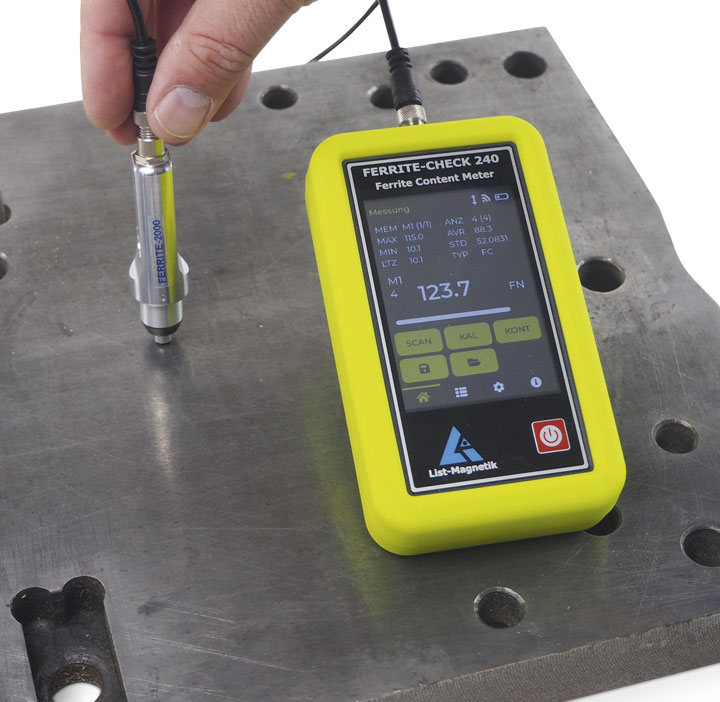

The List-Magnetik FERRITE-CHECK 240 is a convenient ferrite content measuring device with a color display and an external probe. It measures the ferrite content in austenitic and duplex steels according to the Basel standard DIN EN ISO 8249 using the magnetic induction method. This method is essential for testing ferromagnetic materials and ensures precise results, especially when checking weld seams and other critical joints.

Thanks to its high sampling rate, the newly developed digital probe technology enables extremely stable measurements. The signals are digitized in the probe for absolutely interference-free and precise measurements, allowing for very accurate and reproducible results.

A great help for China standards
GB/T 150.1-2024 is the first part of the Chinese national standard for metal pressure vessels, focusing on General Requirements. This standard, published on July 24, 2024, specifies the general requirements for the material, design, fabrication, inspection, and testing of metal pressure vessels used in China. FERRITE-CHECK 240 helps you verify compliance with the ferrite content requirements of this standard.

Color display of ferrite content
The ferrite content meter features an innovative graphic LCD touch panel with user guidance and a resolution of 320 x 480 pixels. Its yellow-green silicone frame effectively protects the housing from damage, making it robust enough for use in materials testing and analysis. It can measure in both FN (ferrite number) and Fe% (iron content), enabling precise assessment of ferrite content in austenitic and duplex steels.

Measurement of ferrite content in welds
It is particularly important to measure the ferrite content of welded duplex steels to ensure the weld seam has sufficient ferrite content to guarantee the strength of the welded joint. Insufficient heat input or incorrect cooling in the welding area may result in too low of a ferrite content, which negatively affects the mechanical properties of the weld seam.

Fast and Continuous Ferrite Content Measurement
The FERRITE-CHECK 240 accurately and quickly determines the ferrite content. To detect the weld seam on smooth or polished surfaces, switch the device to scan mode. As the probe is moved along the surface, the device continuously saves the measured values and displays the statistics of the minimum, maximum, and average values of the measurement series.

Calibration of the Ferrite Content Tester
The FERRITE-CHECK 240 is supplied with 3 calibration standards traceable to the NIST standard.

Interfaces and operation
Thanks to the flexible, divisible memory for measured values and the wireless interface for Windows, Android, and iOS, you have all the options you need to record and process your measured values.

The device has an SCPI interface that allows it to carry out remote-controlled measurements in industrial line operation and supply measured values. The USB connection ensures the power supply and continuous operation.

The device can be powered by three AA batteries or an external source connected via USB. This allows you to operate the device with a power bank or a mains adapter.

The probe cable can be plugged in at both ends to connect the display device and digital probe. It can also be easily replaced in the event of a break.

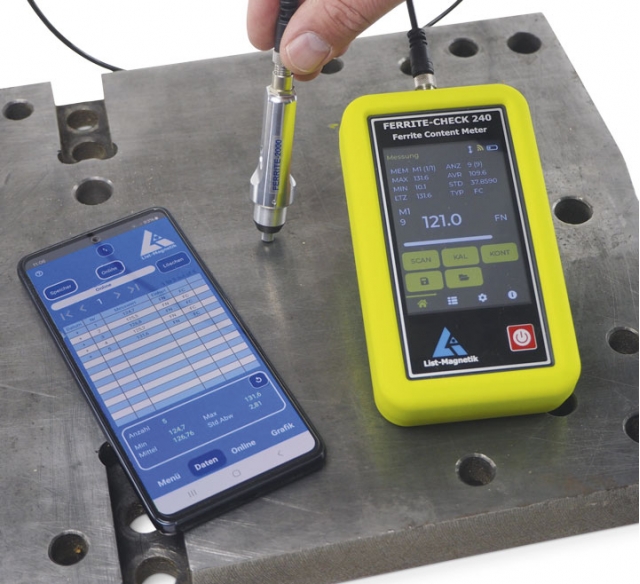

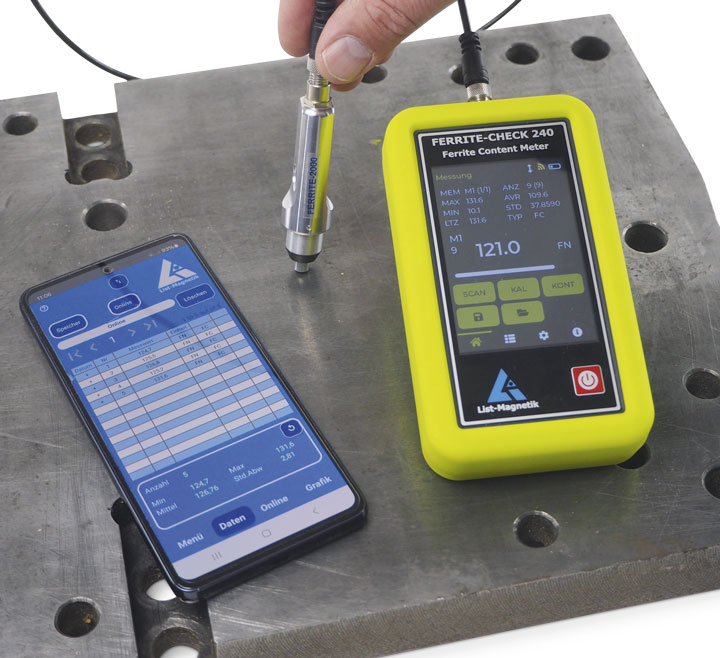

Manage and send measurement data with a free application

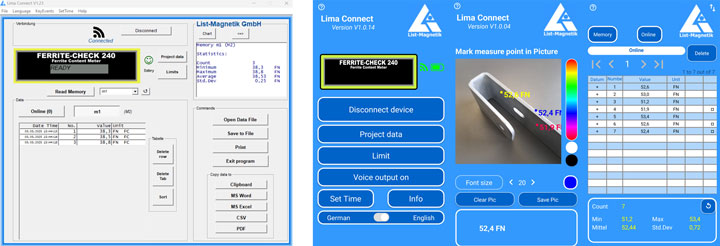

To further process your measurement data, you can pair your measuring device with mobile Android and iOS devices. Or you communicate with a Windows PC. This is made possible by wireless technology. With the Lima Connect app you can manage projects and assign the measuring points on a photo. The measurement results can be statistically evaluated and displayed graphically. The app for Android, iOS and Windows is free.

Technical Data Ferrite content meter FERRITE-CHECK 240

Applications:Measurement of ferrite content in austenitic and duplex steels
Probe:FERRITE-2000, special probe for ferrite testing. Externally connected
Measurement units:Fe% and FN
Measuring range:0.2 - 100 Fe%
0.2 - 140 FN
Measurement method:Single measurement or scanning
Smallest measuring area:ø 2 mm
Accuracy:5 %
Resolution:under 10: 0.01, over 10: 0.1
Operating conditions:0 - 50° C
Storage conditions:0-50 °C, 10-90%
Protection class:IP64
Display:LCD color touch panel 320x480 pixels
Display size:75 x 50 mm
Menu navigation:English, German, Italian, French, Spanish
Data logger:10,000 measurements, flexibly divisible
Statistics:count / maximum / minimum / average / standard deviation
Interface:wireless interface for communication with Android, iOS and Windows
App for Android, iOS, Windows:free via Google Play Store, Apple App Store, List-Magnetik website
External control:USB and SCPI communication interface
Power supply:3x 1.5V AA Mignon.
External power supply can be connected via USB
Operating time:approx. 25 hours with battery, unlimited with external power supply
Dimensions:150 x 85 x 35 mm
Packaging dimensions:28 x 23 x 9 cm
Weight:320 g with batteries



Standard accessories

Models and scope of delivery Ferrite content meter FERRITE-CHECK 240

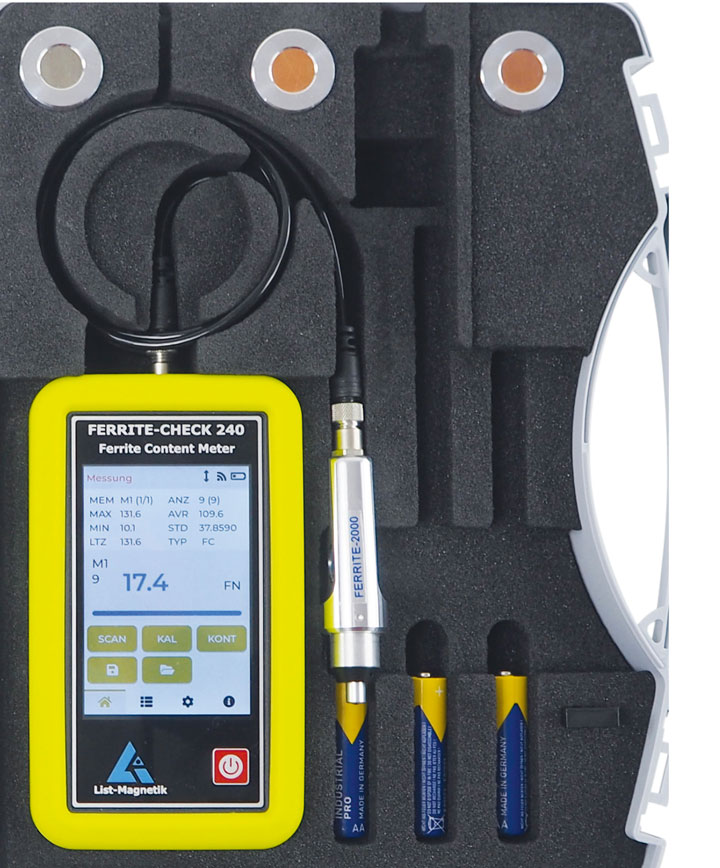

LM-FC240 / Model FERRITE-CHECK 240 with probe FERRITE-2000, 3 calibration standards and case, including calibration certificate


More products LIST MAGNETIK

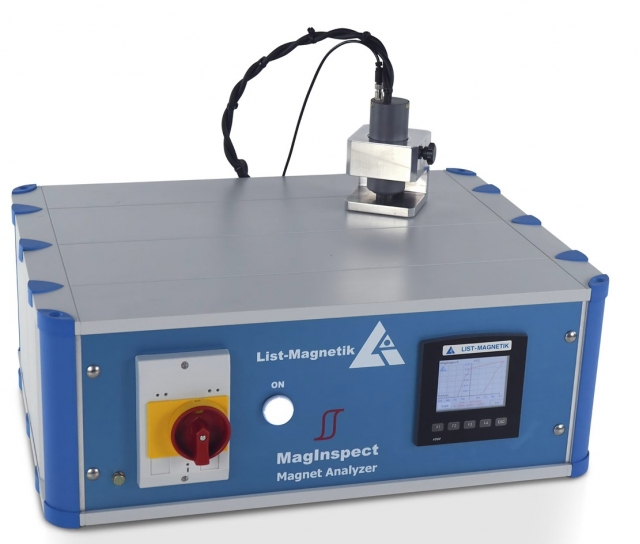

LIST MAGNETIK MAGINSPECT MAGNET ANALYZER

• measuring magnetic quality of hard magnetic materials such as AlNiCo, ferrite or rare earth materials
• Coercivity (I_Hc)
• Remanence (Br)
• Saturation magnetization (Ms)
• Hysteresis loop

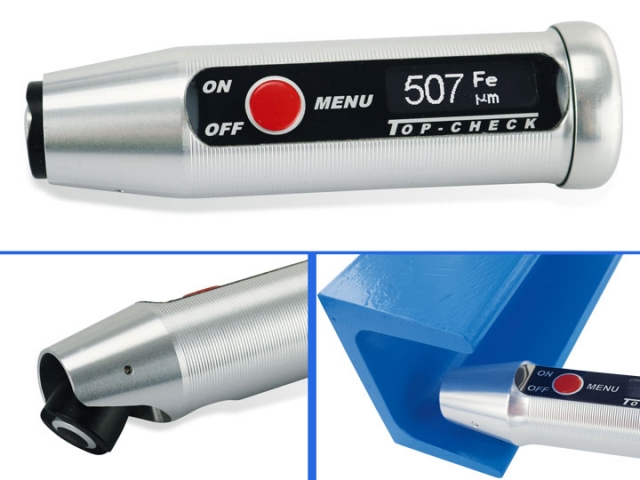

COATING THICKNESS METER LIST-MAGNETIK TOP-CHECK FERRO-1000

• Applications: Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178)
• Measuring probe: sensing device, springy
• Measuring range: on steel and iron: 0-1000 μm
• Smallest Area: ø 2 mm


LIST-MAGNETIK FERRITECHECK-240 FERRITE CONTENT METER IN AUSTENITE AND DUPLEX STEELS

• Applications: Measurement of ferrite content in austenitic and duplex steels
• Probe: FERRITE-2000, special probe for ferrite testing. Externally connected
• Measurement units: Fe% and FN
• Measuring range: 0.2 - 100 Fe% 0.2 - 140 FN
• Measurement method: Single measurement or scanning
• Smallest measuring area: ø 2 mm
• Accuracy: 5 %
• Resolution: under 10: 0.01, over 10: 0.1

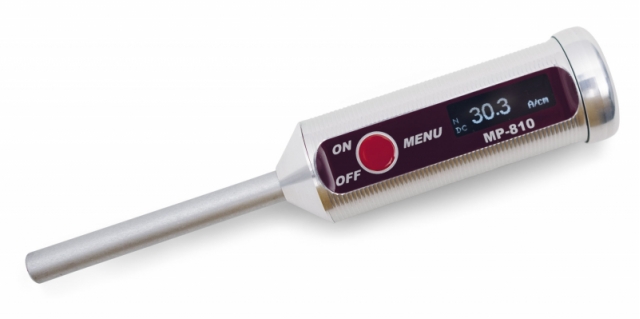

LIST-MAGNETIK MP-810 GAUSSMETER TESLAMETER MAGNETOMETER MAGNETIC FIELD METER COMPACT PORTABLE

• Measuring units: A/cm – kA/m – Gauss – Oersted – Tesla switchable
• (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
• Measuring probe MP-810A: Axial field probe ø 8mm with defined measuring distance of 2.0 mm
• Measuring probe MP-810T: Transversal field probe of 1.7 mm thickness with Hall Sensor distance of 0.9 mm
• Measuring range DC: 0-20,000 A/cm
• Measuring range AC: 2-20,000 A/cm

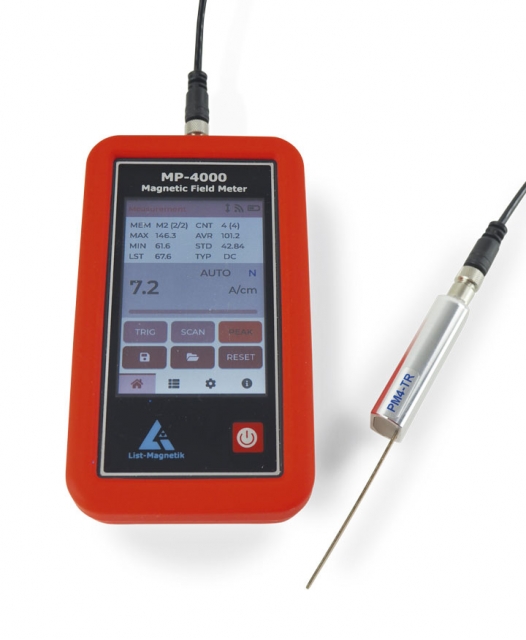

LIST-MAGNETIK MP-4000 GAUSSMETER TESLAMETER FOR MAGNETIC FIELD TESTING METER

• Measurements in A/cm, kA/m, Gauss, Tesla
• Protection class: IP64
• Display: LCD touch panel color 320x480 pixel
• Data logger: 10,000 measurements, flexibly divisible
• App for Android, iOS, Windows: free of charge

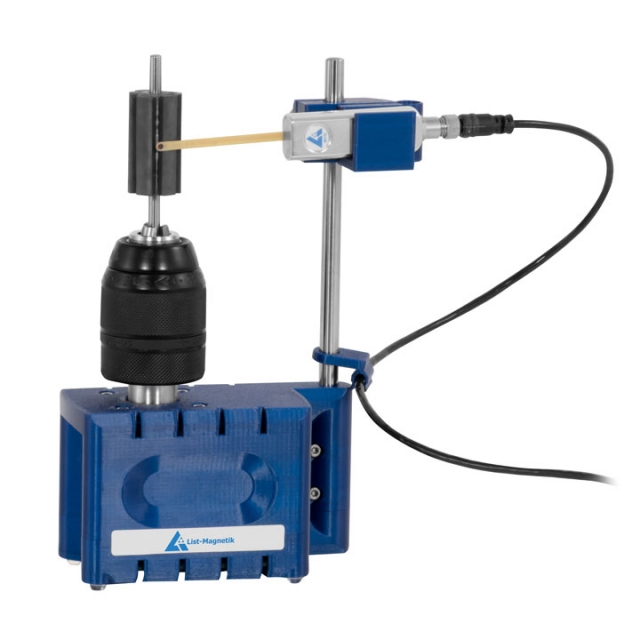

LIST-MAGNETIK ROTOR-CHECK 400 FOR TESTING MAGNETIC FIELD STRENGTH CURVE OF ROTORS

• Measuring units: A/cm – kA/m – Gauss – mTesla switchable (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT)
• Probe: Transversal Flexible Reed Probe LM-MP-PM4-TR
• Measuring range DC: 0-40,000 A/cm (± 4000mT)
• Accuracy: ± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm
• Angle accuracy: ± 0.15°
• Measuring direction: Radial or axial
• Resolution: 0.1 A/cm (0.01 mT)

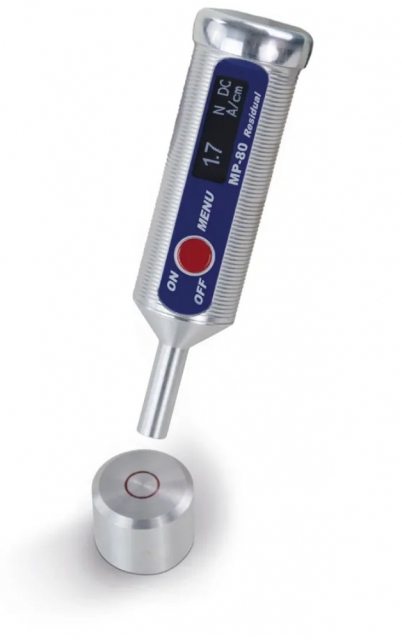

LIST-MAGNETIC MP-80 V2 RESIDUAL MAGNETIC FIELD METER MAGNETOMETER GAUSSMETER FOR MAGNETISM IN METAL

• Measuring units: A/cm – kA/m - Gauss (Oe) – Tesla
• Measuring probe: integrated axial field probe, ø 8mm with defined measuring distance of 2.0 mm
• Measuring range DC: Residual Magnetism / Remanence in the range 0-100 A/cm
• Accuracy: in the homogeneous field ± 0,3 A/cm below 10 A/cm,
• ± 3% of measured value from 10 A/cm
• Resolution: 0.1 A/cm or 0.01 mT

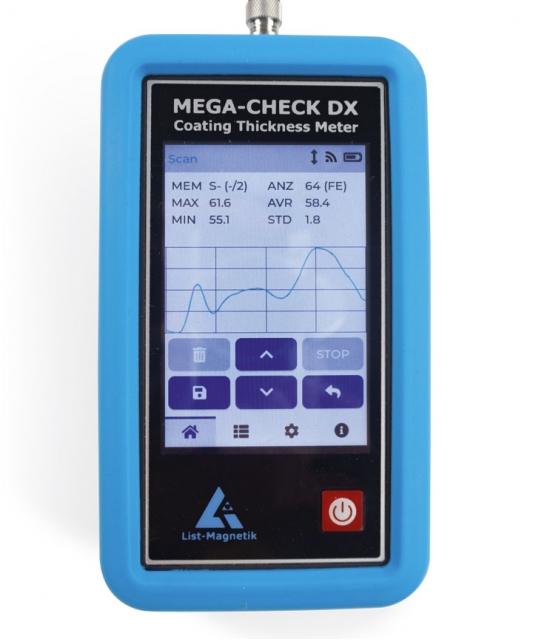

COATING THICKNESS METER LIST-MAGNETIK MEGA-CHECK DX

• Application: Depending on the selection of the probe, measurement of paint, lacquer, plastic and galvanic layers on steel, measurement of insulating layers on non-ferrous metals with automatic recognition of the base material.
• Standards: ISO 2178, ISO 2360, BS 5411, ASTM
• Measuring probe: measuring range depending on probe on steel and iron up to 30 mm (30,000 µm), on NF metals up to 2 mm (2000 µm), minimum area, minimum radius of curvature and calibration value are also depending on probe

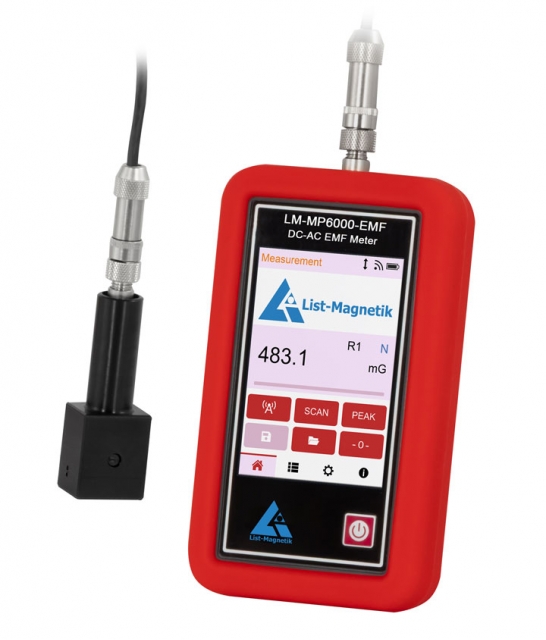

LIST-MAGNETIK LM-MP6000-EMF EMF FLUXGATE MAGNETIC FIELD METER FOR TESTING VERY WEAK MAGNETIC FIELDS ACC. IATA953

• Measuring units: mG, G, µT, mT, A/m
• Probe: Transversal fluxgate measuring probe PMF61
• Measuring range DC: 0-4 G / 0-400 µT (0.4 mT) / 0-300 A/m
• Measuring range AC: 0-3 G / 0-300 µT (0.3 mT) / 0-240 A/m effective
• Accuracy: ± 2% of measured value / ± 0.8 µT
• Resolution: 0.1 mG / 0.01 µT / 0.01 A/m
• Frequency range AC: max. 2 kHz

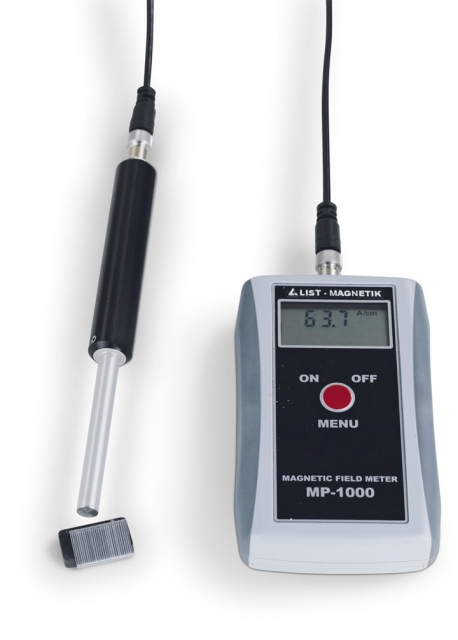

LIST-MAGNETIK MP-1000 MAGNETIC FIELD METER
