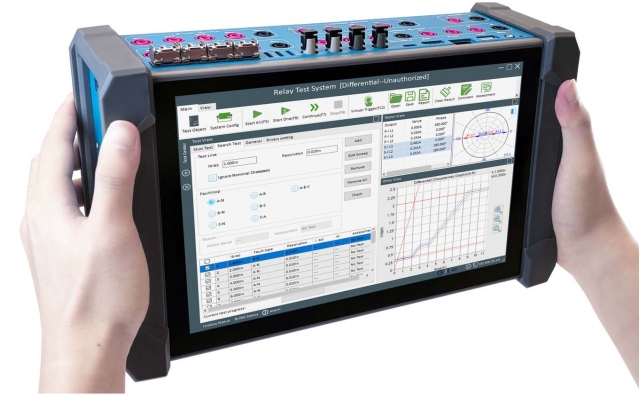

KINGSINE KFA320 Portable Protection Relay Test set according IEC61850

Code: KFA320 IEC61850 IEC-61850 KFA-320





Description

Universal Protection Relay Test Set

The Kingsine KFA320 protection relay tester has been designed with a compact interior, similar in size to an iPad, and is powered by replaceable batteries. It weighs only 3.8 kg and offers 4x300V and 6x20A outputs. Its maximum current can reach 60A, and the output power reaches 200VA/Phase.

Additionally, the Kingsine KFA320 supports IEC61850 SV/GOOSE, LPIT simulation, energy meter testing, low-level output, and transducer calibration.

Its compact design enhances engineers' work efficiency while meeting complex testing requirements.

1. The world's smallest relay tester with 10.1-inch LED touch screen, easy to carry in a iPad size, 3.8kg, high current up to 60A, can continuously output with 3x10A conditions.

2. Extremely simple design for its internal structure, ensure high quality and reliability.

3. Innovative "Plug and Play” technology enable after-sales service very easy and efficient within 20 working days.

4. Class 0.05 High precision output, can be used as a standard source.

5. Main Functions:

Fully function KRT software for test management, graphical test modules, template organized, Xrio/Rio import/export, testing result review, auto result assessment and report generate, etc.

Transient play back up to 3KHz

3x100 + 1x1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations

Inbuilt GPS , IRIG-B and IEEE-1588 synchronized end-to-end testing capability

4 binary input, dry contacts or 9-300V potential contacts capability; 2 fast + 2 relay binary outputs.

Anti-clipping detect, wrong wiring connect alarm and self-protect, overload and overheat protection

2x47.52Wh in-built battery, convenient for both air check and travel.

3-Year free warranty and life-long maintenance

Free software upgrade

6. Learn more about the testing software designed for user-friendliness, multifunctional, and cost-effectiveness.

7. Stay ready for any test with our waterproof All-in-one Bag, designed for engineers to carry KFA series mini testers, cable packs, laptops, and tools—engineered for mobility.





Key Points
Innovative "Plug and Play" After-sales Service Advantages:
 ▪    Simple structure, beginners can achieve independent installation.
 ▪    Reduced after-sales costs.
 ▪    Shortened after-sales time.
 ▪    Goal: Complete after-sales within 20 working days.

The Kingsine KFA320 handheld mini protection relay test set utilizes innovative technology, module design, and a simple internal structure, ensuring a higher level of product quality and providing assurance for a three-year warranty commitment. Besides, it also contributes to achieving the quality objective of a 15-year product service life. For after-sales maintenance, only module replacement is required, and there is no need for accuracy calibration after module replacement. Once assembly is complete, it can be used directly, truly achieving "Plug and Play".


Type of Relays Can Be Tested


Items   ANSI® No.
IEC61850 numerical IEDs relay & merge unit
Distance protection relay21
Synchronising or synchronism-check relays25
Undervoltage relays27
Directional Power relays32
Undercurrent or underpower relays37
Negative sequence overcurrent relays46
Overcurrent/ground fault relays50
Inverse time overcurrent/ground fault relays51
Power factor relays55
Overvoltage relays59
Voltage or current balance relays60
Directional overcurrent relays67
Directional ground fault relays67N
DC overcurrent relays76
Phase-angle measuring or out-of-step protection relays        78
Automatic reclosing devices79
Frequency relays81
Motor overload protection relays86
Differential protection relays87
Directional voltage relays91
Voltage and power directional relays92
Tripping relays94
Voltage regulating relays
Overimpedance relays, Z>
Underimpedance relays, Z
Time-delay relays


video Youtube KINGSINE KFA320




Video Hardware si Software KINGSINE KFA320








More products KINGSINE

KINGSINE KFA320 PORTABLE PROTECTION RELAY TEST SET ACCORDING IEC61850

• offers 4x300V and 6x20A outputs
• Its maximum current can reach 60A, and the output power reaches 200VA/Phase
• supports IEC61850 SV/GOOSE, LPIT simulation, energy meter testing, low-level output, and transducer calibration
• The world's smallest relay tester with 10.1-inch LED touch screen, easy to carry in a iPad size, 3.8kg
• Fiber port for IEC61850 SMV and GOOSE simulations

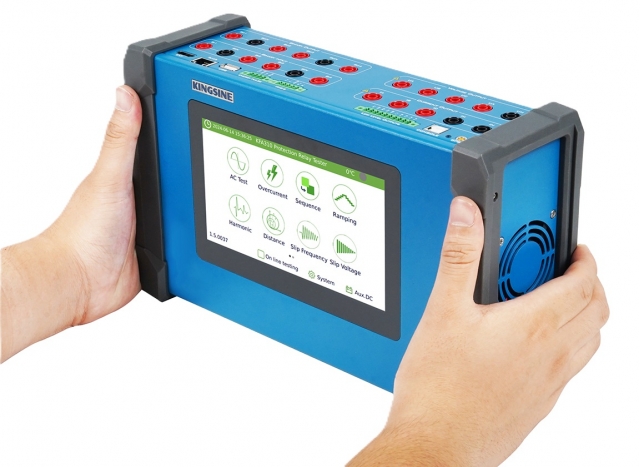

KINGSINE KFA310 PORTABLE HANDHELD PROTECTION RELAY TESTER 203091

• High-power, High-precision, Multi-functional
• weighs only 3.7 kg
• offers 4x300V and 3x20A outputs
• maximum current can reach 50A
• the output power reaches 130VA


THREE-PHASE AC/DC HARMONIC POWER SOURCE 750V/ 25A KINGSINE KS813

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• 0.05 Accuracy KS813
• 0.1 Accuracy KS813B


THREE-PHASE AC HARMONIC POWER SOURCE 0.05 CLASS 750V/ 25A KINGSINE KS803

• 3-Phase AC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Accuracy: 0.05


THREE-PHASE PORTABLE REFERENCE ENERGY STANDARD 0.05% ACCURACY KINGSINE KS706

• Single/three-phase active/reactive meter calibration
• Three-phase active/reactive KWh meter calibration
• Able to measure current, voltage, frequency, phase, power, energy
• Harmonic analysis
• CT & PT ratio & secondary load measurement
• Able to recognize 96 kinds of wrong connections of 3P4W & 98 kinds of wrong connections of 3P3W
• Apply in the electric power & inspection department
• Colorful LCD: 6.4 inch, resolution 640X480


THREE-PHASE AC/DC POWER SOURCE & METER CALIBRATOR KINGSINE KS823/ KS823B

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Indicating Meter Test
• 0.05 Accuracy KS823
• 0.1 Accuracy KS823B


PROTECTIVE RELAYS TEST SET KINGSINE K30/ K30L

• Unique self-protection system
• Unique power switch and amplifier technology
• Two in one of meter and source, with function of both internal and external testing, self-calibration, oscillograph

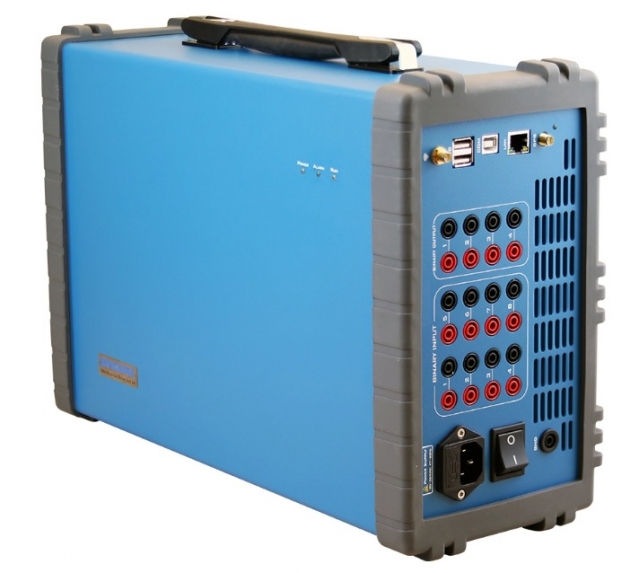

KINGSINE KF85P RELAY PROTECTION TESTER
