	KS803	KS813	KS823	KS833
AC Standard Sources	?	?	?	?
DC Standard Sources	?	?	?	?
Harmonic Standard Sources	?	?	?	?
Indicator Test	?	?	?	?
Transmitter Test	?	?	?	?
Energy Meter Test	?	?	?	?

3-Phase AC Standard Source 750V / 25A
Harmonic Standard Source 2..31
Indicating Meter Test
Transducer Calibration
Energy Meter Calibration

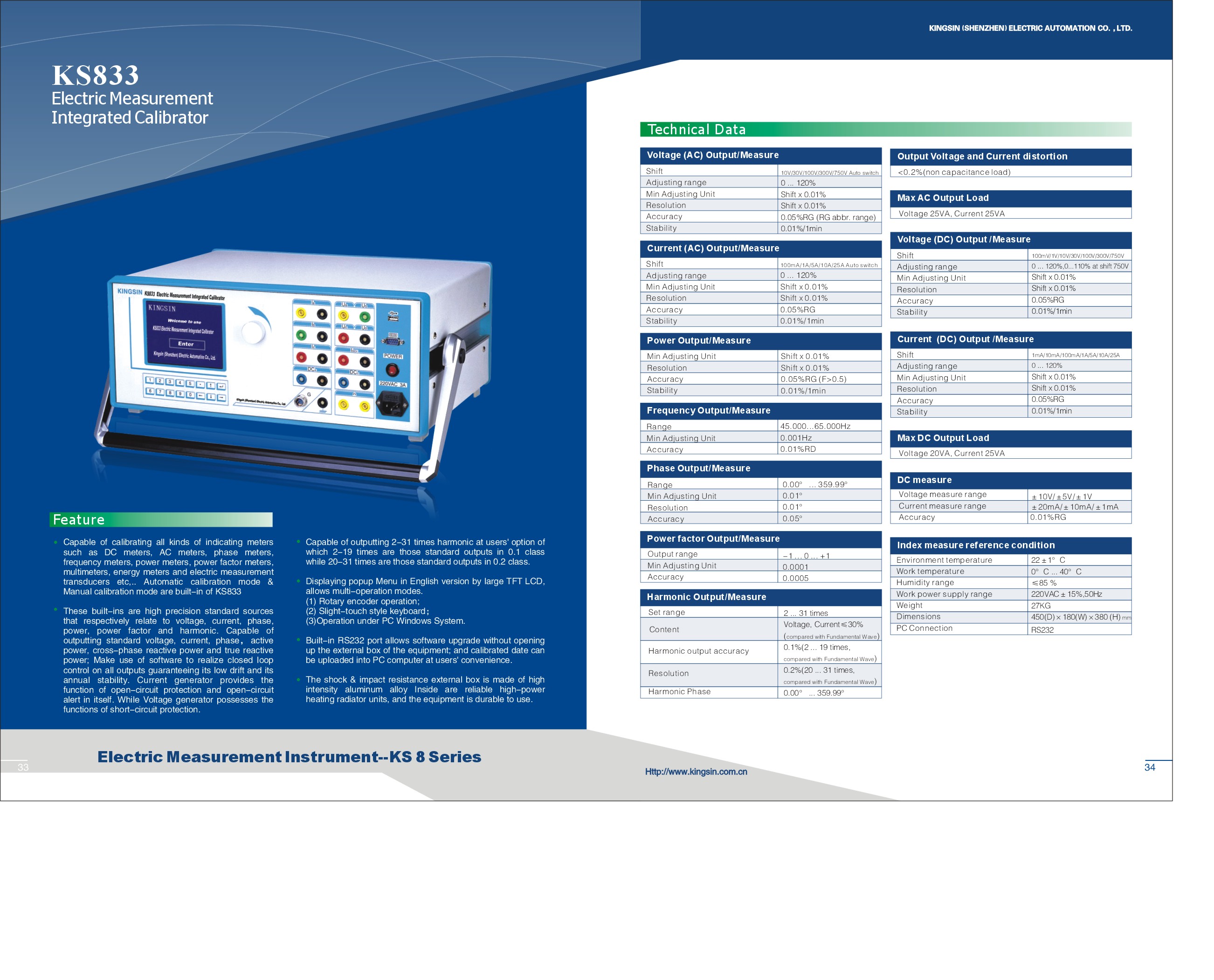

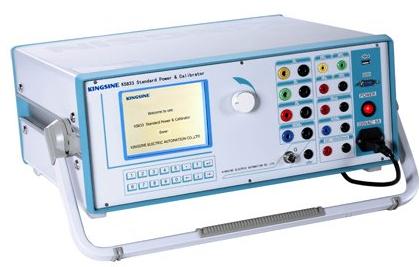

0.05 Accuracy KS833
0.1 Accuracy KS833B

Capable of calibrating all kinds of indicating instruments such as DC meters,AC meters, phase meters, frequency meters, power meters, power factor meters, multimeters, energy meters and electric measurement transducers, etc
Automatic calibration mode and manual calibration mode are built-in of KS833.
These built-ins are high precision standard sources that respectively relate to voltage, current, phase, power factor and harmonic
Capable of outputting standard voltage, current, phase, active power, cross-phase reactive power and true reactice power, make use of software to realize closed loop control on all outputs guaranteeing its low drift and its annual stability
Current generator provides the function of open-circuit protection and open-circuit alert in itself
Can freely output 2-31 times harmonics, including: Standard output at Grade 0.1 for 2nd-19th harmonics, and satandard output of Grade 0.2 for 20th-31st harmonics.
Large LCD display, all English pop-up menus for these operations
rotary encoder operation
slight-touch keyboard operation
operation under PC Windows System
Built-in RS232 port, allows software upgrade without opening up the external box of the equipment; and calibrated data can be uploaded into PC computer at users’ convenience
The shock and impact resistance external box is made of high intensity aluminum alloy
reliable high-power heating radiator units, the equipment is durable to use

More products KINGSINE

THREE-PHASE AC/DC HARMONIC POWER SOURCE 750V/ 25A KINGSINE KS813

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• 0.05 Accuracy KS813
• 0.1 Accuracy KS813B

THREE-PHASE AC HARMONIC POWER SOURCE 0.05 CLASS 750V/ 25A KINGSINE KS803

• 3-Phase AC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Accuracy: 0.05

THREE-PHASE PORTABLE REFERENCE ENERGY STANDARD 0.05% ACCURACY KINGSINE KS706

• Single/three-phase active/reactive meter calibration
• Three-phase active/reactive KWh meter calibration
• Able to measure current, voltage, frequency, phase, power, energy
• Harmonic analysis
• CT & PT ratio & secondary load measurement
• Able to recognize 96 kinds of wrong connections of 3P4W & 98 kinds of wrong connections of 3P3W
• Apply in the electric power & inspection department
• Colorful LCD: 6.4 inch, resolution 640X480

PORTABLE PROTECTION RELAY TEST SET KINGSINE K68/ K68I

• All-in-one design relay tester with 6.4 inches LCD display
• 4 Phase AC Voltage Source and 3 phase AC current source
• Range, Phase, Frequency can be set independently
• Max AC voltage can reach 300V each phase

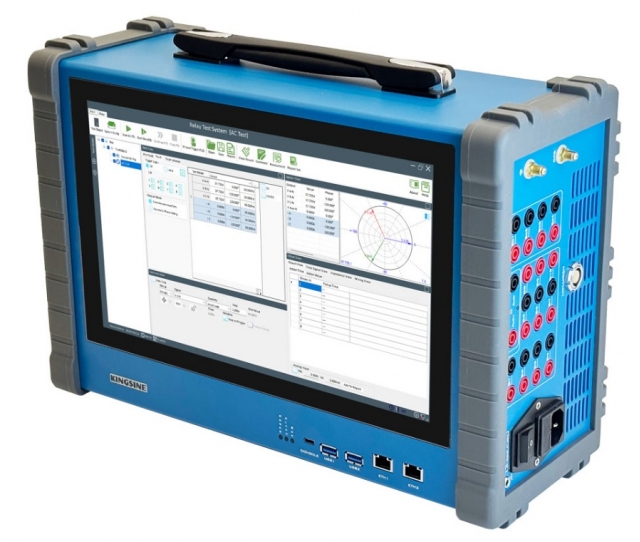

KINGSINE KF86P UNIVERSAL PORTABLE RELAY TESTER

• 6x35A@425VA max & 6x310V@105VA max analog outputs.
• 10kg weight, easy carry on flight journey.
• Low-level signals output, energy meter testing, transducer calibration, and IEC61850 testing capability for optional
• 8x100/1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations
• Inbuilt GPS and IRIG-B synchronized end-to-end testing capability

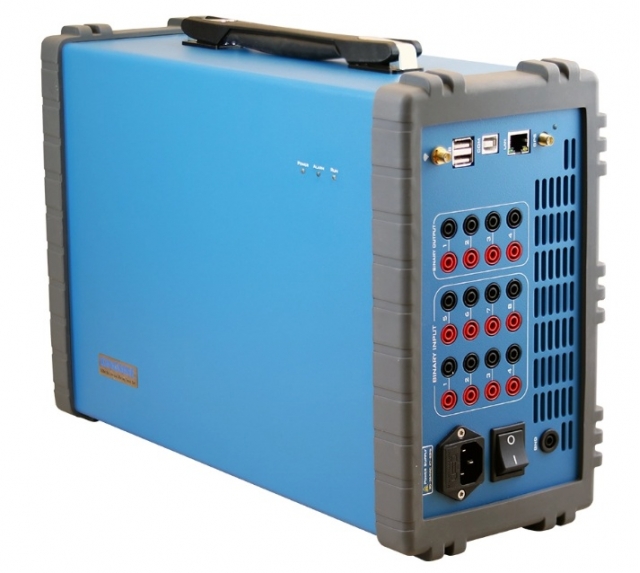

KINGSINE KF85P RELAY PROTECTION TESTER

• 6x35A@425VA max & 6x310V@105VA max analog outputs.
• 10kg weight, easy carry on flight journey.
• Low-level signals output, energy meter testing, transducer calibration and IEC61850 testing capability for optional.

THREE-PHASE AC/DC POWER SOURCE & METER CALIBRATOR KINGSINE KS823/ KS823B

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Indicating Meter Test
• 0.05 Accuracy KS823
• 0.1 Accuracy KS823B

THREE-PHASE AC HARMONIC POWER SOURCE 0.05 CLASS 750V/ 25A KINGSINE KS803

• 3-Phase AC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Accuracy: 0.05

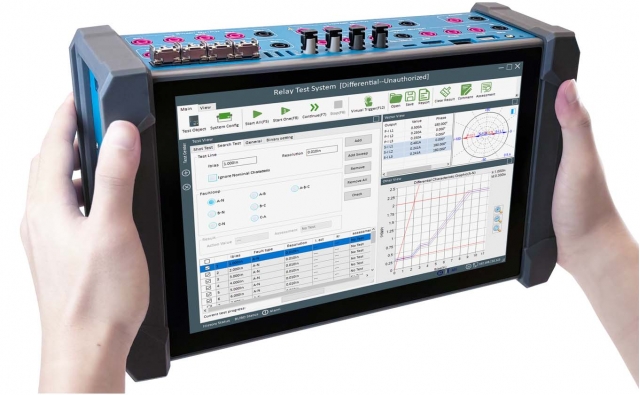

KINGSINE KFA320 PORTABLE PROTECTION RELAY TEST SET ACCORDING IEC61850

• offers 4x300V and 6x20A outputs
• Its maximum current can reach 60A, and the output power reaches 200VA/Phase
• supports IEC61850 SV/GOOSE, LPIT simulation, energy meter testing, low-level output, and transducer calibration
• The world's smallest relay tester with 10.1-inch LED touch screen, easy to carry in a iPad size, 3.8kg
• Fiber port for IEC61850 SMV and GOOSE simulations

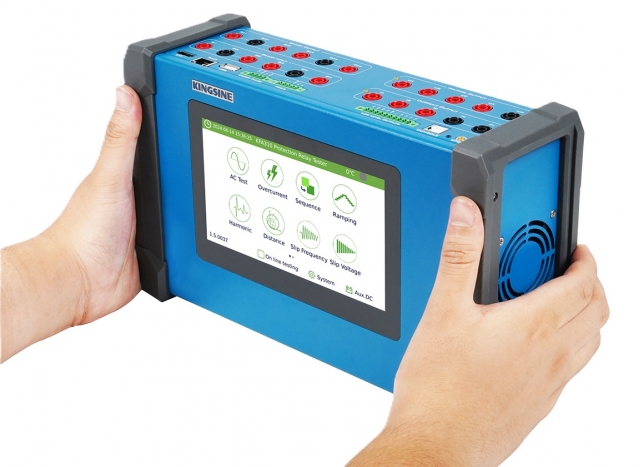

KINGSINE KFA310 PORTABLE HANDHELD PROTECTION RELAY TESTER 203091
