KINGSINE KF85P Relay Protection Tester

Code: KF85P KF-85P 203034



Datasheet PDF, 0.15 Mb
Datasheet PDF, 3.59 Mb


Description

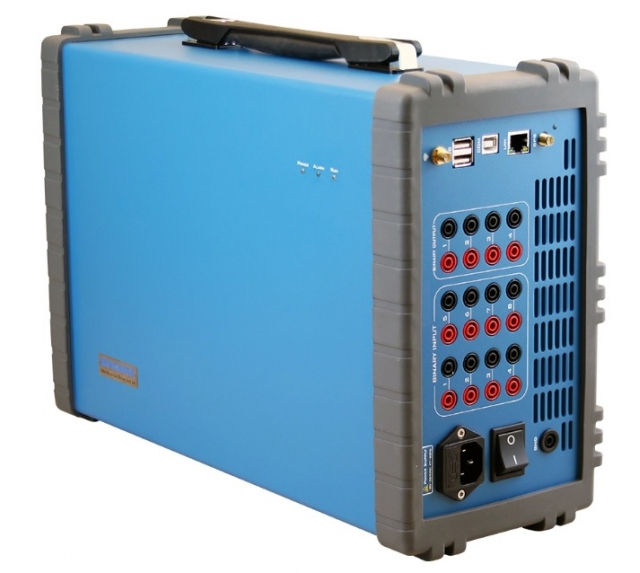

KINGSINE KF85P Universal Relay Test Set
Item No.: 203034



The world's lightest & high power universal relay test set

Available models:


KF85P(4U3I) (3 x 35A / 1 x 70A, 4 x 310V)
KF85P(4U6I) (6 x 35A / 3 x 70A, 4 x 310V)
KF85P(6U6I) (6 x 35A / 3 x 70A, 6 x 310V)


●  6x35A@425VA max & 6x310V@105VA max analog outputs.
●  10kg weight, easy carry on flight journey.
●  Low-level signals output, energy meter testing, transducer calibration and IEC61850 testing capability for optional.



Feel free to reach out for a quote on Kingsine's advanced numerical relay testing equipment!

Basic Functions
The Kingsine KF85P is a multipurpose, light-weight, field portable test set, it capable of testing a wide variety of electro-mechanical, solid state and microprocessor based protective relays, motor overload relays, IEC61850 testing, and similar protective devices.

12 Analog Channels outputs, 6x35A & 6x310V, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.

Lightweight, <10kg, easy carry on flight journey.

Variable battery simulator, 24~350Vdc, 70Watts max output. Easily supply power for most protection devices.

Fully function KRT software for test management, graphical test modules, template organized, Xrio/Rio import/export, testing result review, auto result assessment and report generate, etc.

Transient play back up to 3KHz.

8x100/1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations.

Inbuilt GPS and IRIG-B synchronized end-to-end testing capability.

10 binary input, dry contacts or 0-300V potential contacts capability; 4 fast binary outputs isolated each and with <1ms response time.

Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection.

AC 85~265 / DC 127-350 power supply, World wide range power supply compatibility.

3-Year free warranty and life-long maintenance.

Free software upgrade.



Learn more about the testing software designed for user-friendliness, multifunctional, and cost-effectiveness.


Advance Feature

Complied IEC61850 edition 1.0 & 2.0 standard.

Transducer calibration.

Energy meter calibration (Mechanical & Electronic meters).

10 Low-level analog outputs (8 Voltages + 2 Currents) up to 8V/20mA max.

Type of Relays Can Be Tested


Items   ANSI® No.
IEC61850 numerical IEDs relay & merge unit
Distance protection relay21
Synchronising or synchronism-check relays25
Undervoltage relays27
Directional Power relays32
Undercurrent or underpower relays37
Negative sequence overcurrent relays46
Overcurrent/ground fault relays50
Inverse time overcurrent/ground fault relays51
Power factor relays55
Overvoltage relays59
Voltage or current balance relays60
Directional overcurrent relays67
Directional ground fault relays67N
DC overcurrent relays76
Phase-angle measuring or out-of-step protection relays        78
Automatic reclosing devices79
Frequency relays81
Motor overload protection relays86
Differential protection relays87
Directional voltage relays91
Voltage and power directional relays92
Tripping relays94
Voltage regulating relays
Overimpedance relays, Z>
Underimpedance relays, Z
Time-delay relays




Recommended options

(Optional modules)

IEC61850 Functions:

Fully complying IEC61850 Sampling value and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8).

Able to simultaneously output sampling value and analog signals, or subscriber and publish GOOSE message and relay contact binary I/O function.

Up to 36 sampling value channels can be mapped.


More products KINGSINE

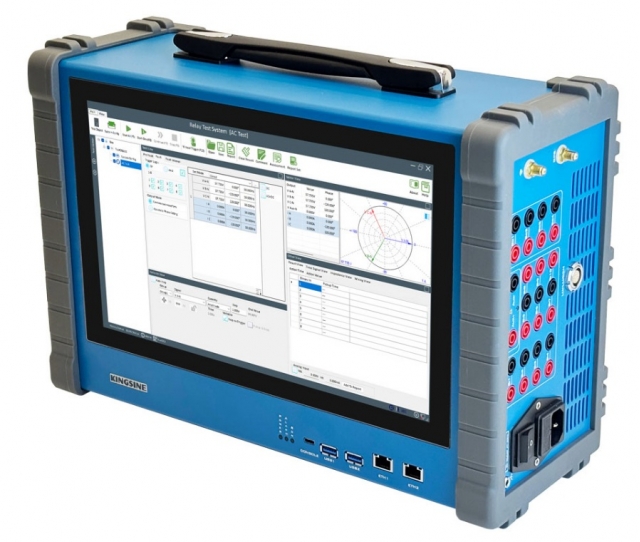

KINGSINE KF86P UNIVERSAL PORTABLE RELAY TESTER
