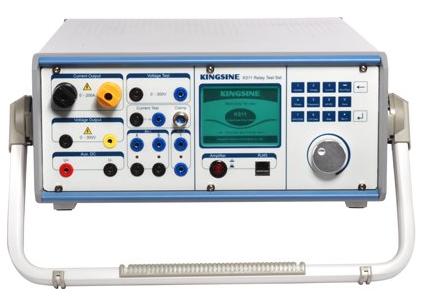

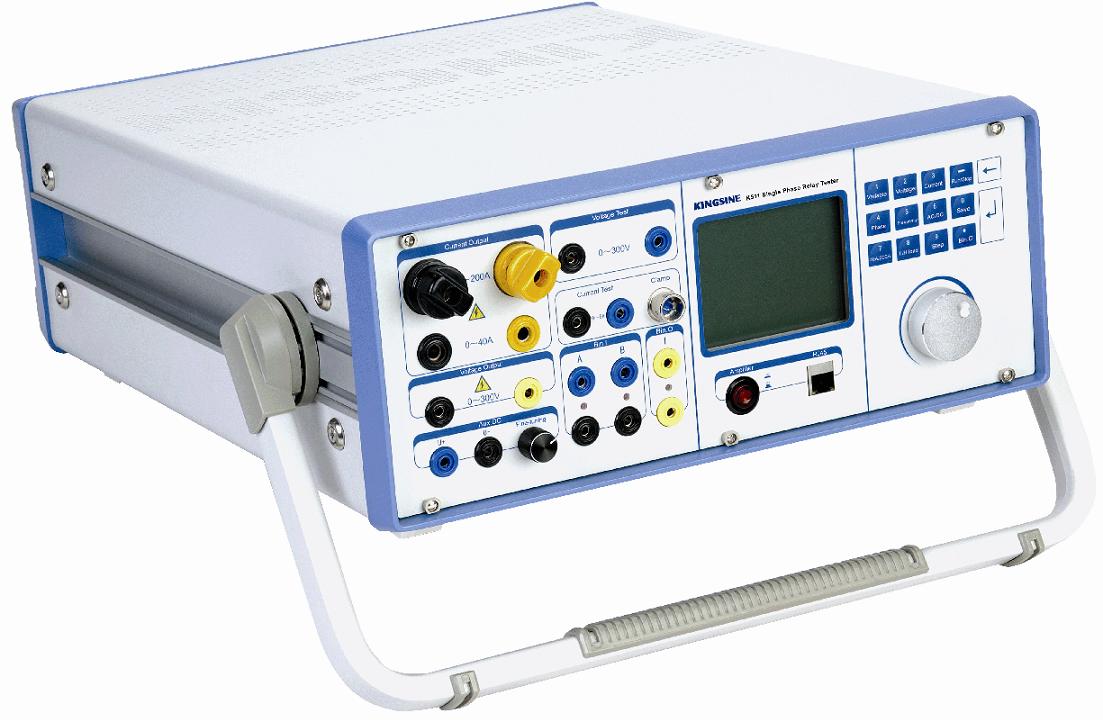

Single Phase Protection Relay Testeremax.1200VA 300V 200A Kingsine K511

Code: Kingsine K511

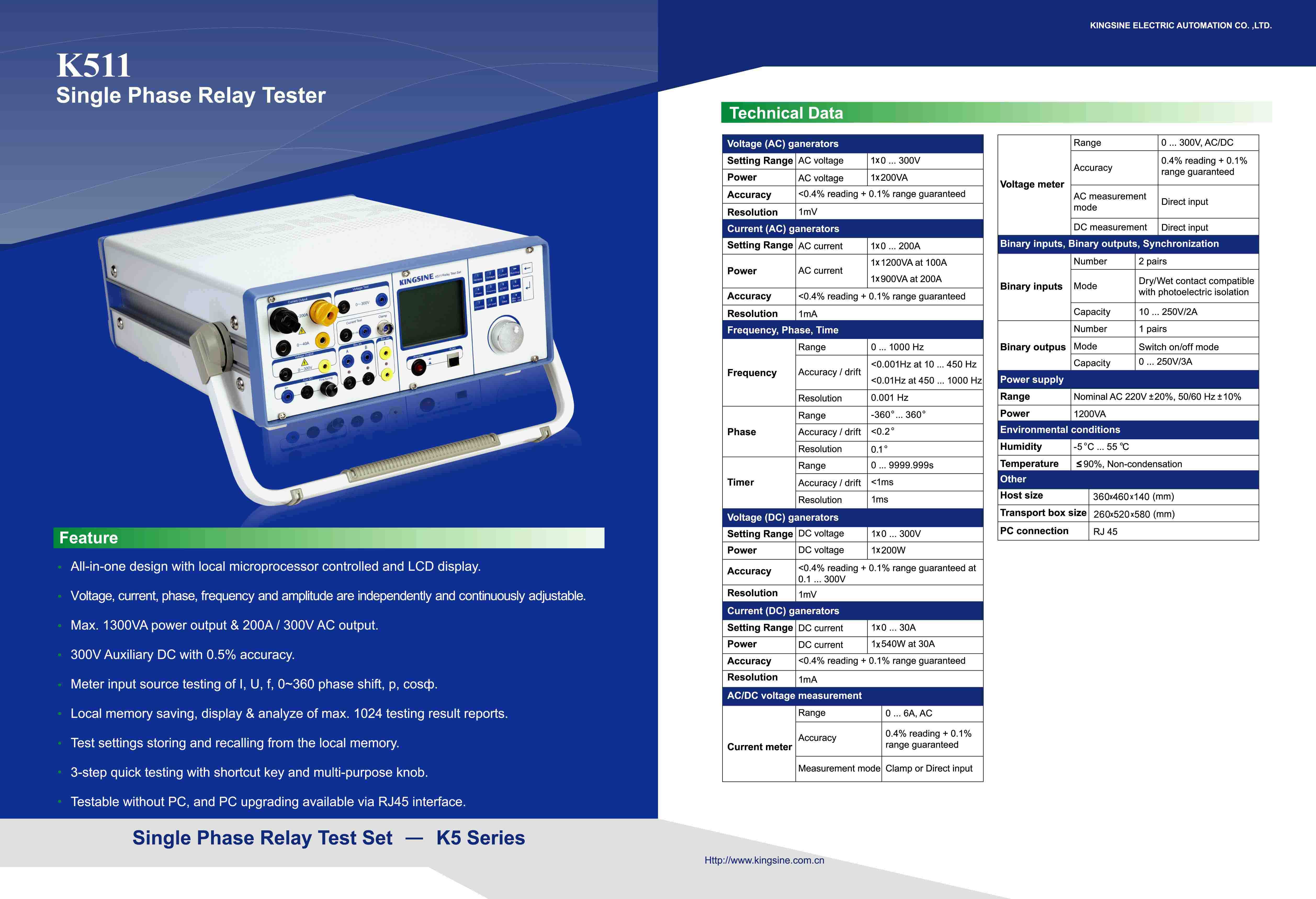

Datasheet JPG, 0.65 Mb


Description

Software Features:

  • Able to test AC/DC relay
  • Able to test zero-sequence over-current of low voltage line protective relay
  • Shortcut key setting
  • Save the test report automatically (max. 1024)
  • Upload test report to PC to edit and print



Hardware Features:

  • All-in-one design with LCD display
  • Adopt DSP control to ensure the system more reliable
  • Max. AC output 200A, Max. power output 1200VA
  • Supply independent and adjustable Auxiliary DC source(0-300V / 0.6A)
  • Matches different types of clamping meter to test higher current (max. 1000A)
  • Passed EMC test


More products KINGSINE

SINGLE PHASE PROTECTION RELAY TESTEREMAX.1200VA 300V 200A KINGSINE K511

• All-in-one design with LCD display
• Adopt DSP control to ensure the system more reliable
• Max. AC output 200A, Max. power output 1200VA
• Save the test report automatically (max. 1024)


PORTABLE PROTECTION RELAY TEST SET KINGSINE K68/ K68I

• All-in-one design relay tester with 6.4 inches LCD display
• 4 Phase AC Voltage Source and 3 phase AC current source
• Range, Phase, Frequency can be set independently
• Max AC voltage can reach 300V each phase


THREE-PHASE AC HARMONIC POWER SOURCE 0.05 CLASS 750V/ 25A KINGSINE KS803

• 3-Phase AC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Accuracy: 0.05

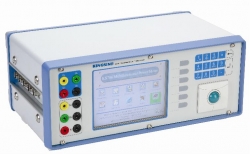

THREE-PHASE PORTABLE REFERENCE ENERGY STANDARD 0.05% ACCURACY KINGSINE KS706

• Single/three-phase active/reactive meter calibration
• Three-phase active/reactive KWh meter calibration
• Able to measure current, voltage, frequency, phase, power, energy
• Harmonic analysis
• CT & PT ratio & secondary load measurement
• Able to recognize 96 kinds of wrong connections of 3P4W & 98 kinds of wrong connections of 3P3W
• Apply in the electric power & inspection department
• Colorful LCD: 6.4 inch, resolution 640X480


PROTECTIVE RELAYS TEST SET KINGSINE K30/ K30L

• Unique self-protection system
• Unique power switch and amplifier technology
• Two in one of meter and source, with function of both internal and external testing, self-calibration, oscillograph


THREE-PHASE AC/DC HARMONIC POWER SOURCE 750V/ 25A KINGSINE KS813

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• 0.05 Accuracy KS813
• 0.1 Accuracy KS813B


CT/PT CURRENT TRANSFORMER ANALYZER WITH VOLT-AMPER CHARACTERISTIC AND TURN-RATIO TESTING KINGSINE KT200

• modularization design and plug-in frame
• TFT LCD display screen with clear and beautiful software interface design
• AC/DC current input for wide range
• up to 30kV transformer
• PT Test


THREE-PHASE AC/DC HARMONIC POWER SOURCE 750V/ 25A KINGSINE KS813

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• 0.05 Accuracy KS813
• 0.1 Accuracy KS813B

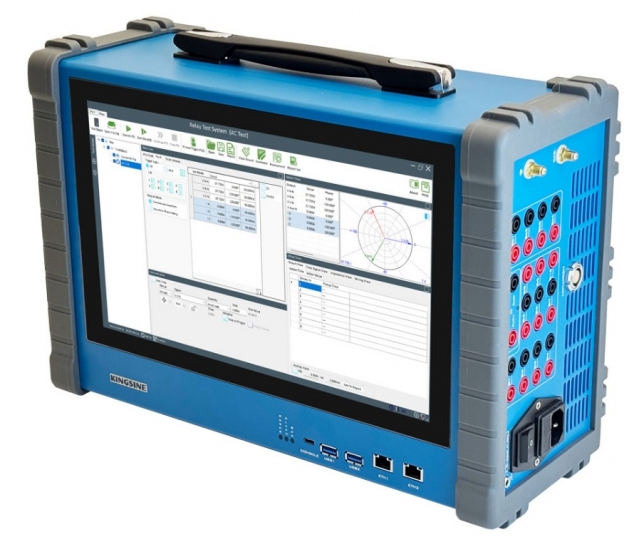

KINGSINE KF86P UNIVERSAL PORTABLE RELAY TESTER
